Xishun TNS/SBW Series Three-Phase High Power Compensated Regulators Voltage Regulator

✅ Three sets of independent pure copper voltage-regulating windings, with separate adjustment for each phase, to address three-phase voltage imbalance in the power grid
✅ Servo motor-driven carbon brush voltage regulation mechanism ensures smooth voltage adjustment, preventing surge damage to downstream precision equipment
✅ Compact, vertical sheet-metal enclosure equipped with casters at the base, allowing for flexible and convenient relocation and on-site setup

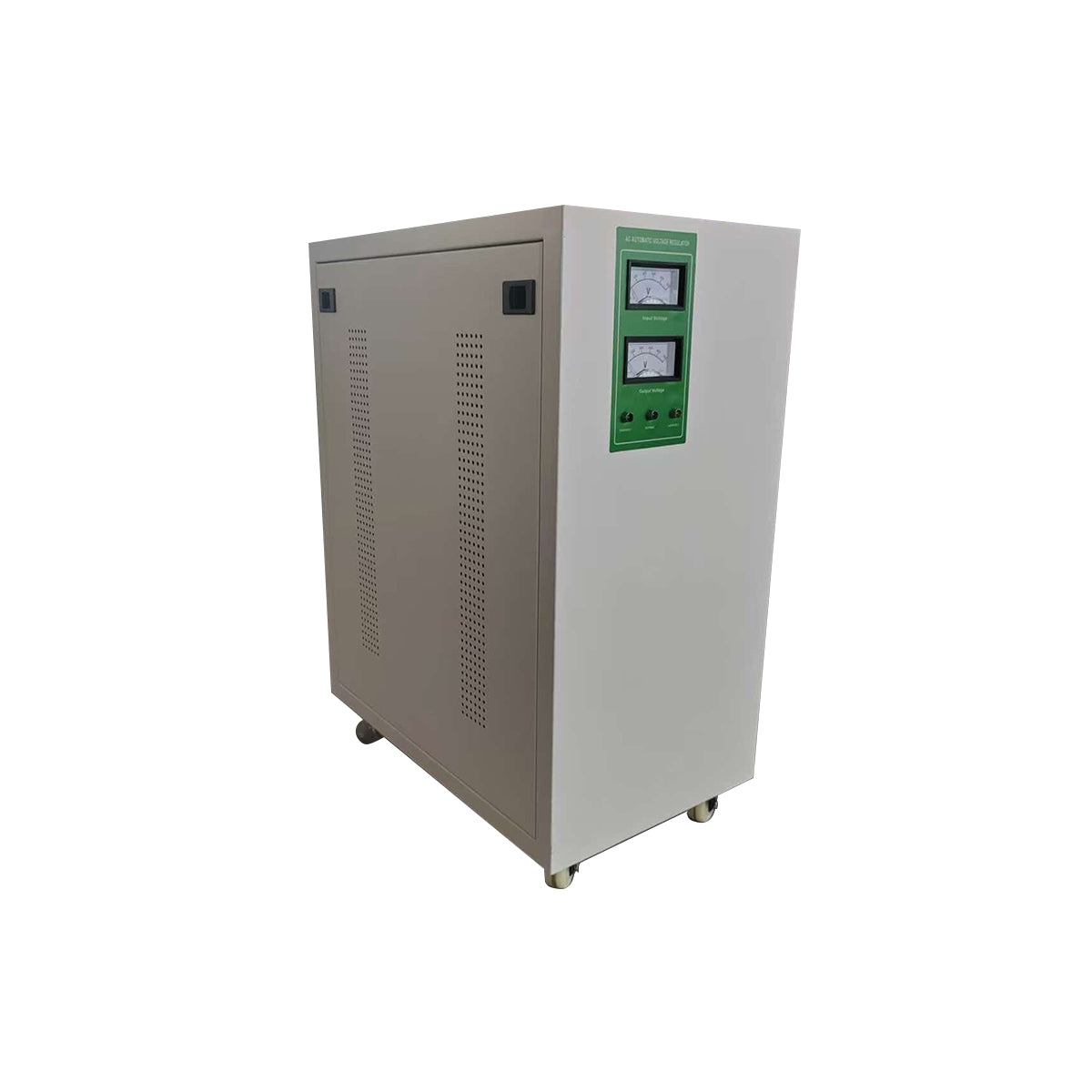

✅ Control panel features independent three-phase voltage meters for real-time, intuitive monitoring of the power supply status for each phase
✅ Comprehensive multi-level electrical protection system that rapidly safeguards core components—such as lasers and servo motors—in the event of power grid abnormalities

Model: TNS-40KVA

Rated capacity: 40 kVA; three-phase, four-wire power supply configuration
Input voltage range: 280 V to 430 V; standard three-phase output: 380 V
Voltage regulation accuracy: ≤±2.5%; supports both 50 Hz and 60 Hz utility frequencies
Overall operating efficiency ≥95%; voltage drop response ≤1 second under a 10% voltage fluctuation
Equipped with three independent voltage regulation circuits; built-in overvoltage, undervoltage, overload, and phase loss protection

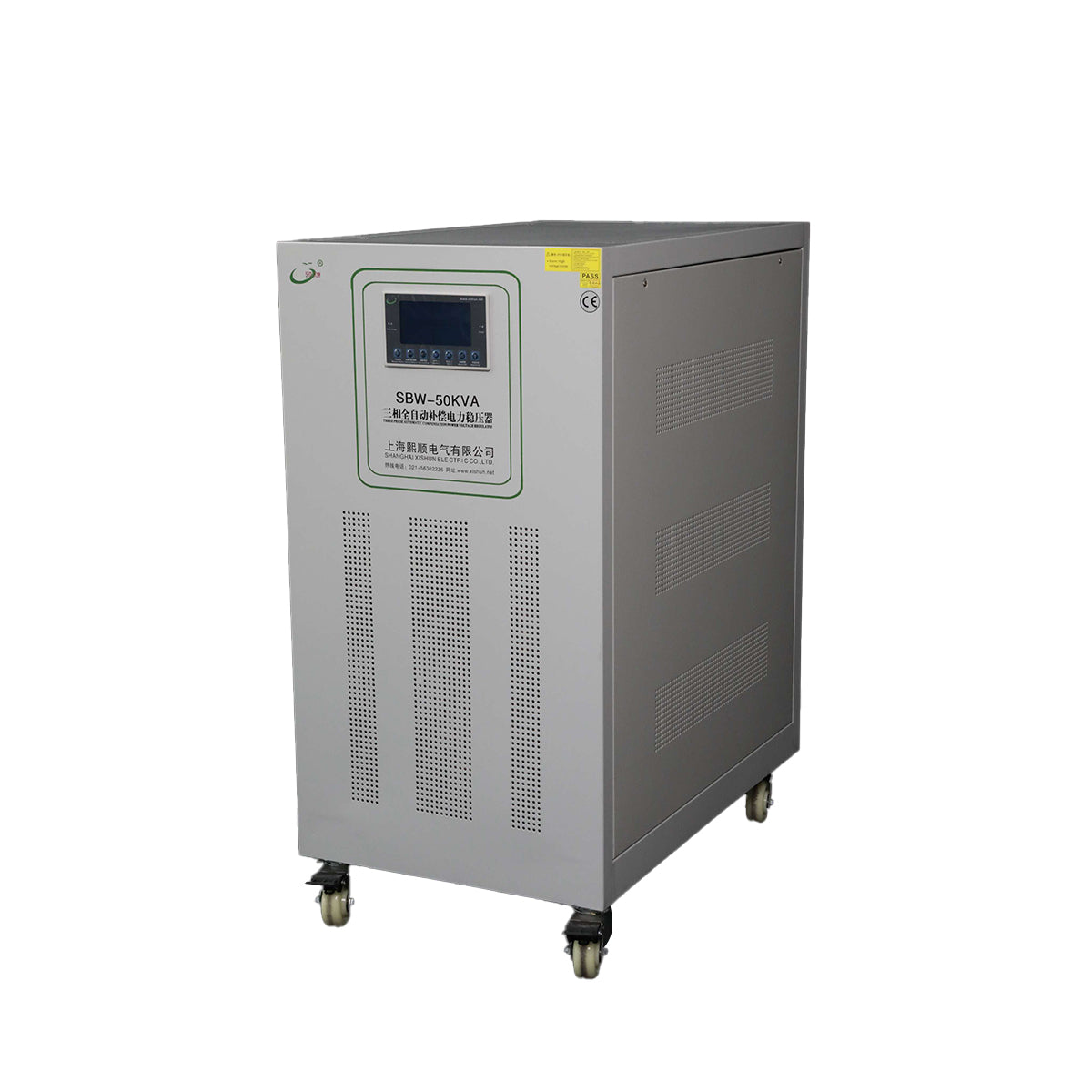

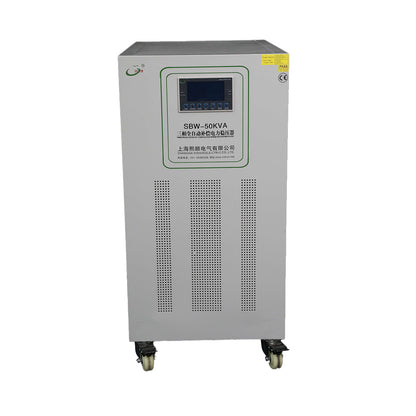

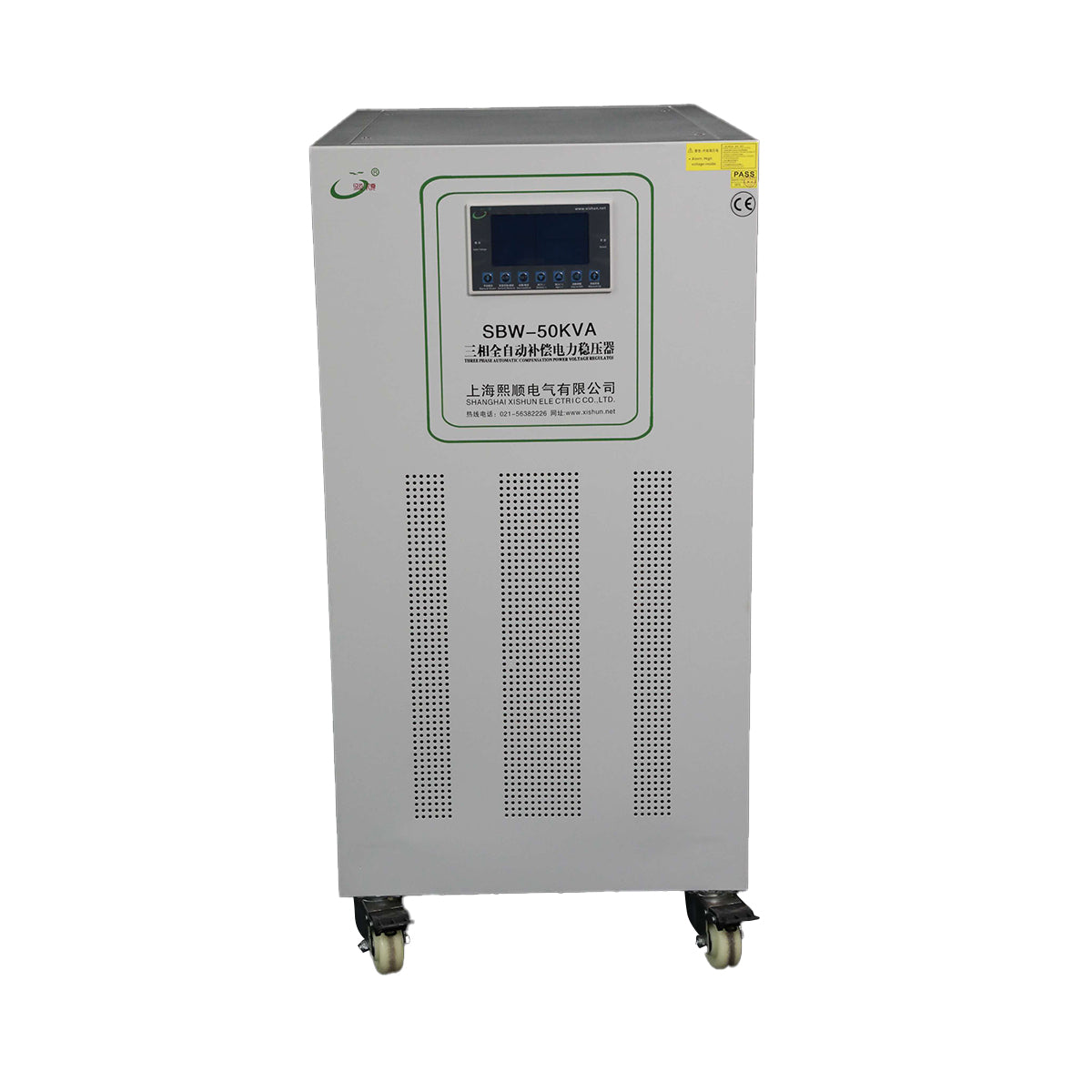

Model: SBW-50KVA

Rated capacity: 50 kVA; three-phase, four-wire power supply system
Input voltage range: 304 V to 456 V (380 V ± 20%)
Standard stabilized three-phase output: 380 V; voltage regulation accuracy: adjustable from 1% to 5%
Applicable power frequency: 50 Hz/60 Hz; overall operating efficiency: ≥98%
Equipped with multiple electrical protection circuits for overvoltage, undervoltage, phase loss, and overload
Voltage regulation response time ≤ 1.5 seconds under 10% voltage fluctuation conditions

Model: TNS-60KVA

Three-phase, four-wire power supply system; standard input voltage range: 280 V to 430 V
Stable three-phase 380 V output; voltage regulation accuracy ≤ ±2.5%
Compatible with 50 Hz/60 Hz utility frequencies; overall operating efficiency ≥95%
Under grid voltage fluctuations of 10%, voltage regulation response time ≤1 second
Built-in integrated protection circuit for overvoltage, undervoltage, overload, and short-circuit protection

Model: SBW-80KVA

Three-phase, four-wire input configuration; input voltage range: 304 V to 456 V (380 V ± 20%)
Standard stabilized three-phase 380 V output; voltage regulation accuracy adjustable within the range of 1% to 5%
Compatible with both 50 Hz and 60 Hz utility frequencies; overall operating efficiency ≥ 98%
Under grid voltage fluctuations of 10%, voltage regulation response time is ≤1.5 seconds
Built-in multiple protection features, including integrated overvoltage, undervoltage, phase loss, and overload alarm and shutdown functions

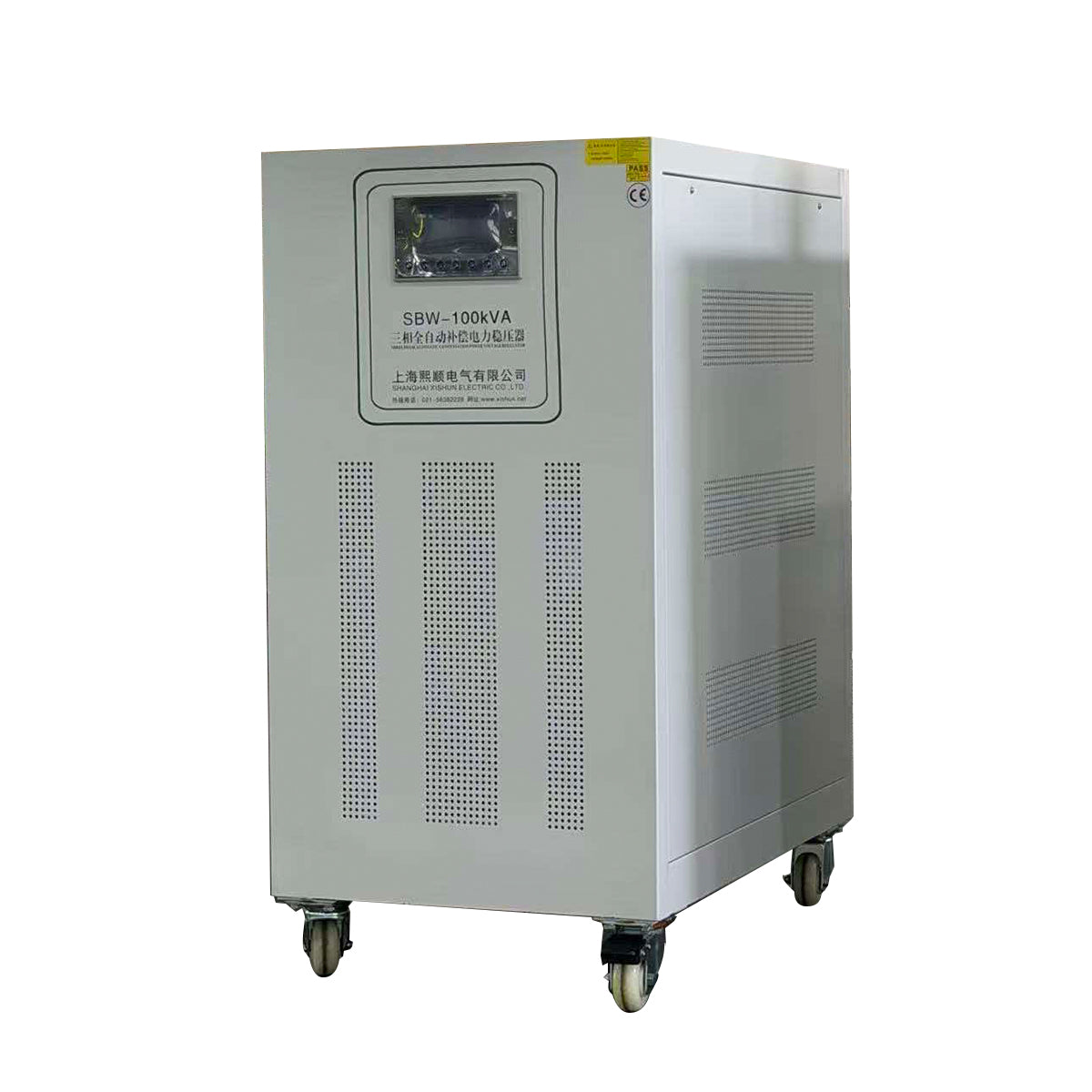

Model: SBW-100KVA

Three-phase, four-wire input configuration; input voltage range: 304 V to 456 V (380 V ±20%)
Standard three-phase output: 380 V; voltage regulation accuracy adjustable within the range of 1% to 5%
Supports power frequencies of 50 Hz and 60 Hz; overall operating efficiency ≥98%
Under 10% voltage fluctuation conditions, voltage regulation response time ≤ 1.5 seconds
Built-in multiple protection features, including integrated overvoltage, undervoltage, phase loss, and overload protection
