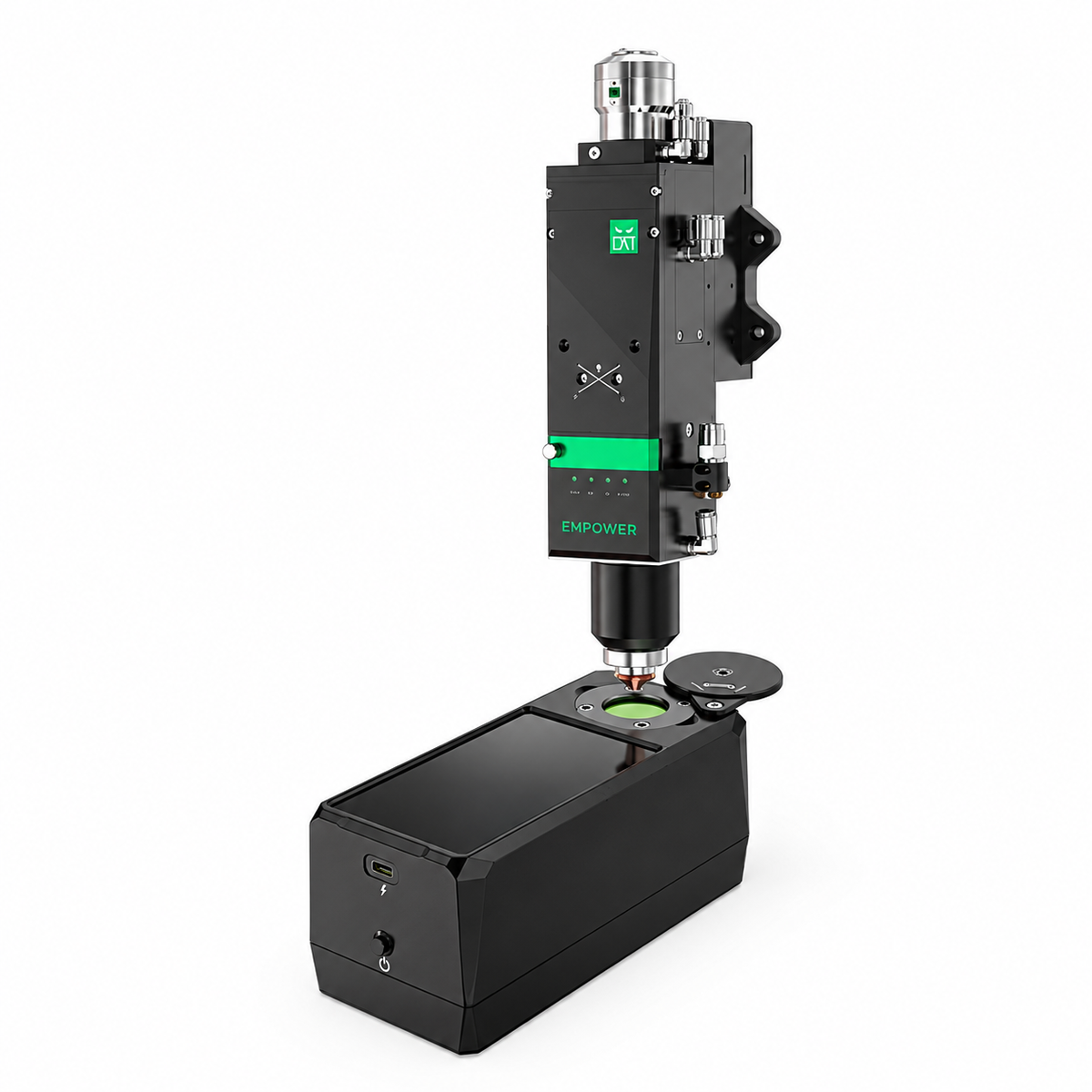

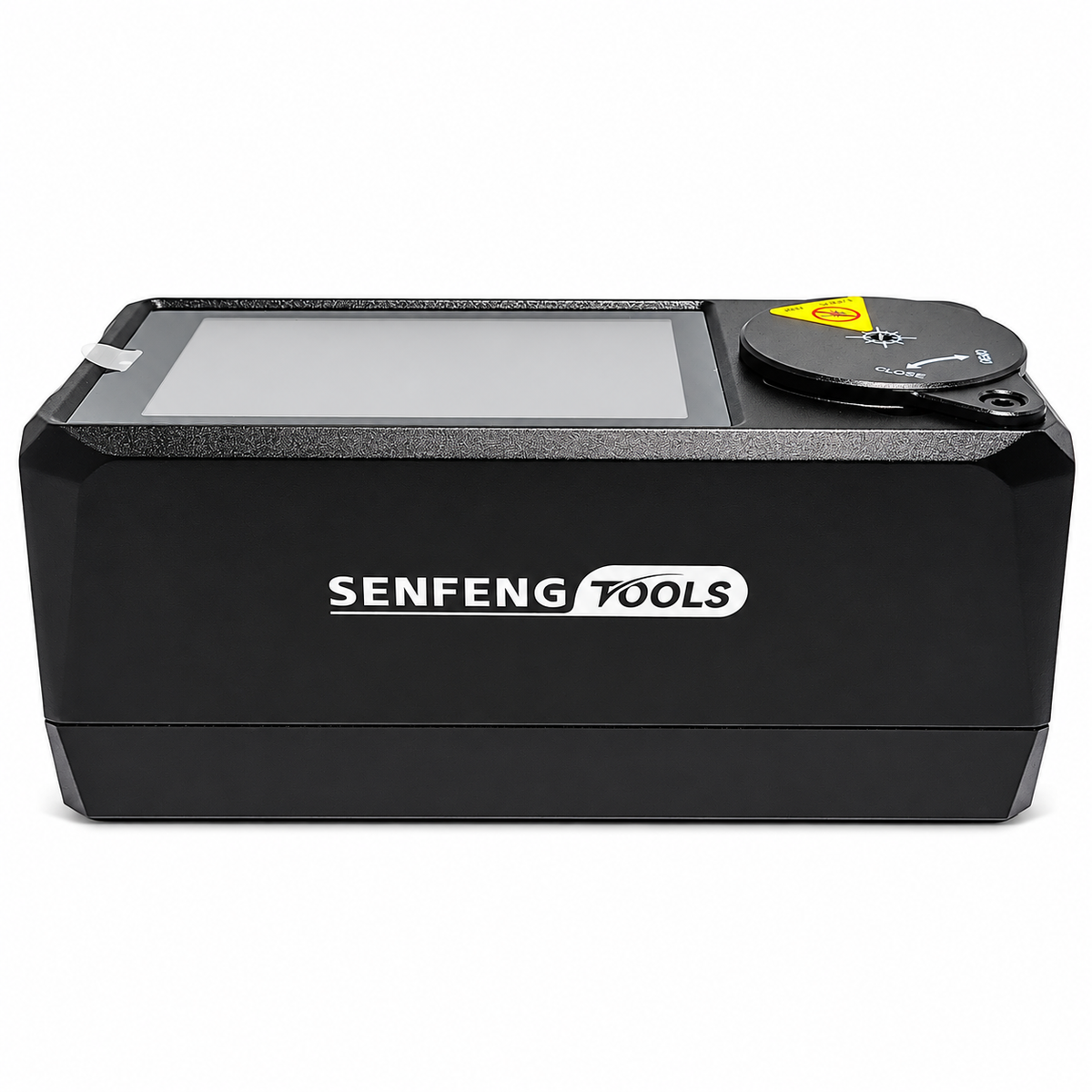

SoloEye S1 Laser Beam Alignment Tool — Nozzle Centring Device for Fibre Laser Cutting Heads

SoloEye S1 Laser Beam Alignment Tool — Nozzle Centring Device for Fibre Laser Cutting Heads

Regular price $959.00
Regular price Sale price $959.00
Sale Sold out
Free Shipping
Quantity

Features:

• Stable All-in-One Design — Built-in design eliminates signal lag and connection drops for stable, reliable tracking performance.

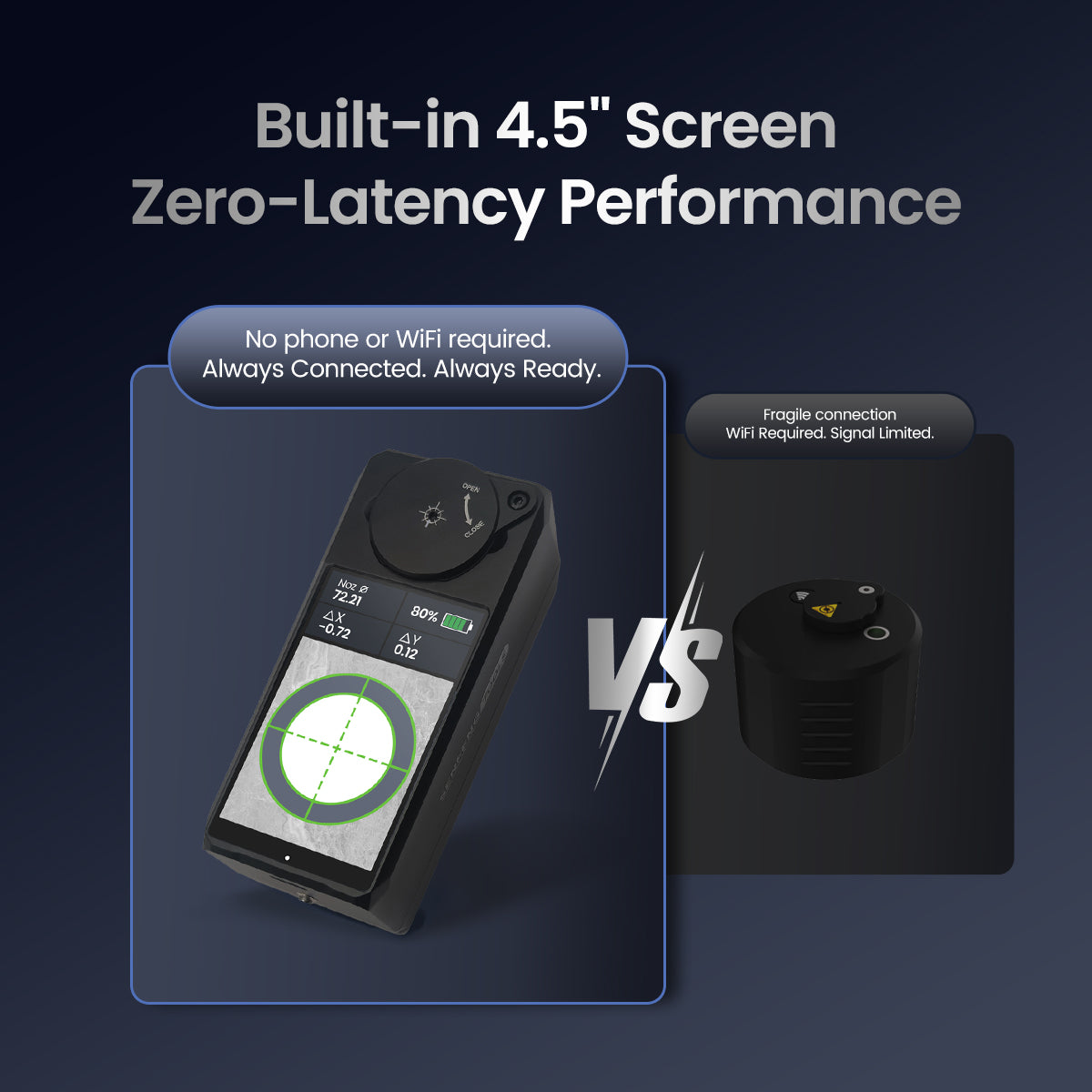

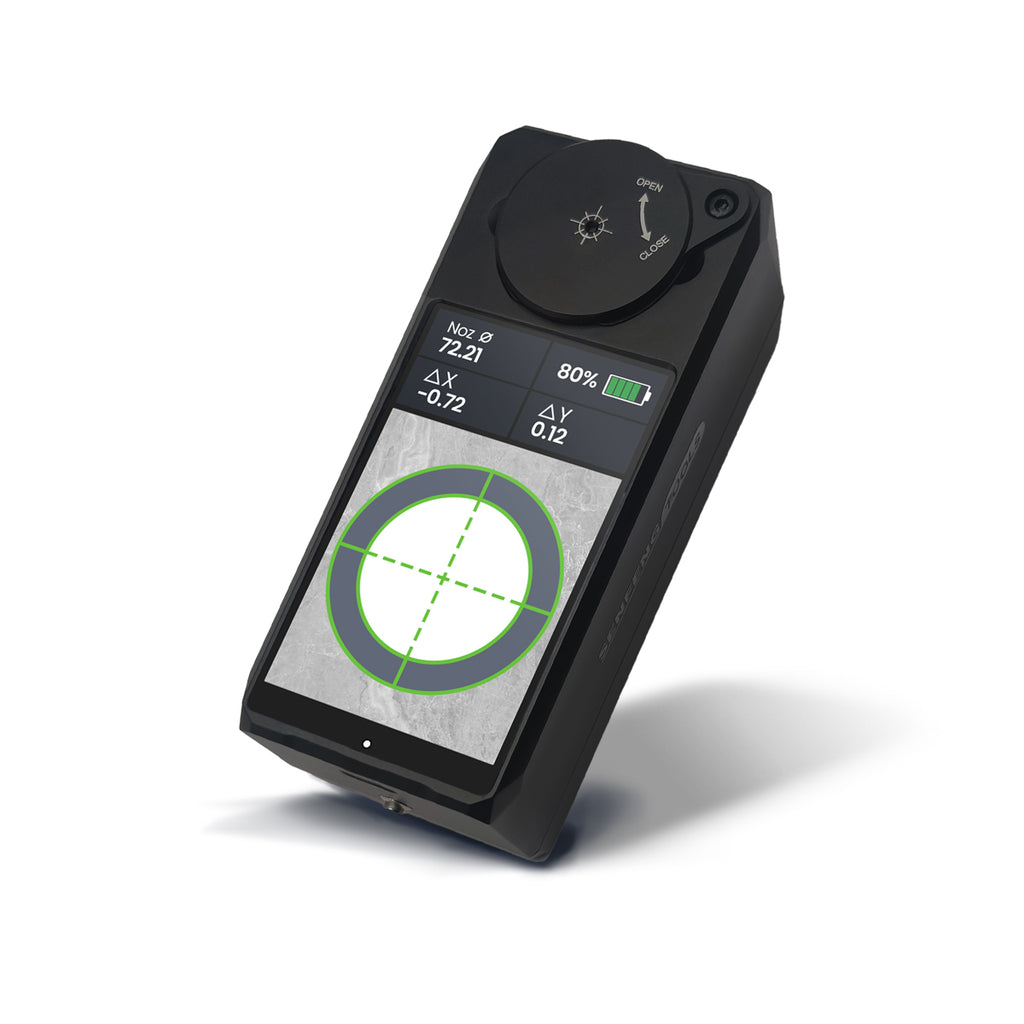

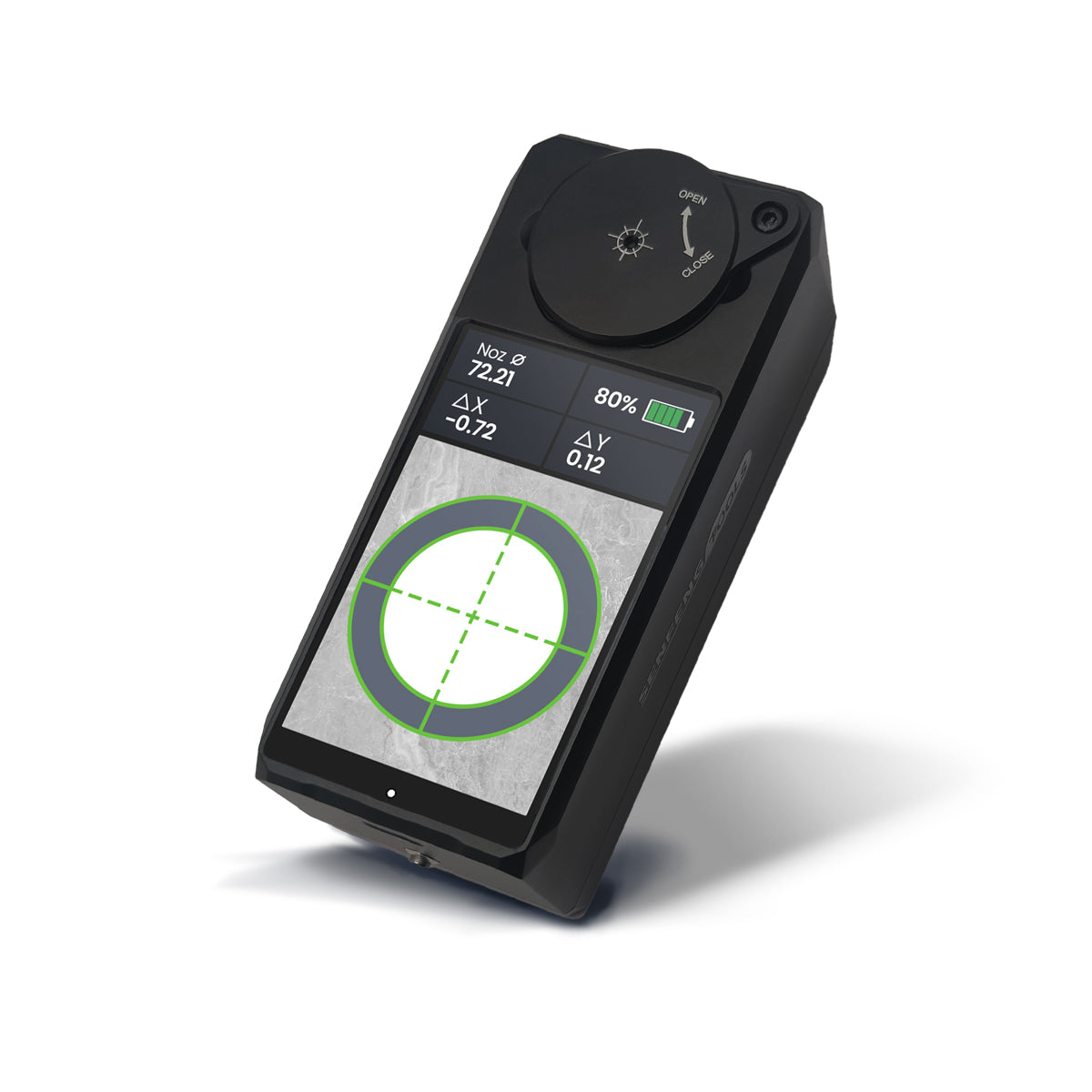

• Simple Plug-and-Play Operation — The integrated 4.5" HD screen provides an intuitive interface with no apps or complicated setup required.

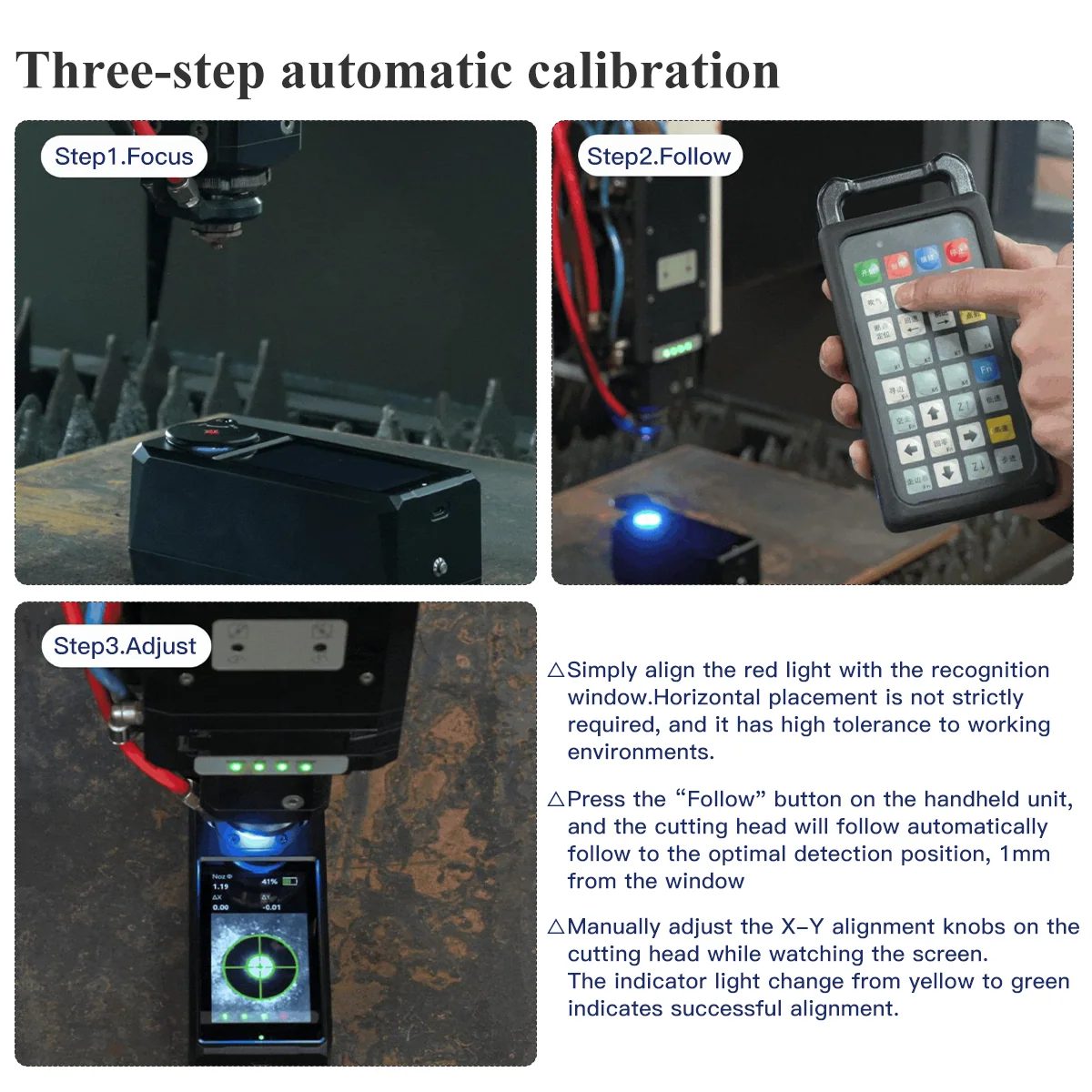

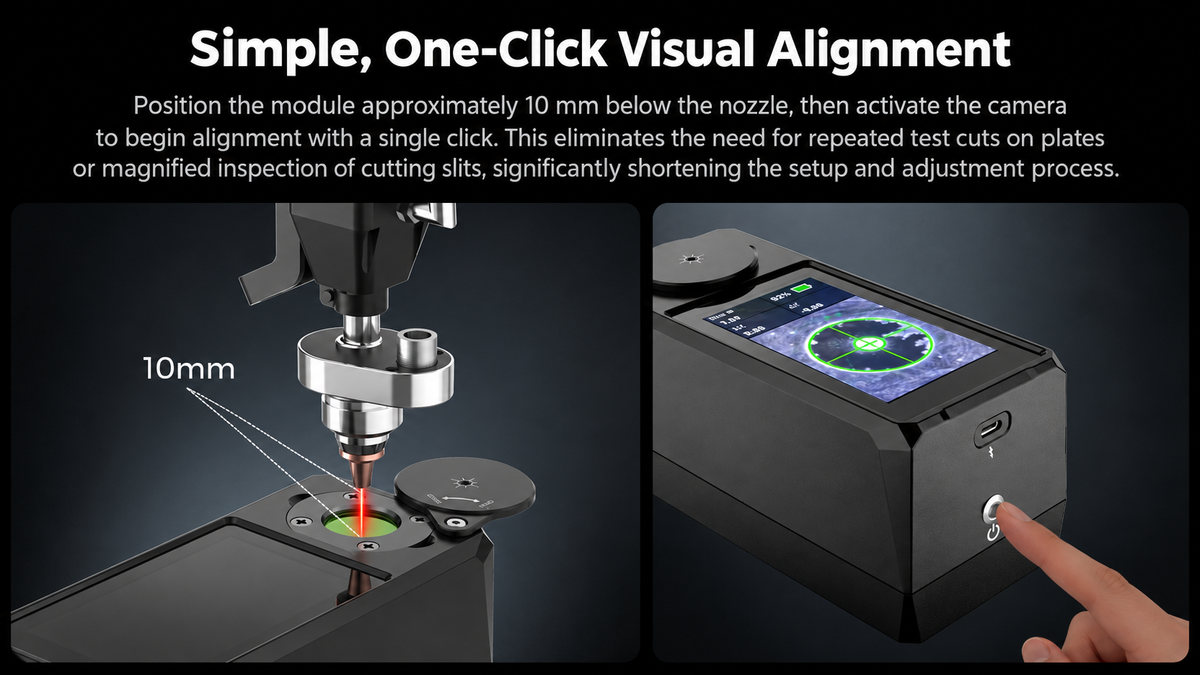

• Smart One-Click Auto Tracking — Automatically recognizes and tracks the workpiece with one click—no manual focusing or operator intervention required.

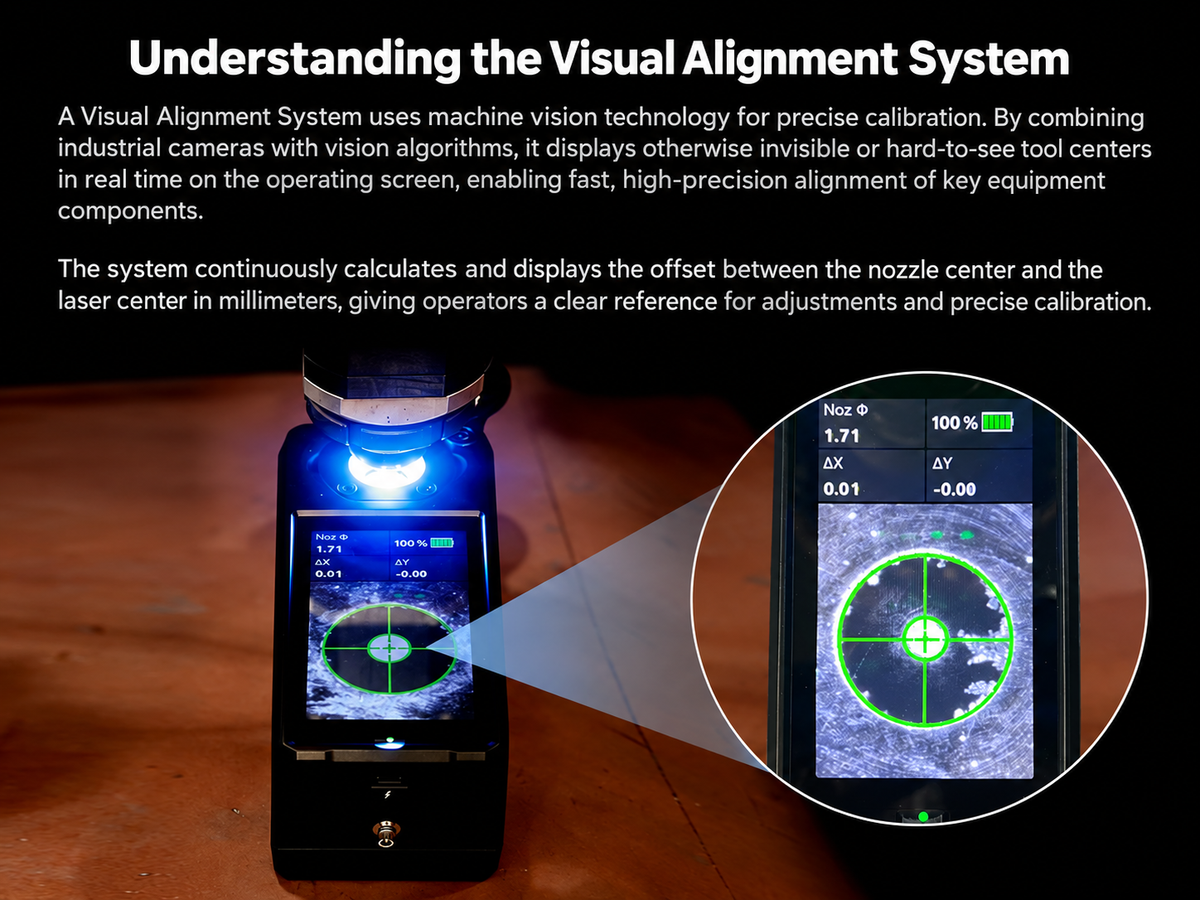

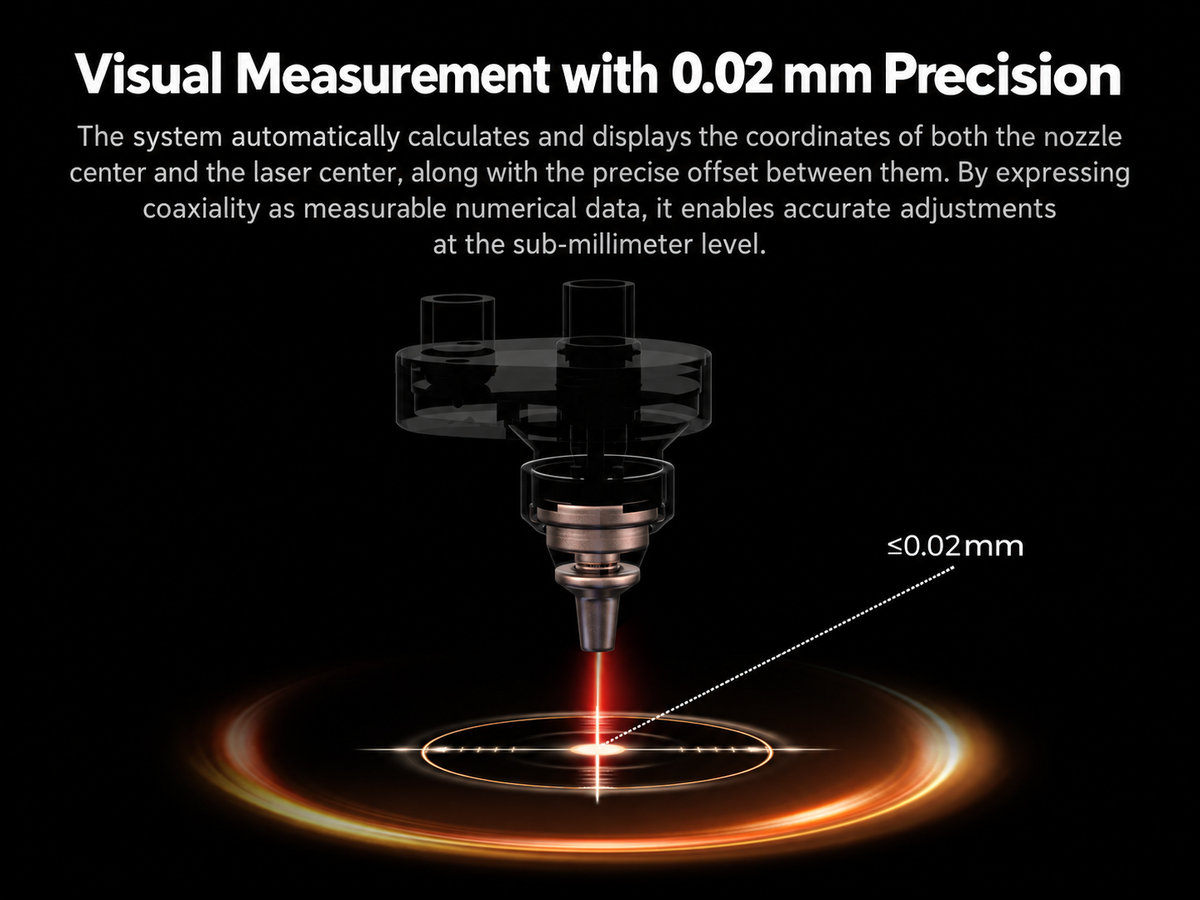

• High-Precision Recognition — Delivers ≤0.02 mm repeatability and ≤0.05 mm absolute accuracy, ensuring consistent alignment even when processing thick plates.
• Fast Alignment, Built for the Shop Floor — Complete alignment in under 1 minute, helping reduce setup time and maximize equipment uptime. With an IP64-rated enclosure and 0°C–60°C operating range, it's built for demanding workshop environments.

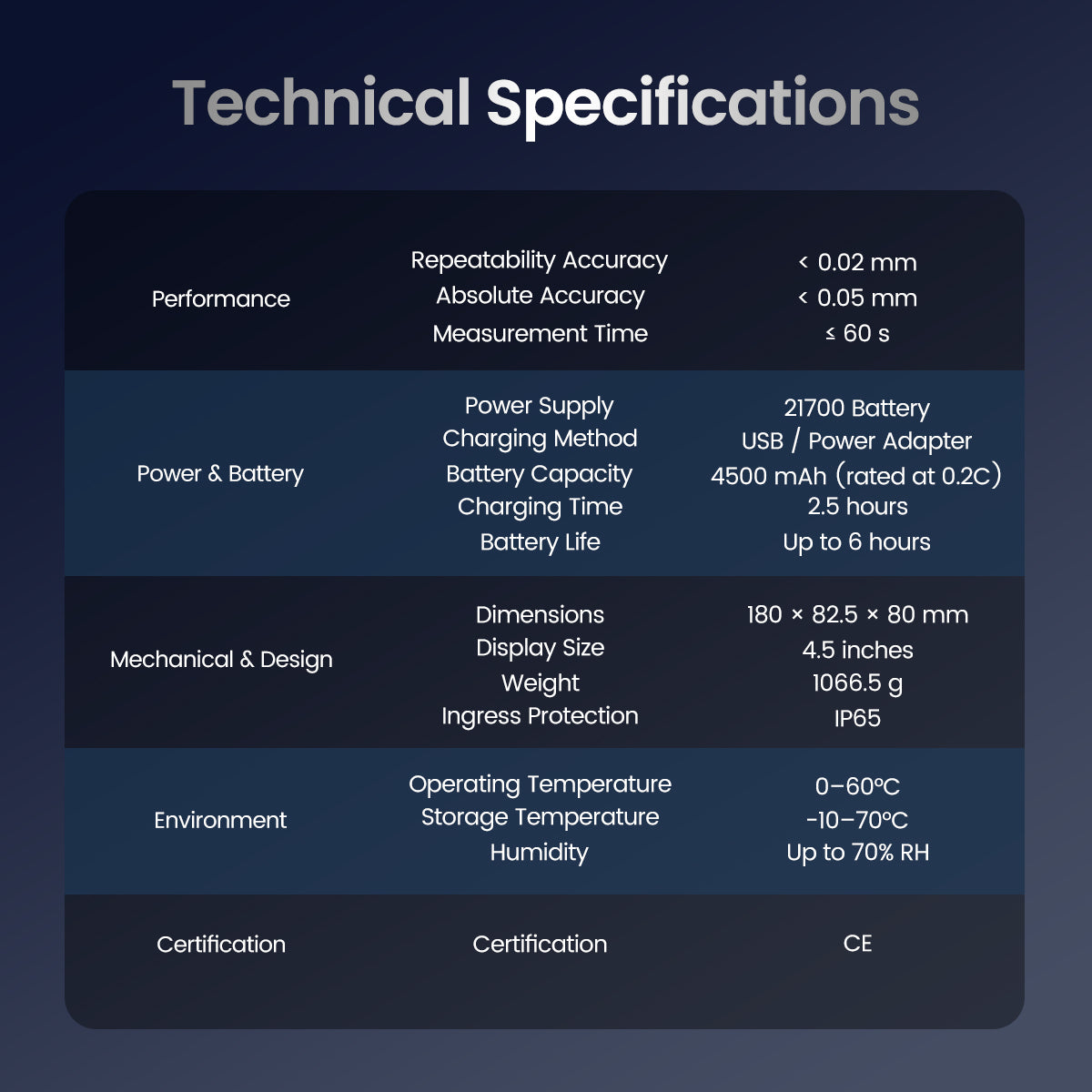

Product Specifications:

Resolution 1920 × 1200
Tracking Height 1 mm
Recognition Repeatability ≤ 0.02 mm
Recognition Absolute Accuracy ≤ 0.05 mm
Power Supply 21700 battery
Charging Method USB, Adapter
Battery Capacity 4500mAh @ 0.2C
Power Consumption <4 W @ 4.2 V DC
Dimensions 180 mm × 80 mm × 82.5 mm (L×W×H)
Screen Size 4.5 inches
Weight Approx. 1 kg
Ingress Protection IP64
Operating Temperature 0°C — 60°C
Ambient Humidity 0% — 70%RH (non-condensing)
Product Certification CE
