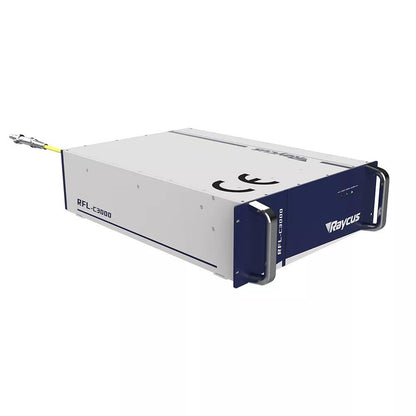

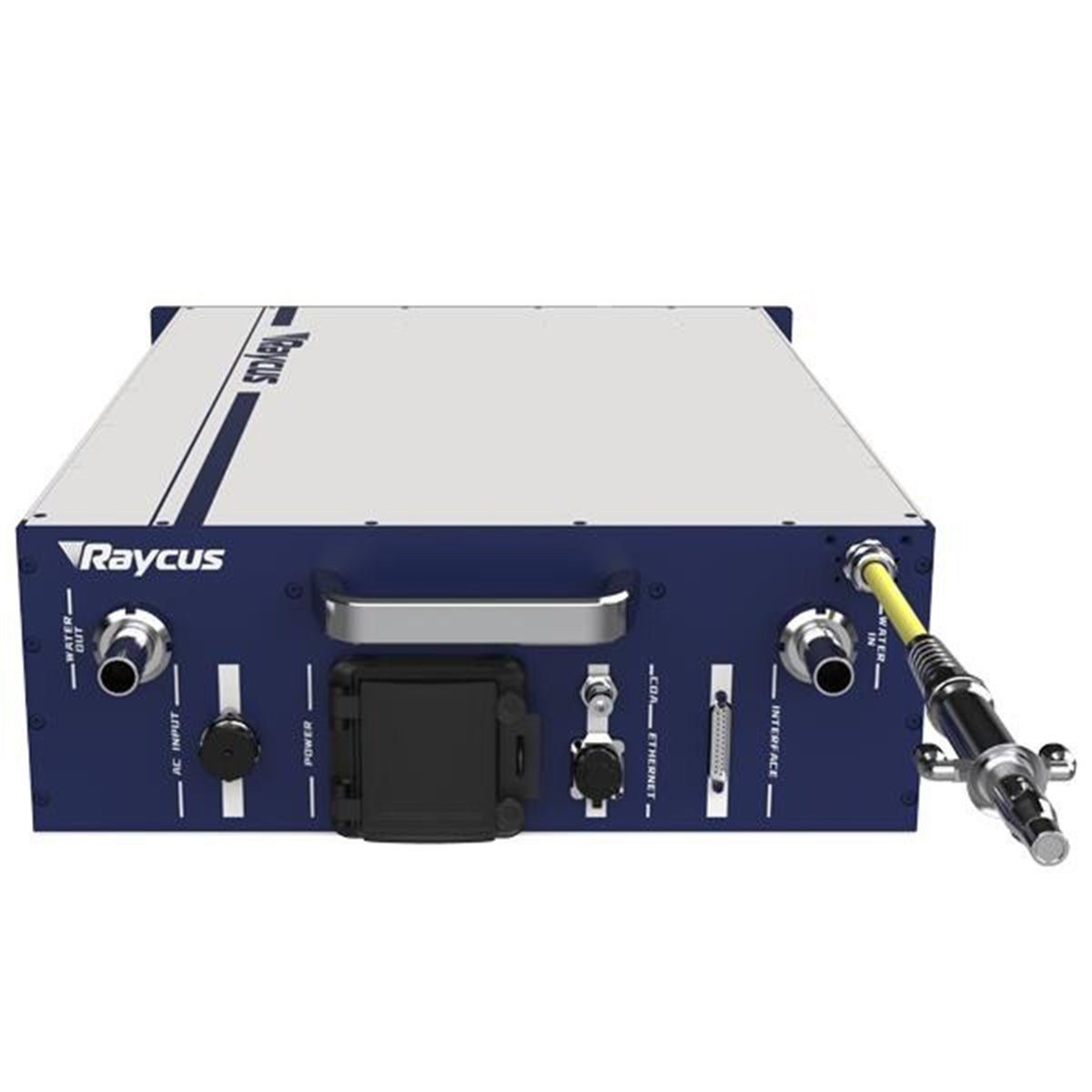

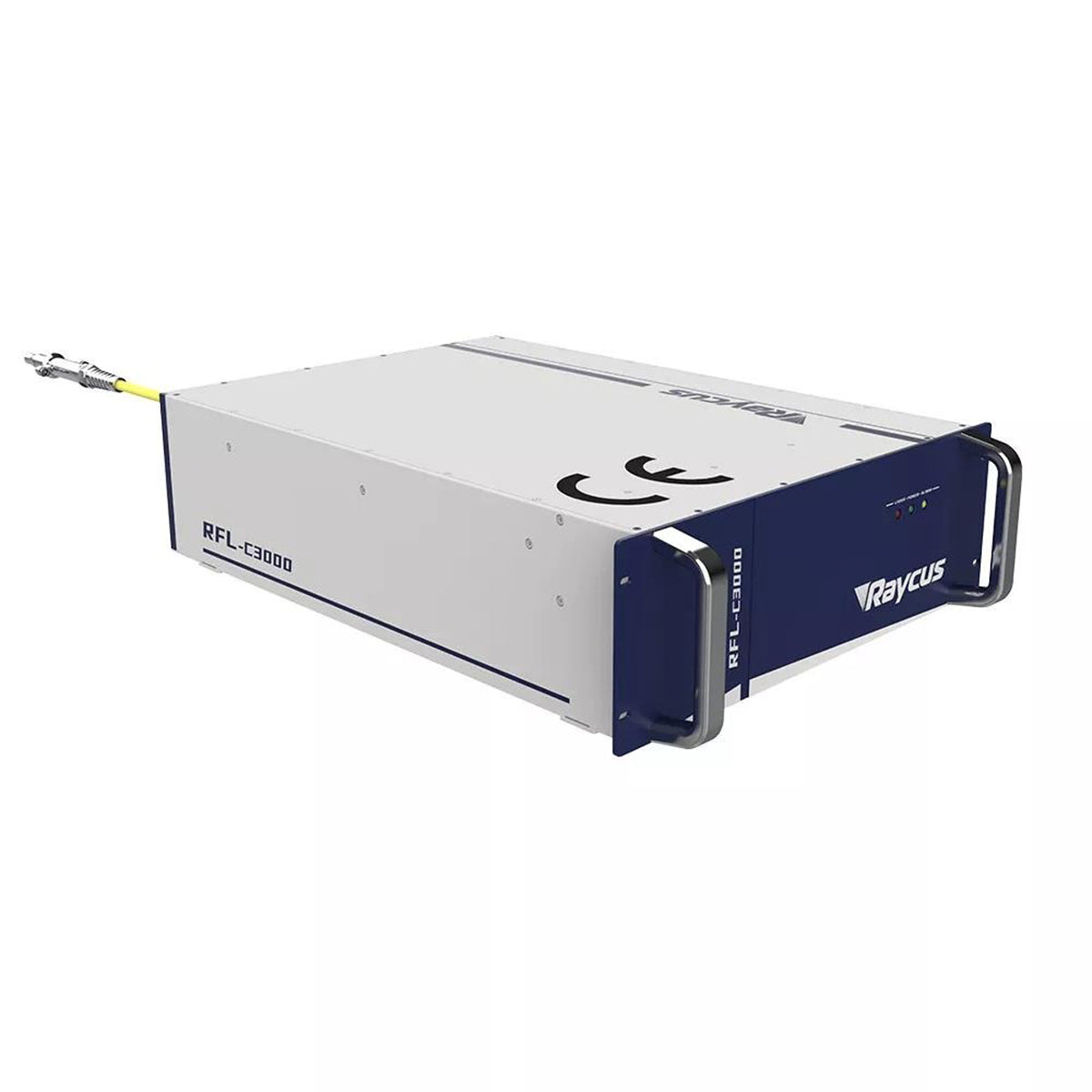

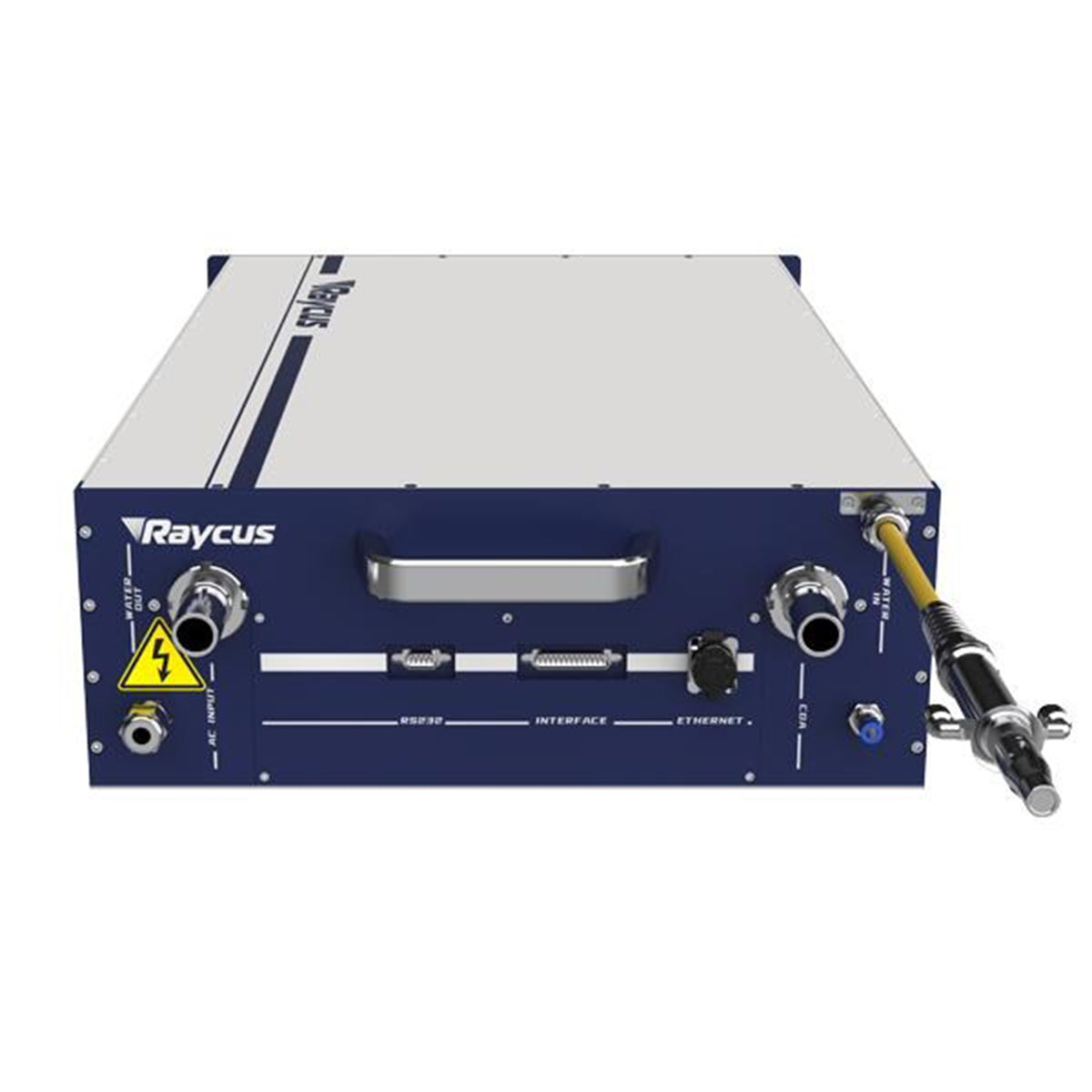

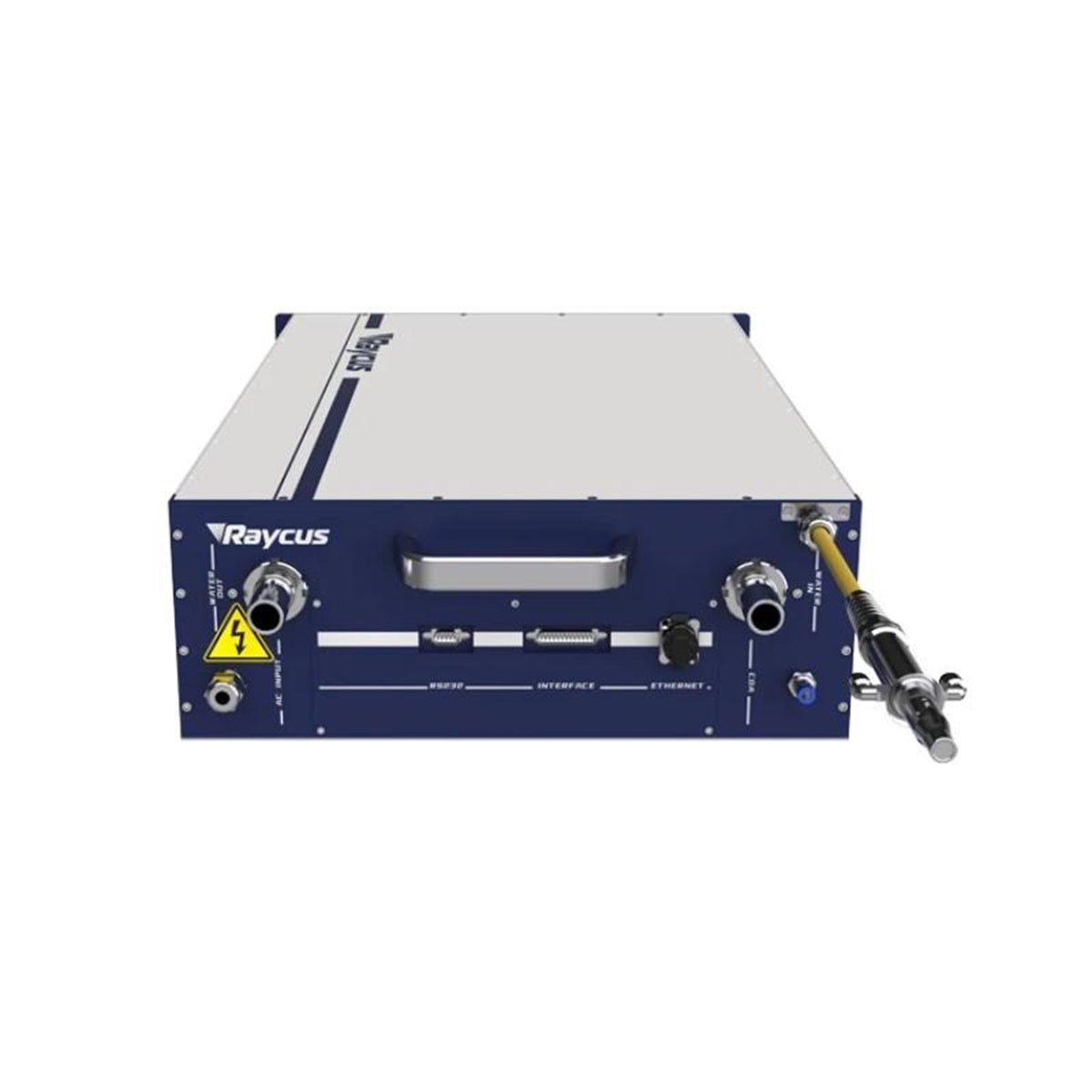

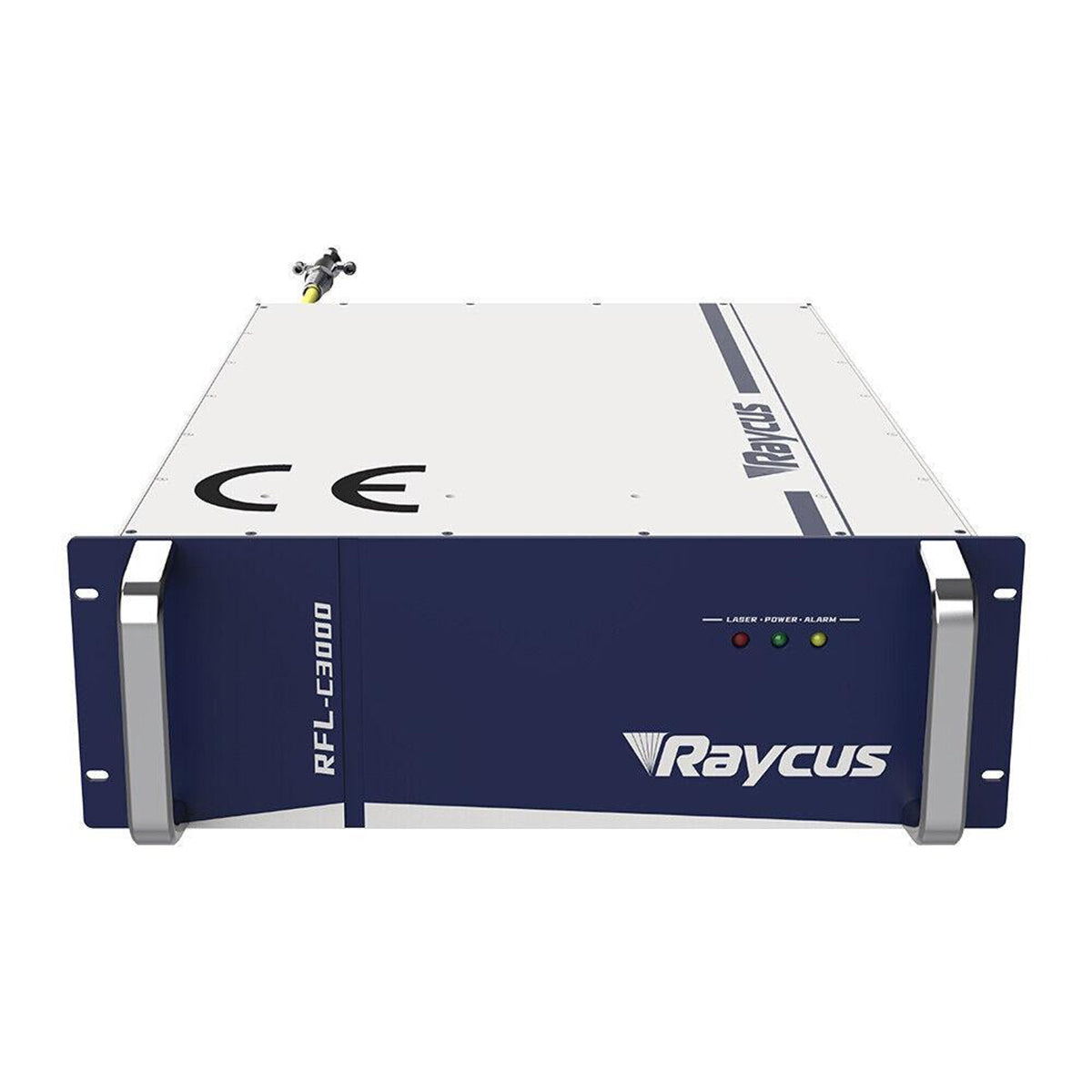

Raycus 3KW Fiber Laser Single Module Laser Source for Fiber Laser Cutting Machine RFL-C3000S

✅ Genuine Raycus 3000W/6000W single‑module, CE certified for medium‑thick plate production.
✅ ±1.5% long‑term power stability, reliable for continuous thick‑plate cutting.
✅ Optimized beam performance, powerful thick‑plate piercing & clean cutting surface.
✅≥40% electro‑optical efficiency, lower power consumption under high‑power duty.
✅ 5kHz modulation & waveform editing, compatible for cutting, welding & cladding.
✅ Maintenance‑free & strong anti‑reflection, fit for 24‑hour heavy‑duty production.
✅ Multi‑communication interfaces, customizable fiber cable, easy integration & retrofitting.

Model: RFL-C3000S  QBH

Rated Output Power: 3000 W
Center Wavelength: 1080 ± 5 nm
Power Stability: ±1.5%
Maximum Modulation Frequency: 5 kHz
Beam Quality (BPP): 1.5–2 mm・mrad
Output Fiber Core Diameter: 50 μm
Red Indicator: 0.5–1 mW
Output Connector: QBH
Optical Cable Length: 20 m

Compatible with Flat-bed cutting machines, compact sheet-and-tube cutting machines

Model: RFL-C3000H  Welding

Rated Output Power: 3000 W
Center Wavelength: 1080 ± 5 nm
Power Stability: ±1.5%
Modulation frequency: 0–5,000 Hz (5 kHz)
Beam quality (BPP): <2 mm·mrad (50 μm fiber core)
Output fiber core diameter: 50 μm
Red indicator: 0.1–1 mW, for easy alignment
Output connector: QBH
Fiber cable length: 20 m

Compatible with Handheld Laser Welding, Metal Butt Welding, Overlap Welding, Carbon Steel / Stainless Steel / Aluminum Alloy Welding, CE Global Edition

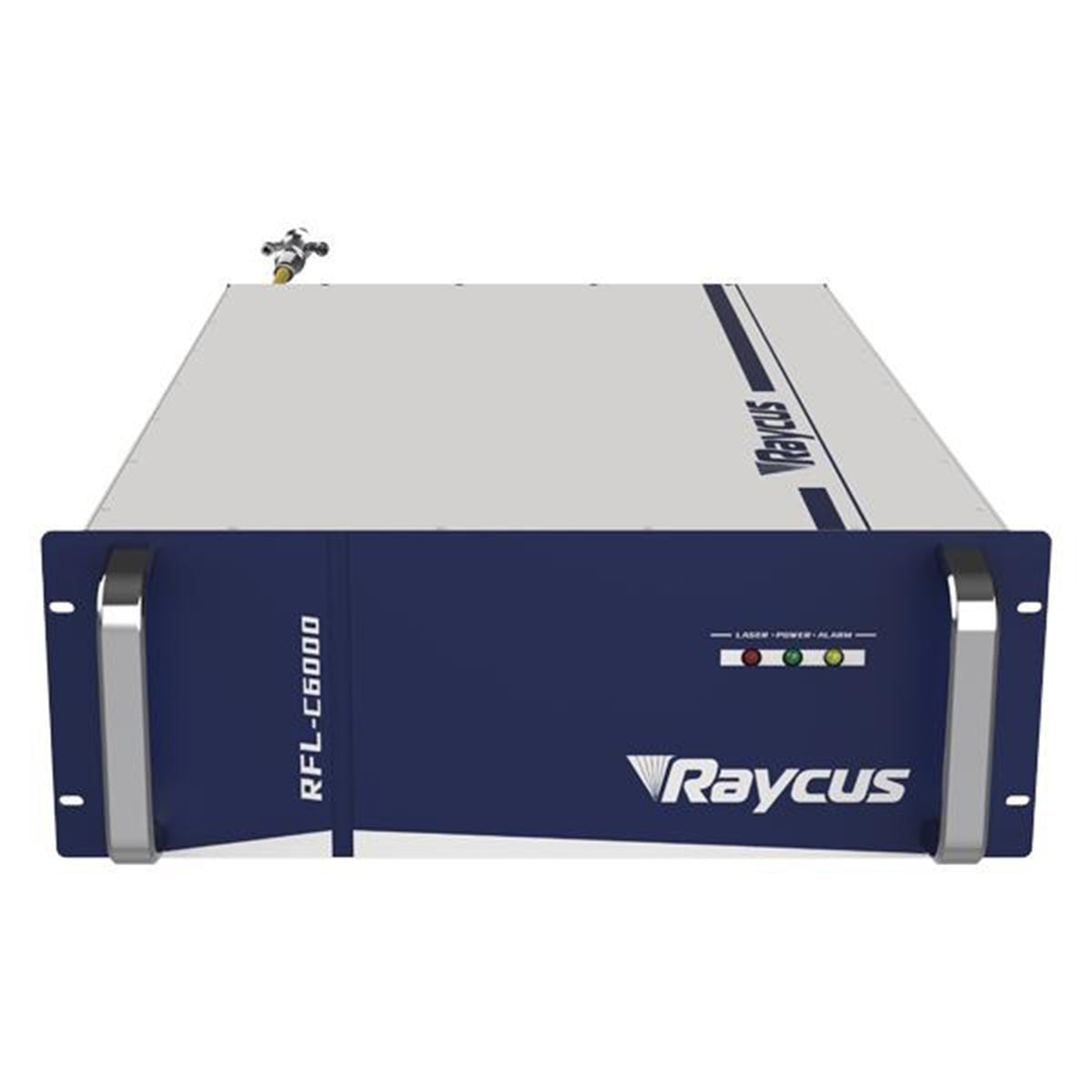

Model: RFL-C6000S  QBH

Rated Output Power: 6000 W
Center Wavelength: 1080 ± 5 nm
Power Stability: ±1.5%
Maximum Modulation Frequency: 5 kHz
Beam Quality (BPP): 2.7–3.1 mm・mrad
Output Fiber Core Diameter: 50–75 μm
Red Indicator: 0.5–1 mW
Output Connector: QBH
Optical Cable Length: 20 m

Compatible with Medium- to High-Power Flat-Bed Cutting Machines, Sheet-and-Tube Combination Machines, and Robotic Cutting Workstations
