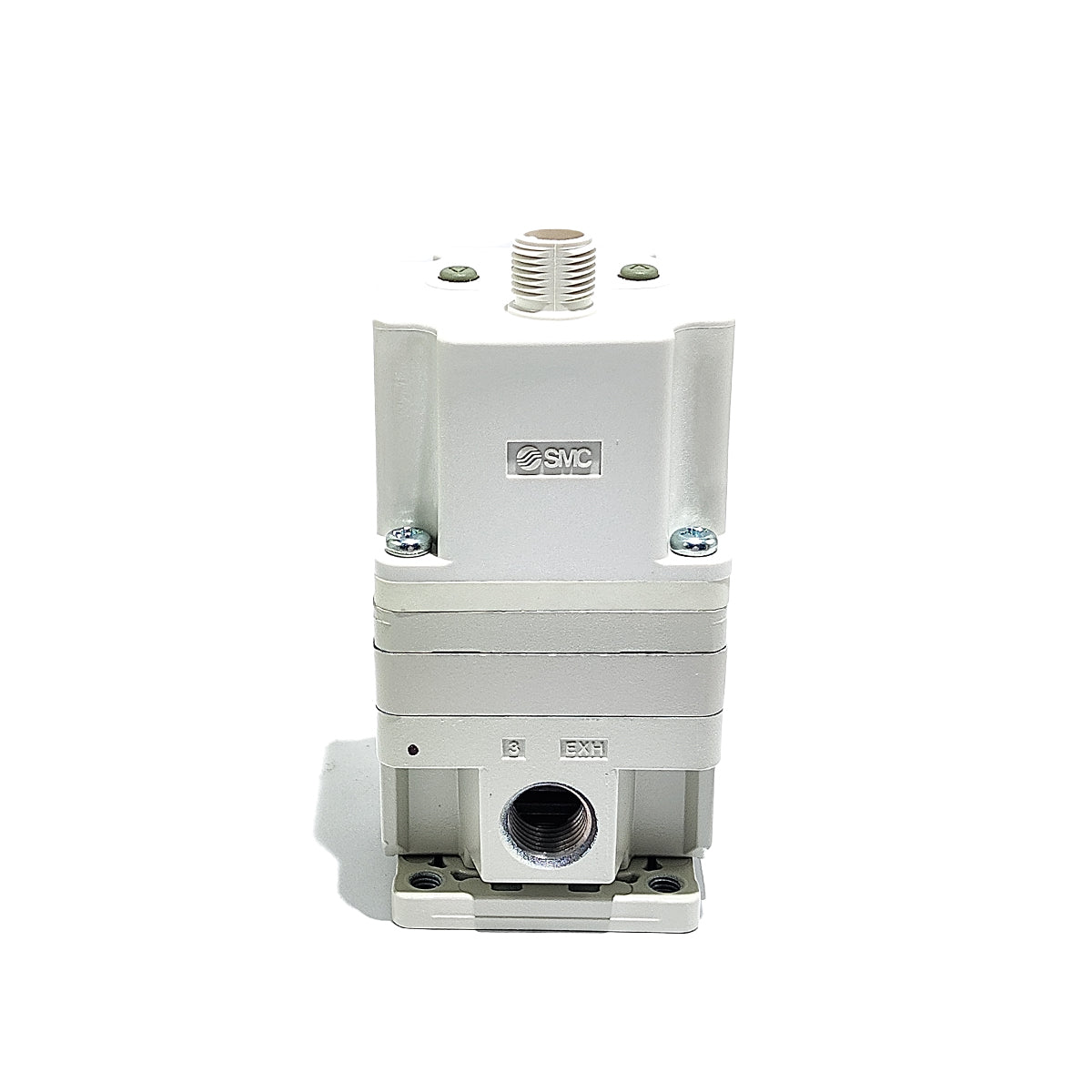

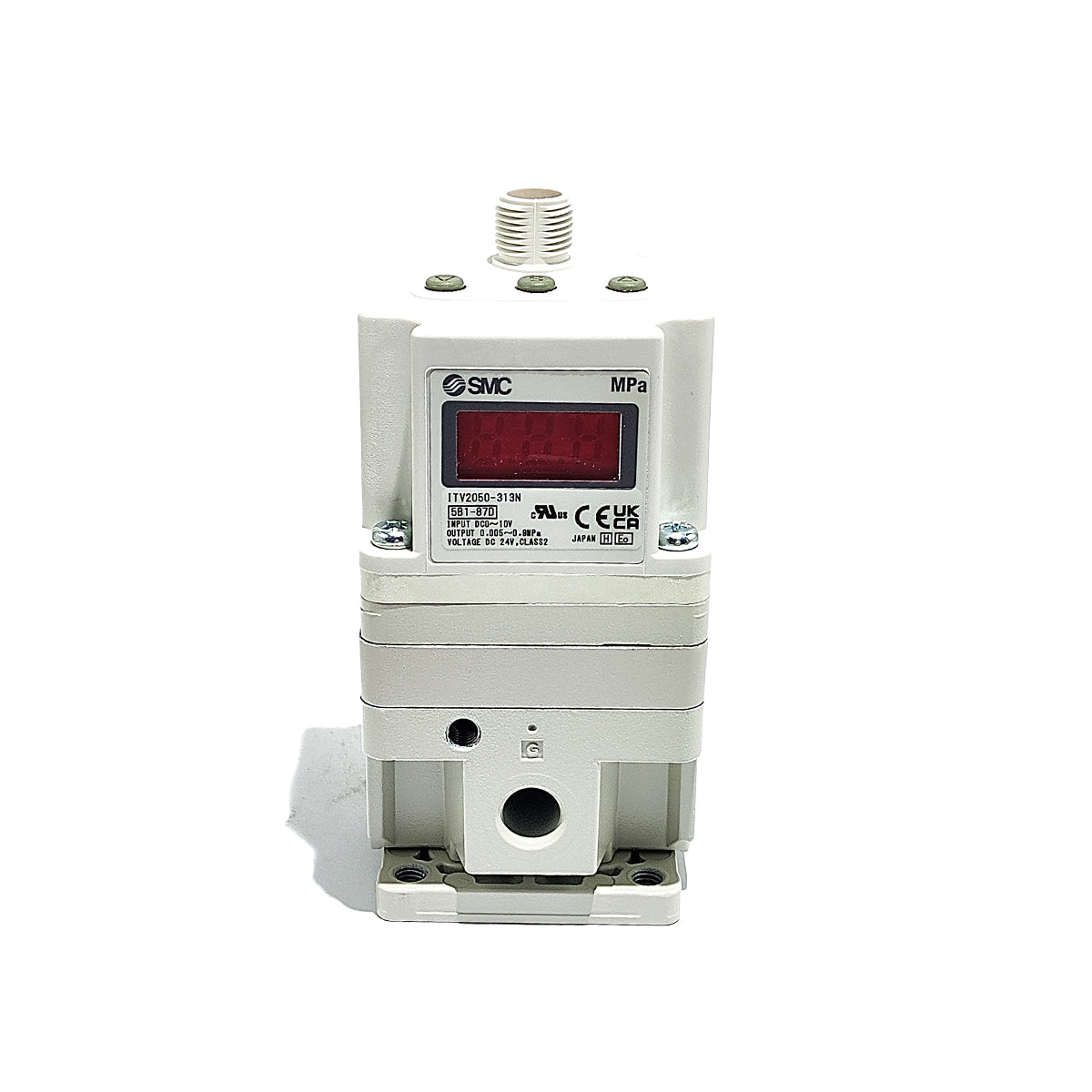

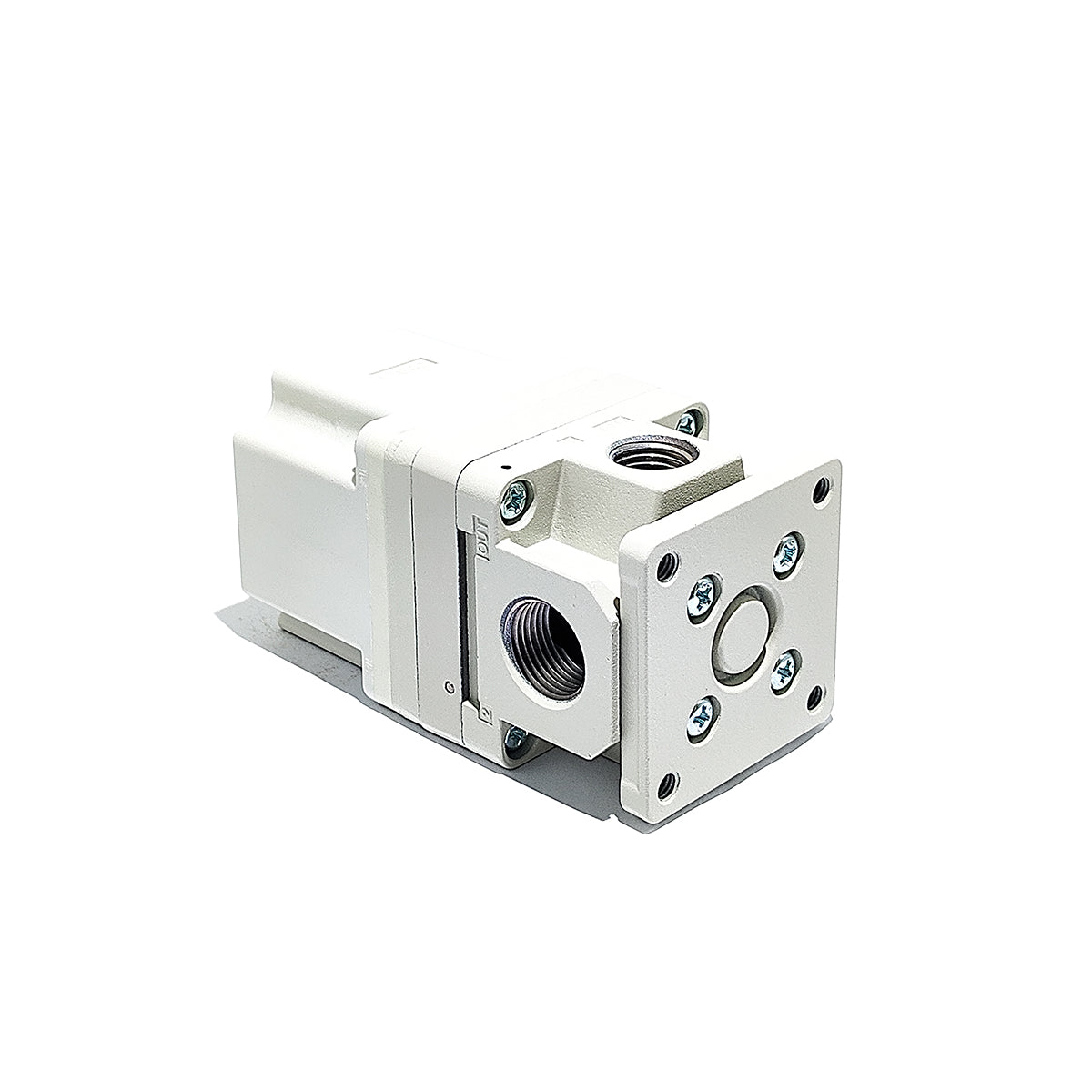

New Original Proportional Valve Electric Valve Laser Cutting Machine ITV2050-313L

✅ Ultra-high pressure regulation accuracy: linearity ±1% FS, hysteresis ≤0.5% FS, sensitivity 0.2 kPa; no pressure fluctuations when switching between thick and thin sheets; uniform cut surfaces with no slag residue
✅ Wide pressure range: output 0.005–0.9 MPa; one-touch automatic switching between low-pressure piercing for thin sheets and high-pressure cutting for thick sheets; compatible with carbon steel / stainless steel / aluminum sheet processing
✅ Standard Analog Signal Compatibility: Dual inputs (0–10 V voltage / 4–20 mA current) and 1–5 V pressure feedback output, perfectly compatible with Baochu and Jiaqiang laser CNC systems
✅ Industrial-Grade Durability and Protection: IP65 dust- and water-resistant rating; stable operation in a wide temperature range of 0–55°C; capable of long-term, uninterrupted 24/7 operation in workshop environments with dust and oil contamination

Specifications:

Product Model    ITV2050-313L
Supply Voltage    24 VDC ±10%, Current ≤ 0.12 A
Input Signal    0–10 VDC / 4–20 mA DC
Pressure Output Range    0.005–0.9 MPa
Maximum Supply Pressure    1.0 MPa
Control Accuracy    Linearity ±1% FS, Hysteresis 0.5% FS, Sensitivity 0.2 kPa
Monitoring Output    1–5 VDC analog pressure feedback
Pneumatic Port Size    RC3/8
Protection Rating    IP65
Operating Environment    0–55°C, no condensation

Compatible with Flat Fiber Optic Cutter, Combined Sheet and Tube Cutting Machine
