✅ P1 high-precision standard with minimal backlash, ensuring repeatable positioning accuracy ✅ Single-stage transmission design with low power loss and controllable temperature rise during continuous operation ✅ Widened mounting flange ensures a secure fit with the servo motor and prevents transmission eccentricity ✅ High-strength planetary gearset withstands frequent forward/reverse start-stop impact loads ✅ Sealed housing design blocks dust and oil contamination, making it suitable for workshop environments

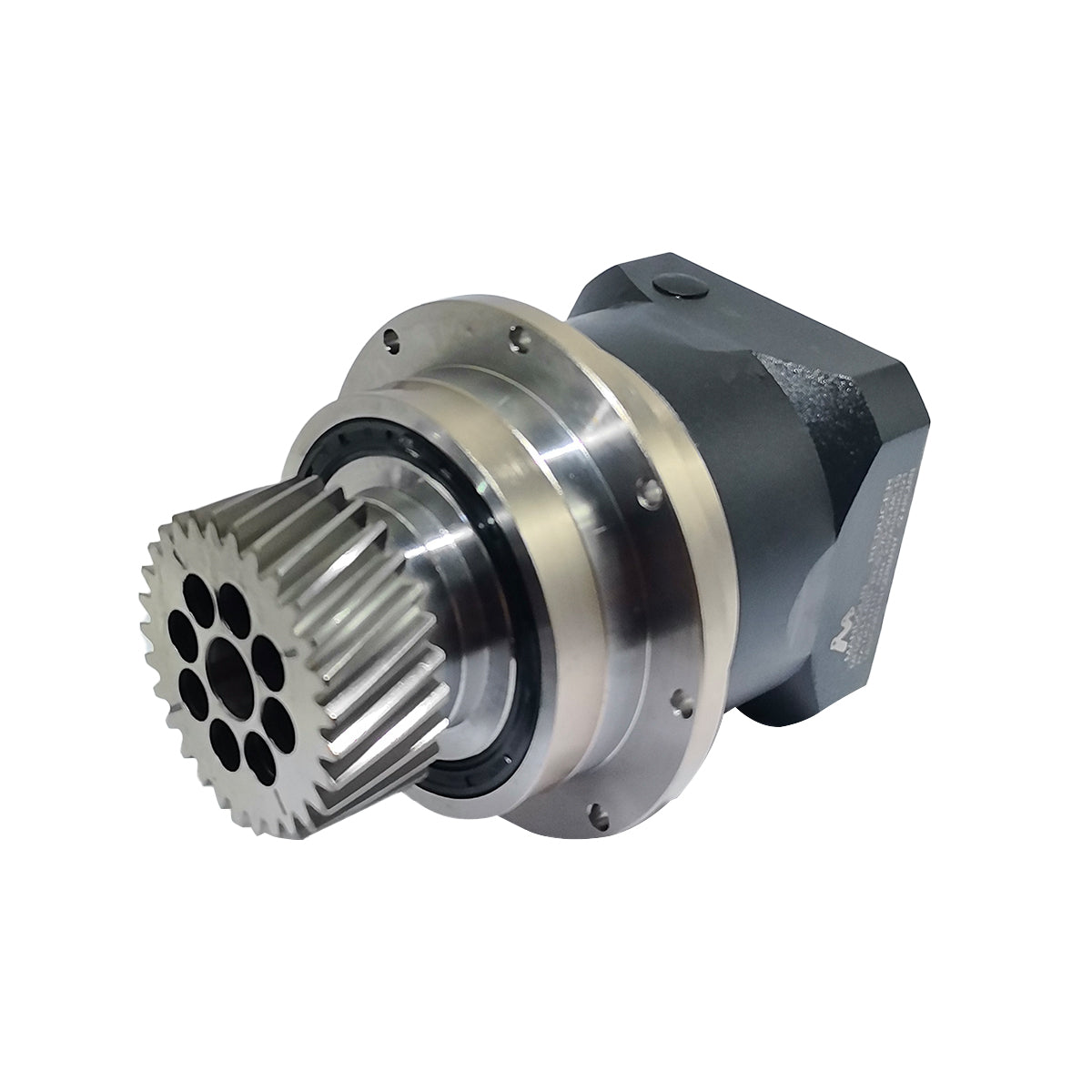

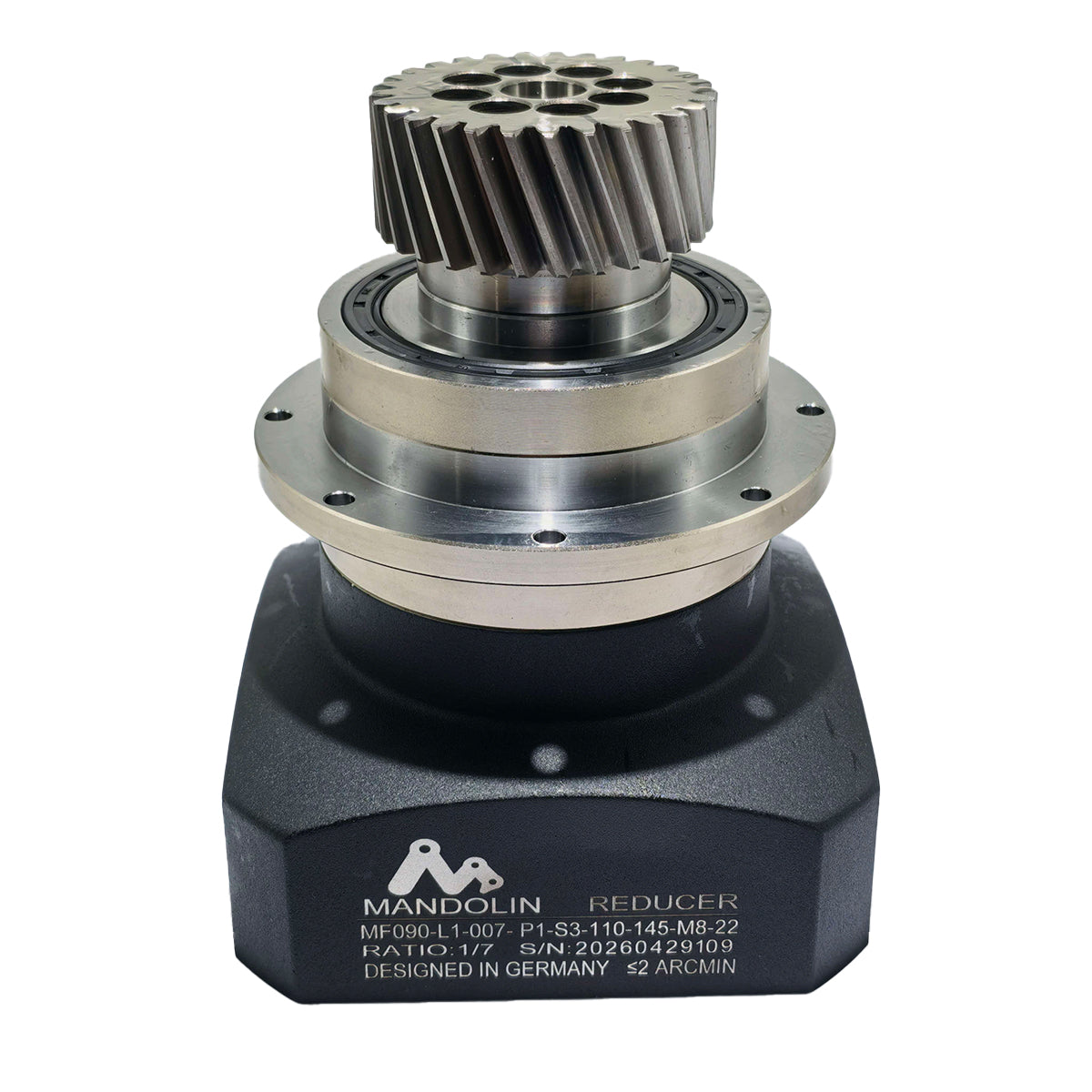

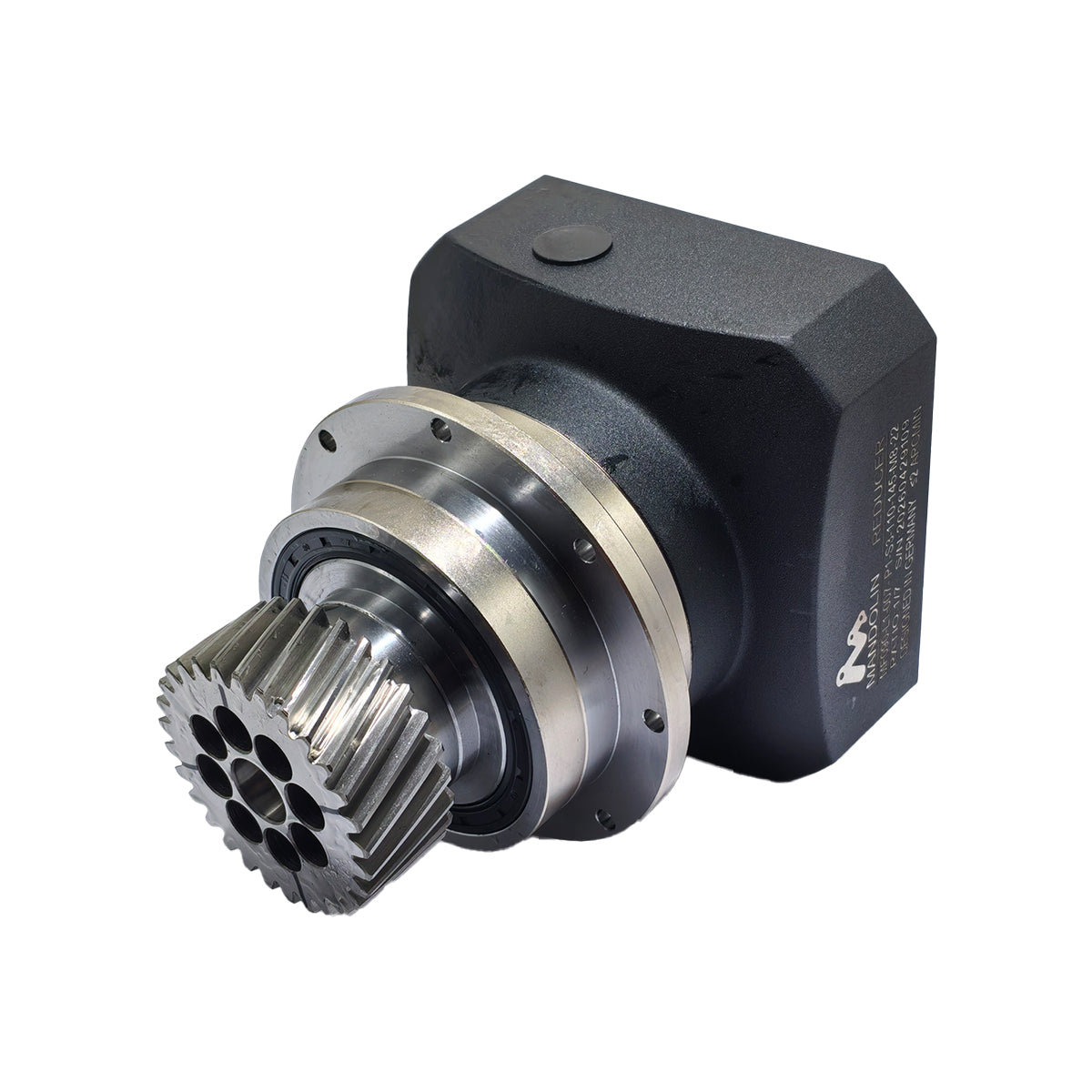

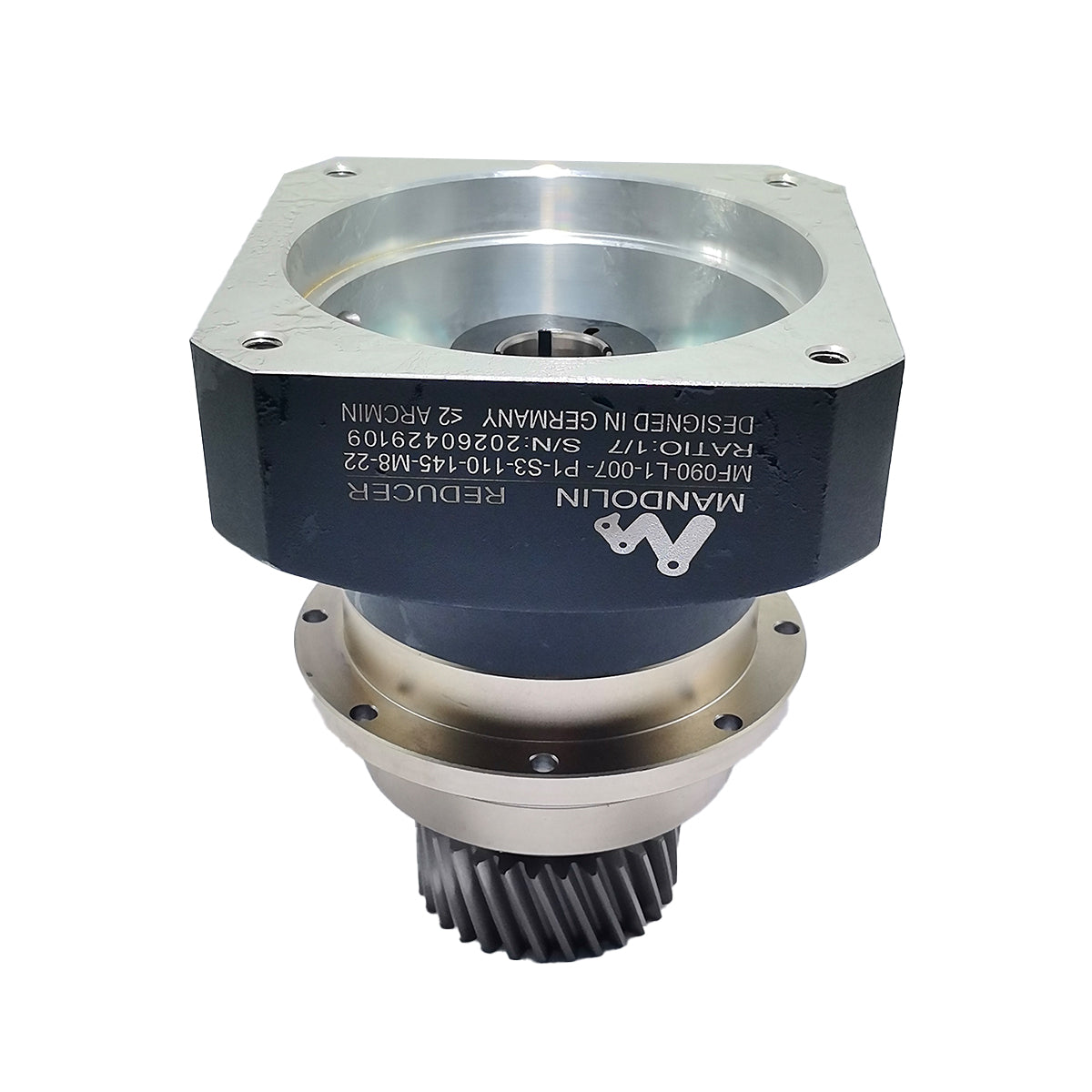

Model: MF090-L1-007-P1-S3-110-145-M8-22-Z29
Number of Reduction Stages: Single-stage L1 transmission configuration Reduction Ratio: 7 ratio configurations Accuracy Standard: P1 precision backlash grade Motor Mounting Flange: 110 × 145 mm Input Shaft Diameter: Φ22 mm (servo-compatible shaft diameter)

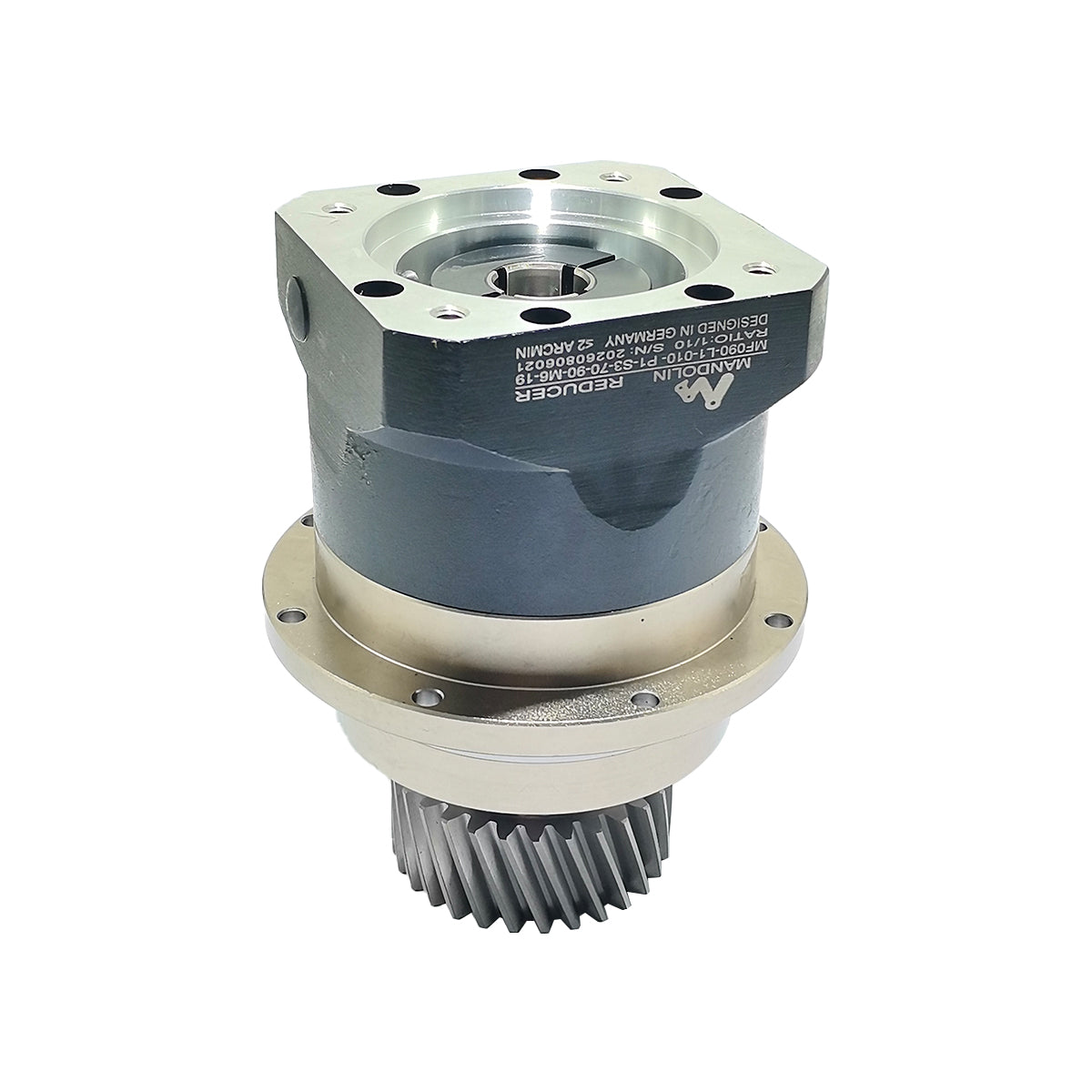

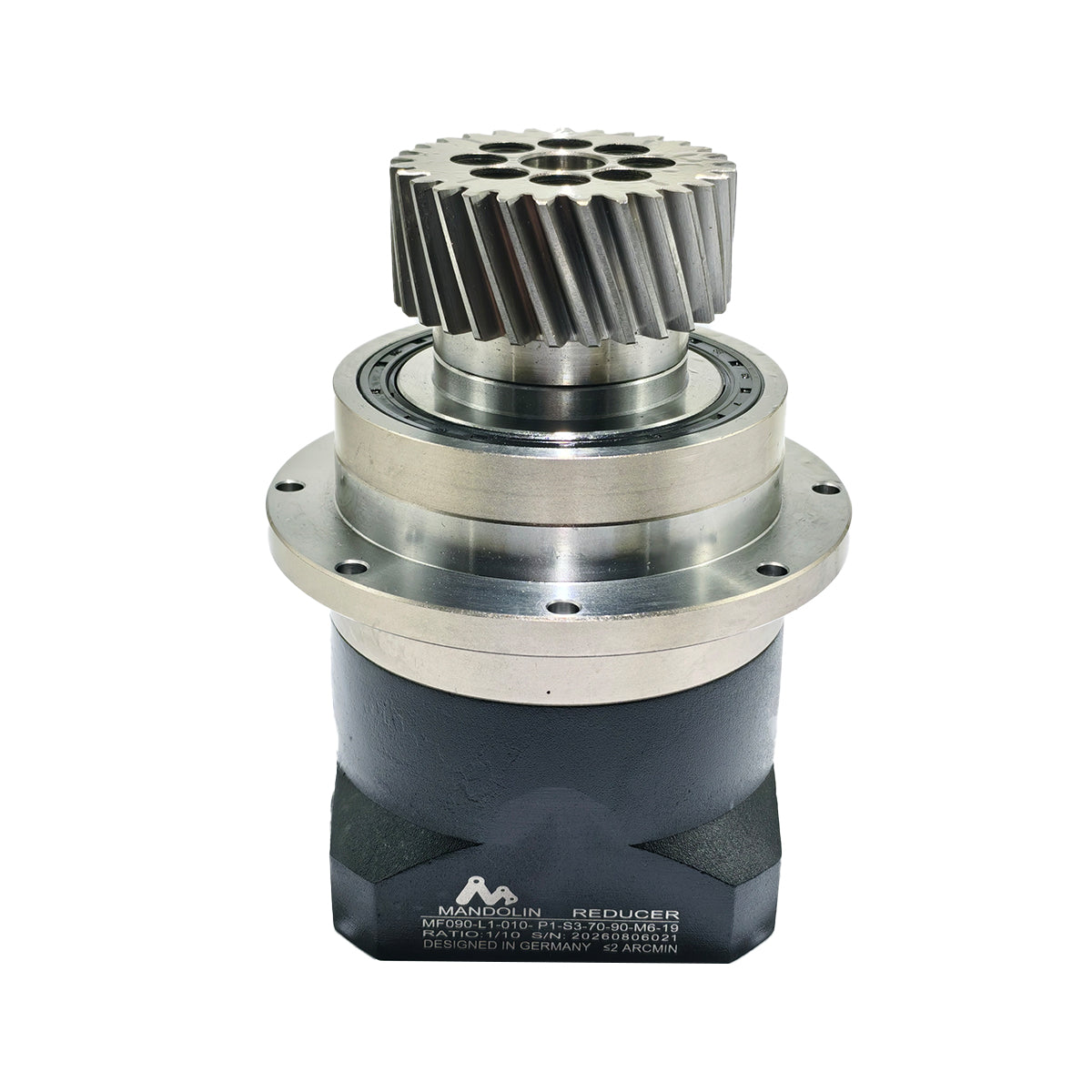

Model: MF090-L1-010-P1-S3-70-90-M6-19-Z29
Number of Reduction Stages: Single-stage L1 configuration Reduction Ratio: 10 ratio specifications Accuracy Class: P1 high-precision backlash standard Input Mounting Flange: 70 × 90 mm mounting flange Input Shaft Bore: Φ19 mm, compatible with servo motors
