✅ Precisely captures motion position to ensure repeatable positioning accuracy
✅ Medium-inertia rotor design provides smooth dynamic response, making it suitable for high-frequency reciprocating motion in small- and medium-sized slides
✅ Built-in electromagnetic brake mechanism effectively prevents the risk of load slippage in vertical-axis installation scenarios
✅ Standard integrated aviation-grade power and encoder connectors ensure secure wiring and simplify on-site disassembly, assembly, and maintenance
✅ Fully sealed protective housing resists continuous exposure to workshop dust and cutting fluid mist

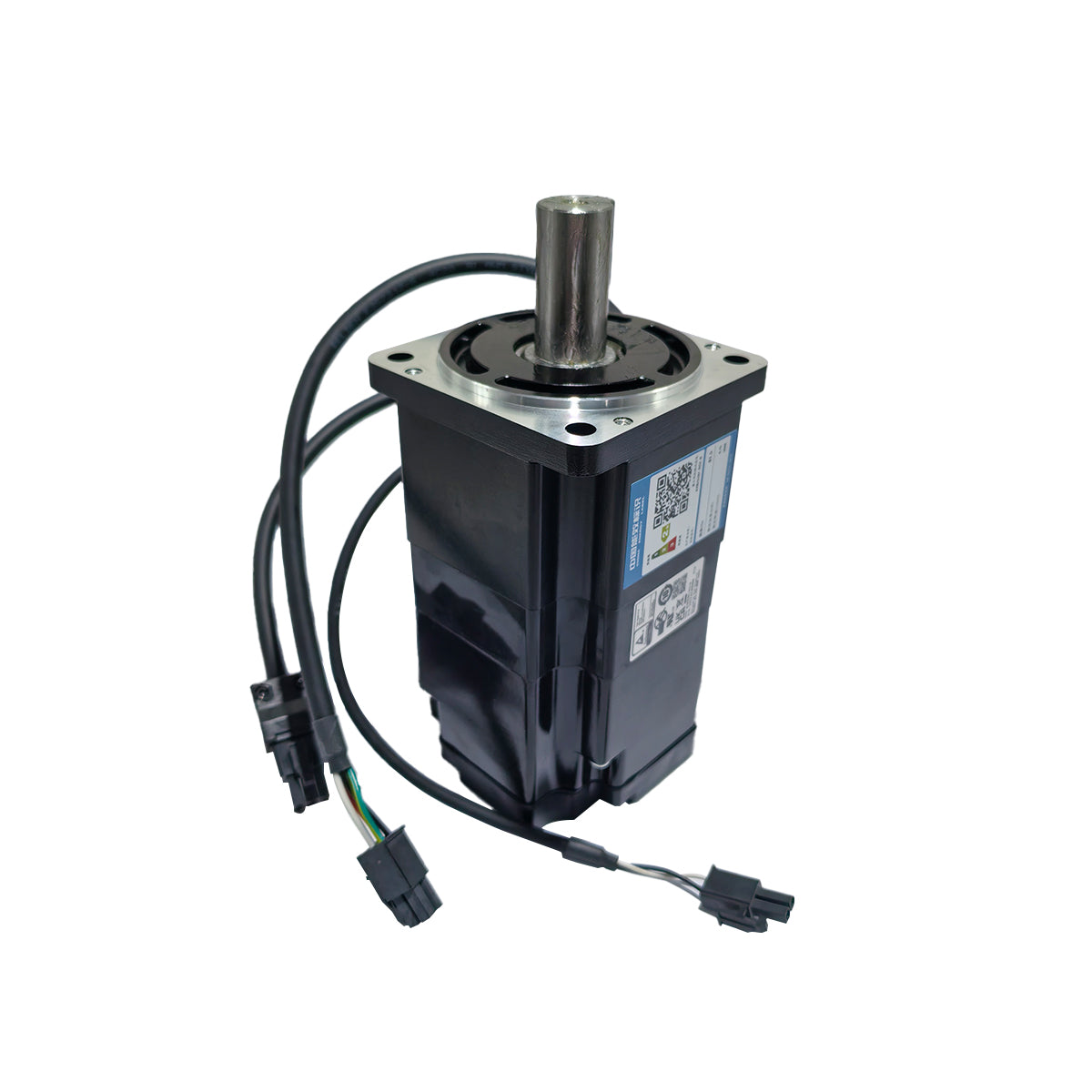

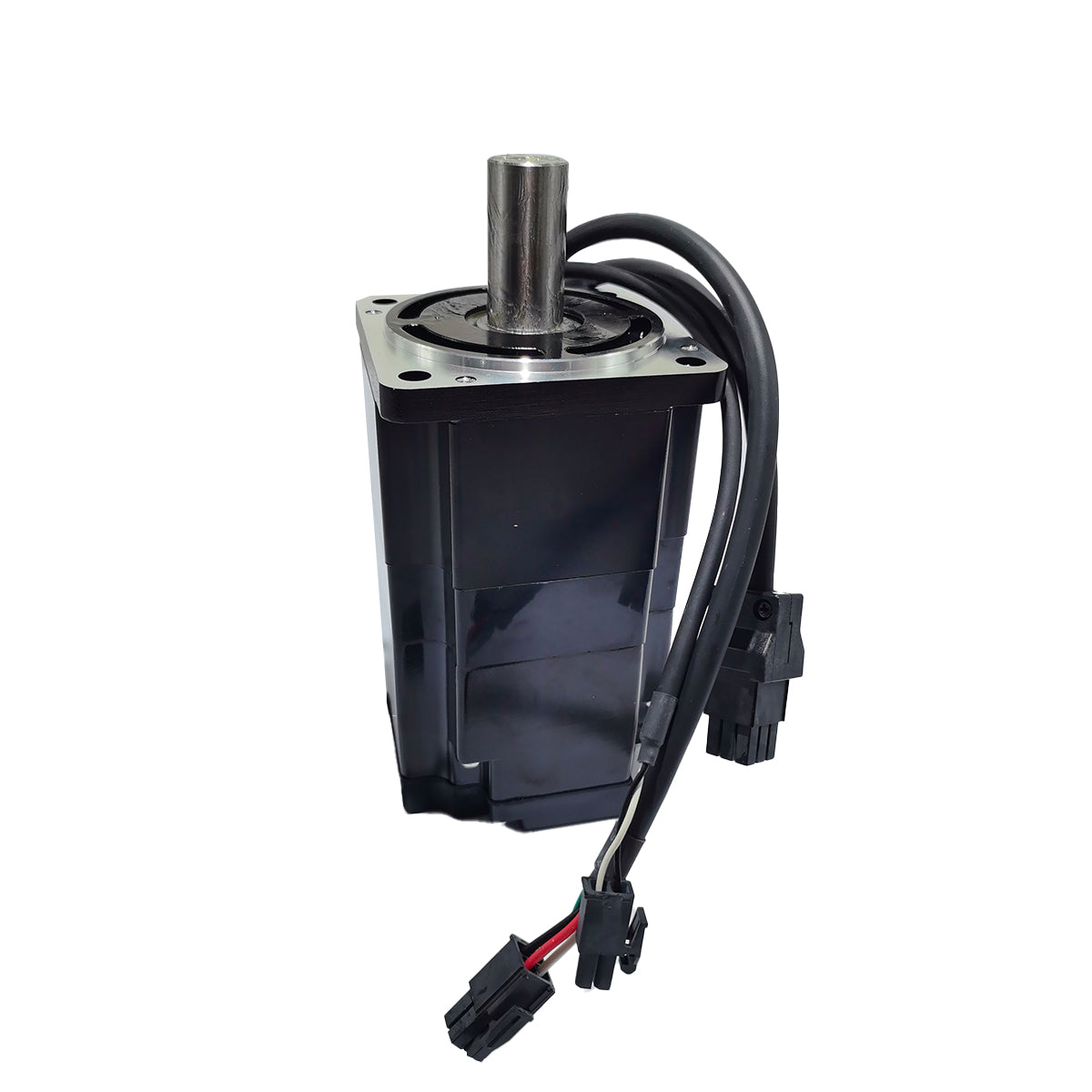

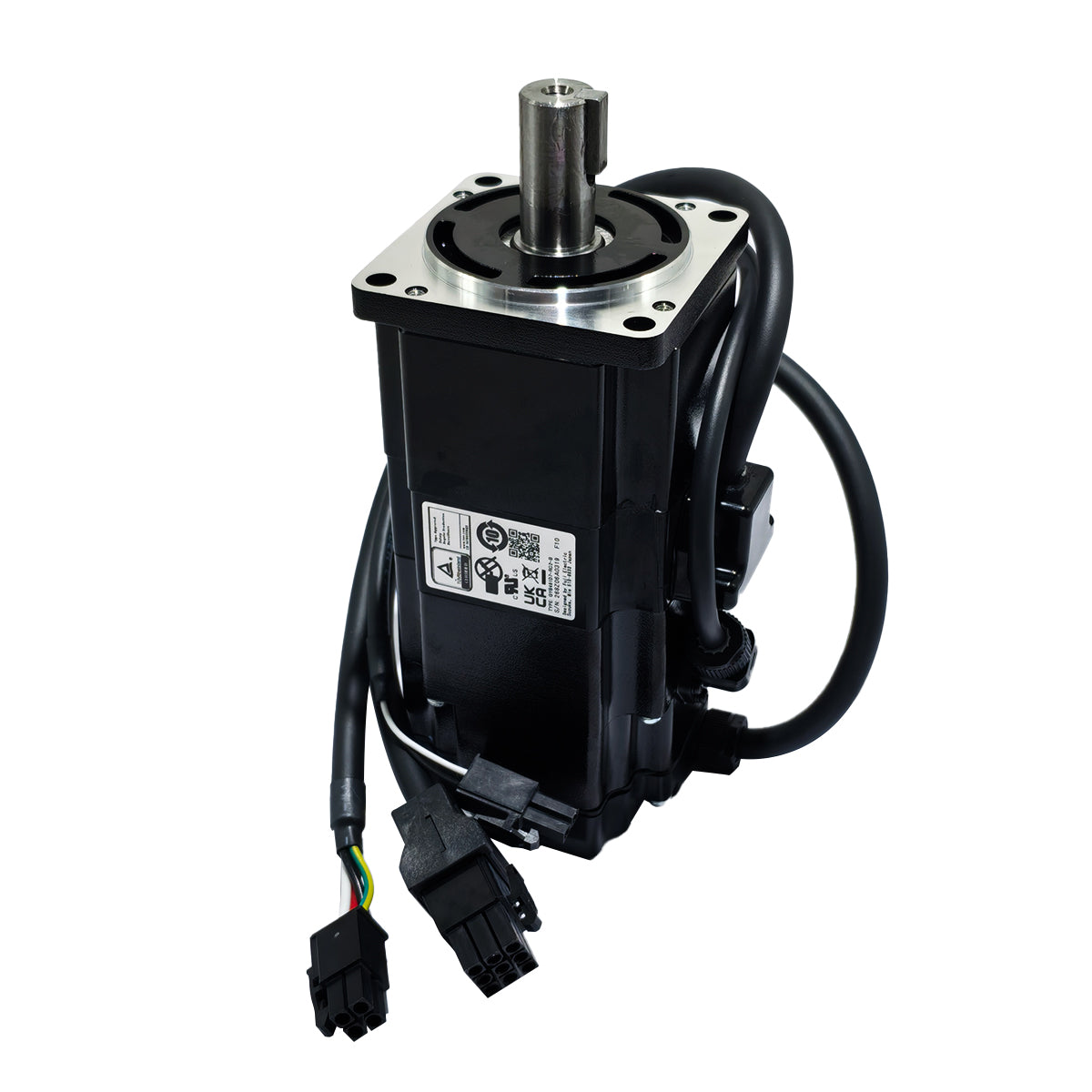

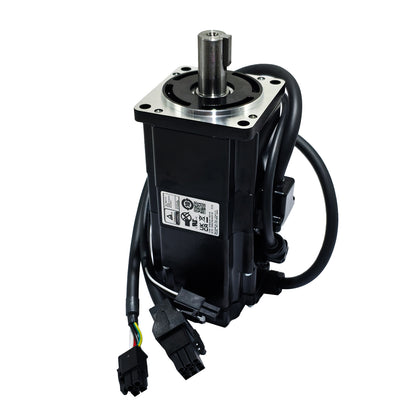

Model: GYB751D7-RC2-B
Rated power: 750 W; compatible with single-phase 200 V AC power systems
Equipped with a 24-bit serial absolute encoder that provides real-time position feedback
Rated speed: 3,000 rpm; maximum short-term speed: 6,000 rpm
IP67 protection rating; the housing and shaft extension feature an integrated sealed design
Rated continuous output torque: 2.39 N·m; supports 300% short-term peak overload

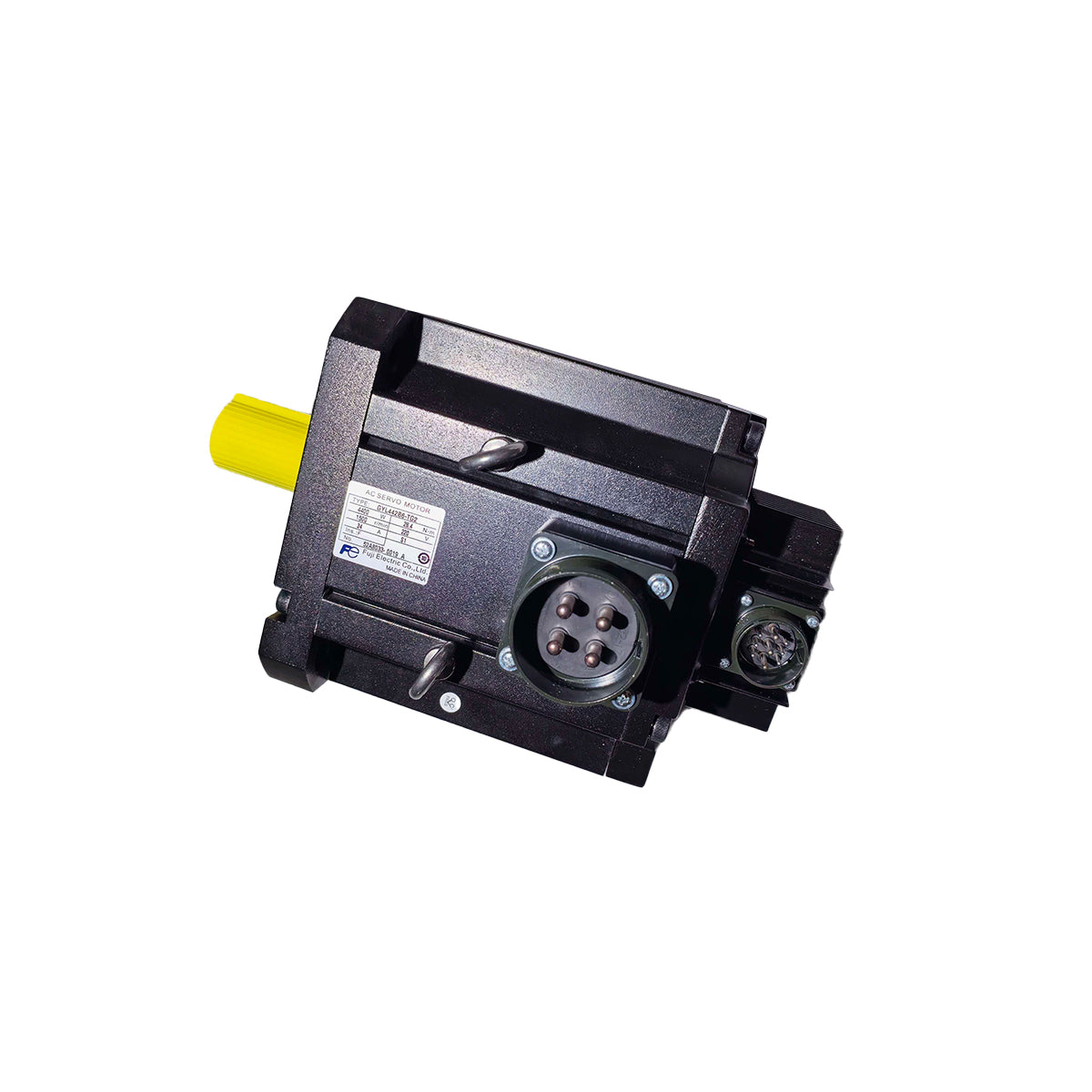

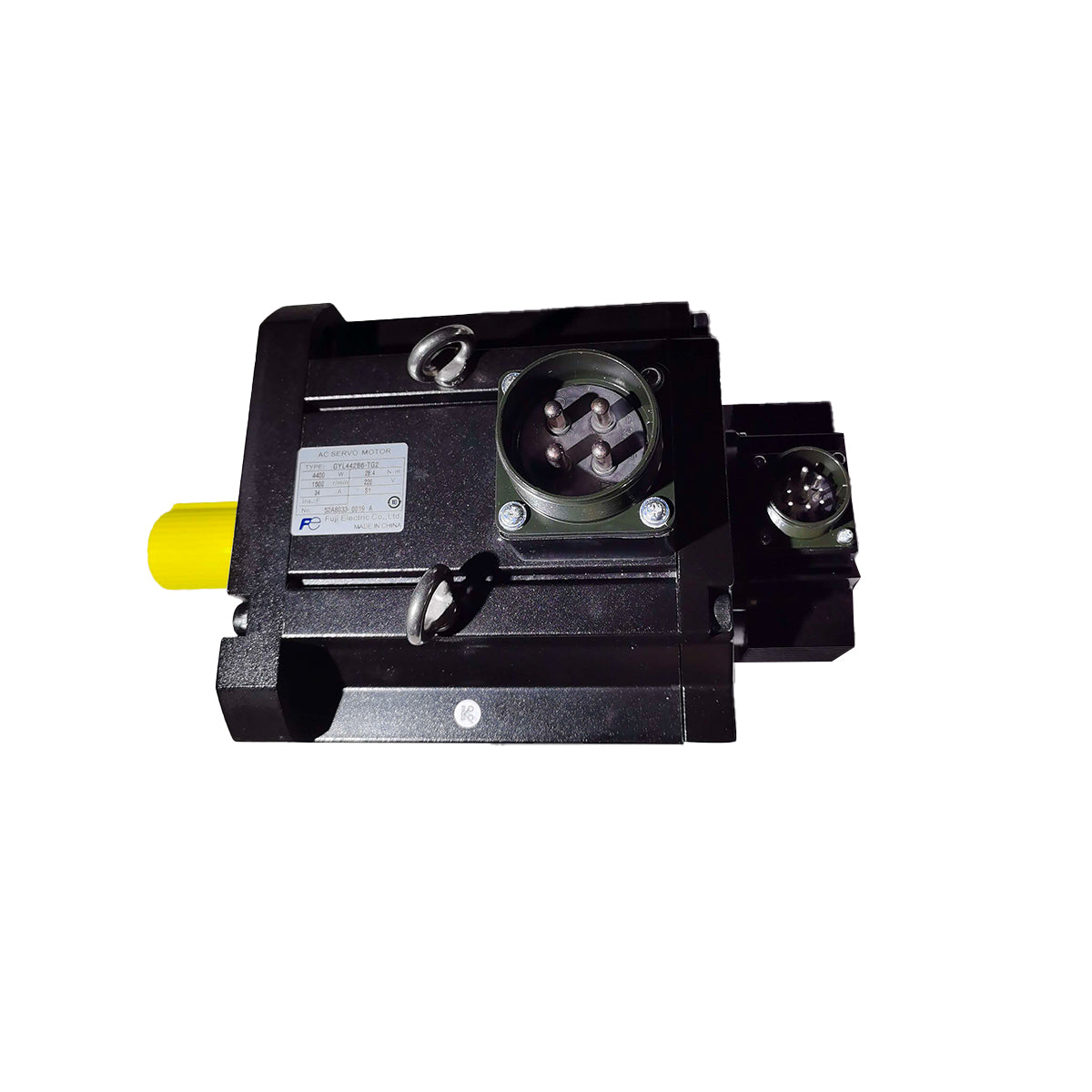

Model: GYL442B6-TG2
Rated power: 4.4 kW; compatible with single-phase and three-phase 200 V AC power systems
Equipped with a 17-bit serial absolute encoder for stable, real-time position signal acquisition
Rated speed: 1,500 rpm; maximum short-term peak speed: 3,000 rpm
IP67 protection rating; the shaft extension is equipped with an integrated skeleton oil seal
Rated continuous output torque: 28.4 N·m; capable of withstanding a short-term overload of four times the peak torque

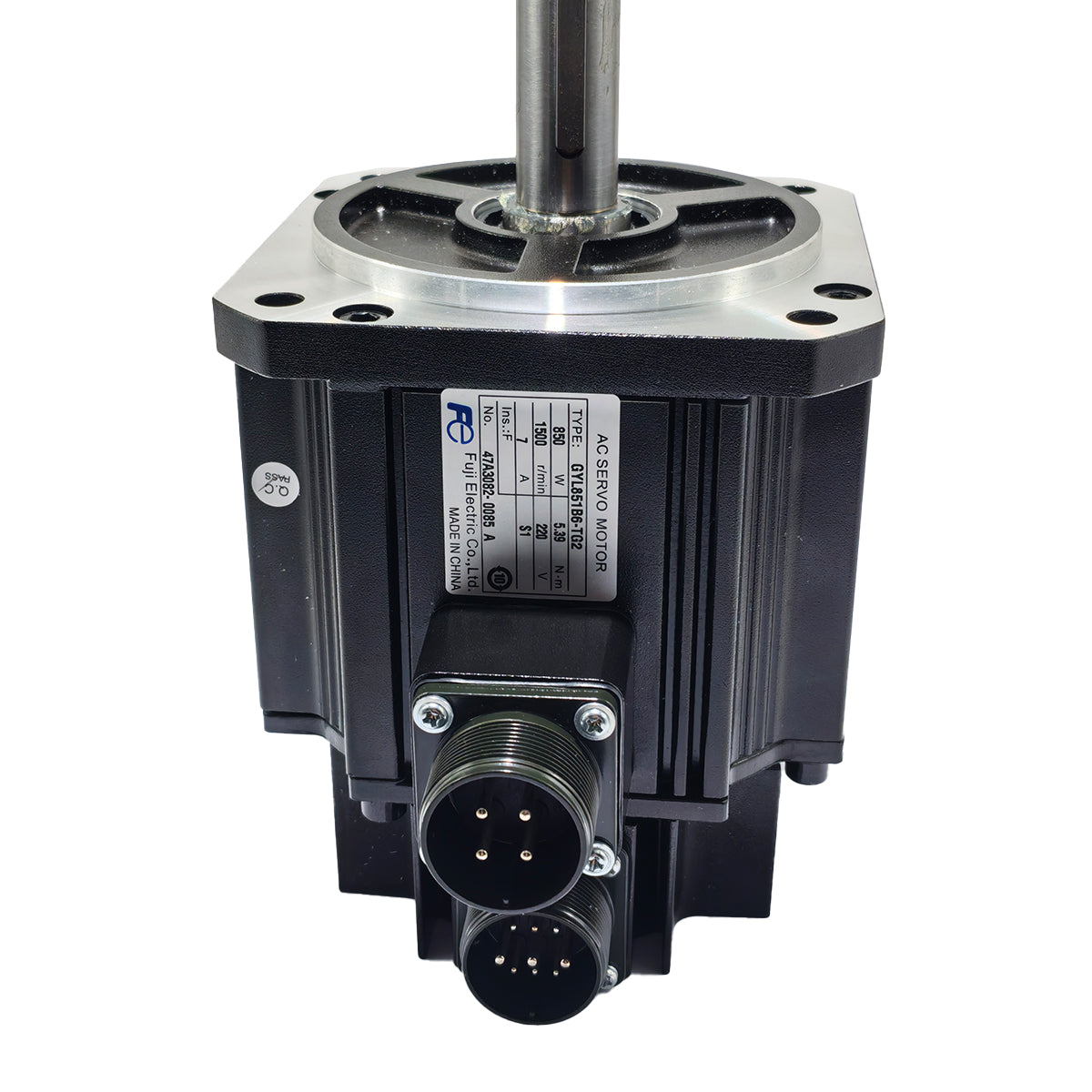

Model: GYL851B6-TG2
Rated power: 0.85 kW; compatible with single-phase and three-phase 200 V AC power systems
Equipped with a 17-bit incremental encoder for stable acquisition of real-time position signals
Rated speed: 1,500 rpm; short-term peak speed up to 3,000 rpm
IP65 protection rating; the shaft extension is sealed with an integrated skeleton oil seal
Medium-inertia rotor design; rated continuous output torque: 5.41 N·m
Model: GYB401D7-RC2-B
Rated power: 400 W; compatible with single-phase and three-phase 200 V AC power systems
Equipped with a 24-bit serial absolute encoder for stable and reliable position feedback
Rated speed: 3,000 rpm; maximum short-term speed: 6,000 rpm
IP67 protection rating; the main body features a fully enclosed, self-cooling design
Built-in 24 VDC electromagnetic brake provides mechanical locking of the output shaft when the motor is stopped

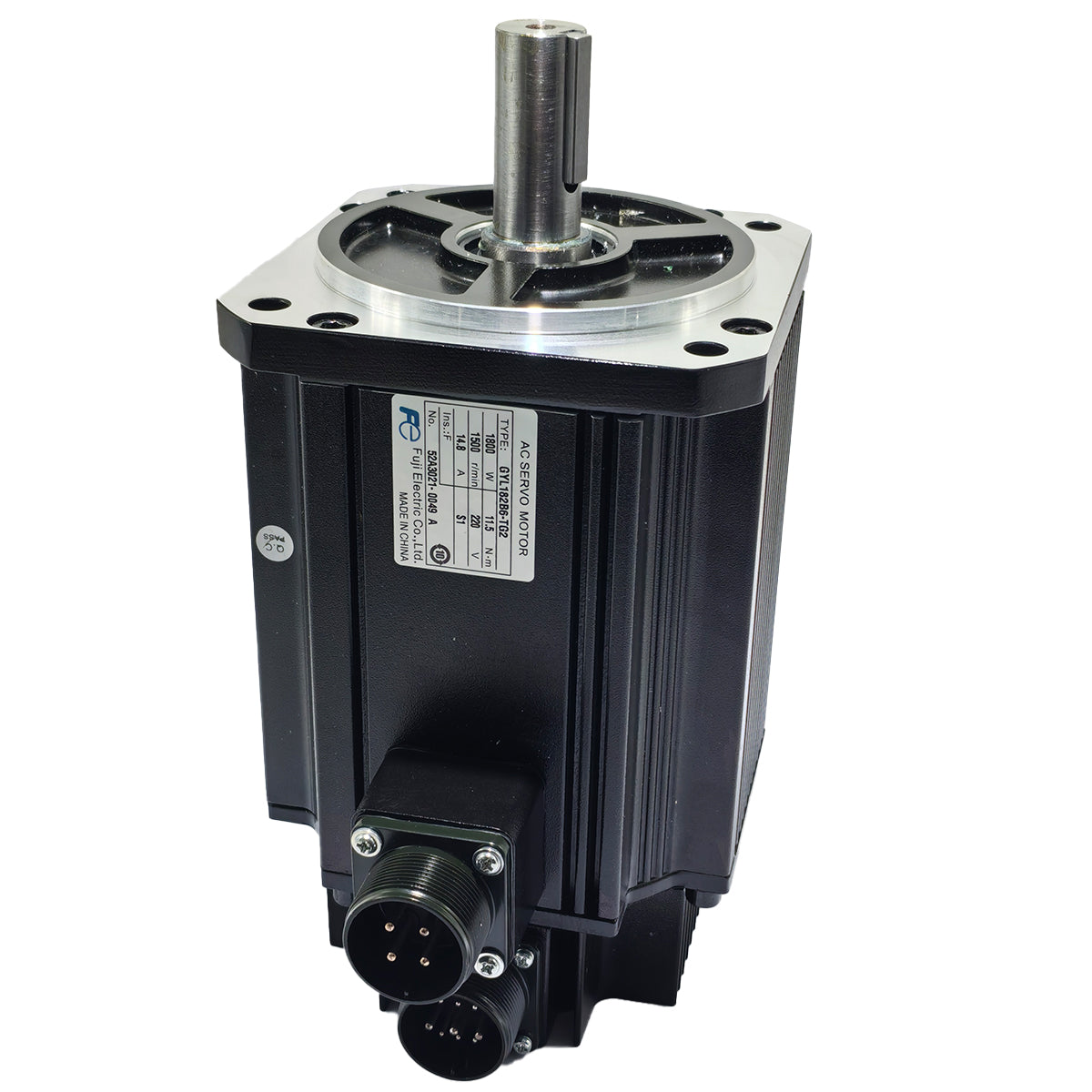

Model: GYL182B6-TG2
Rated power: 1.8 kW; compatible with a three-phase 200 V AC power supply
Equipped with a 17-bit incremental encoder for stable, real-time position signal acquisition
Rated speed: 1,500 rpm; maximum short-term speed: 3,000 rpm
IP65 protection rating; shaft extension end comes standard with a skeleton oil seal
Medium-inertia rotor design, delivering a continuous rated torque of 11.5 N·m
