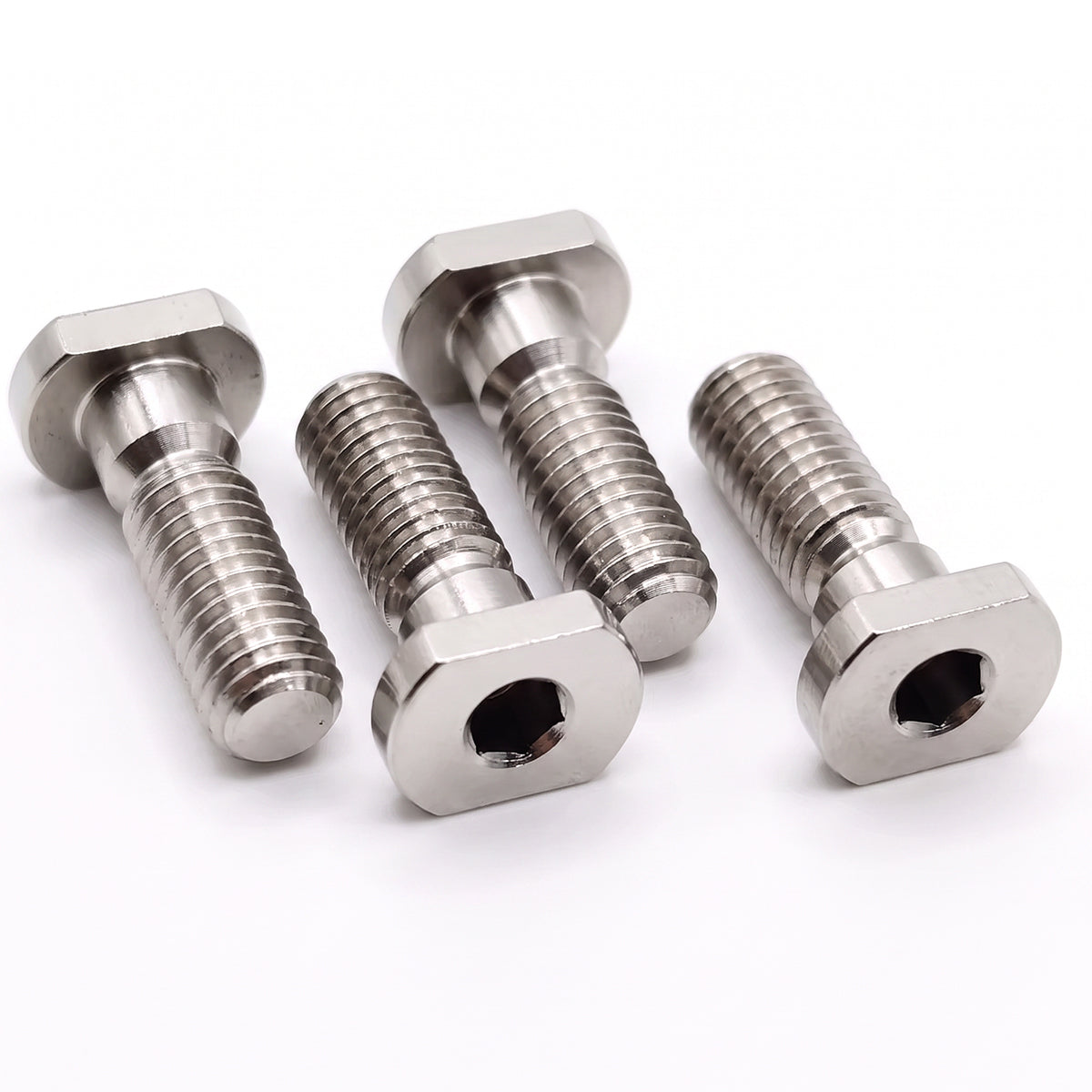

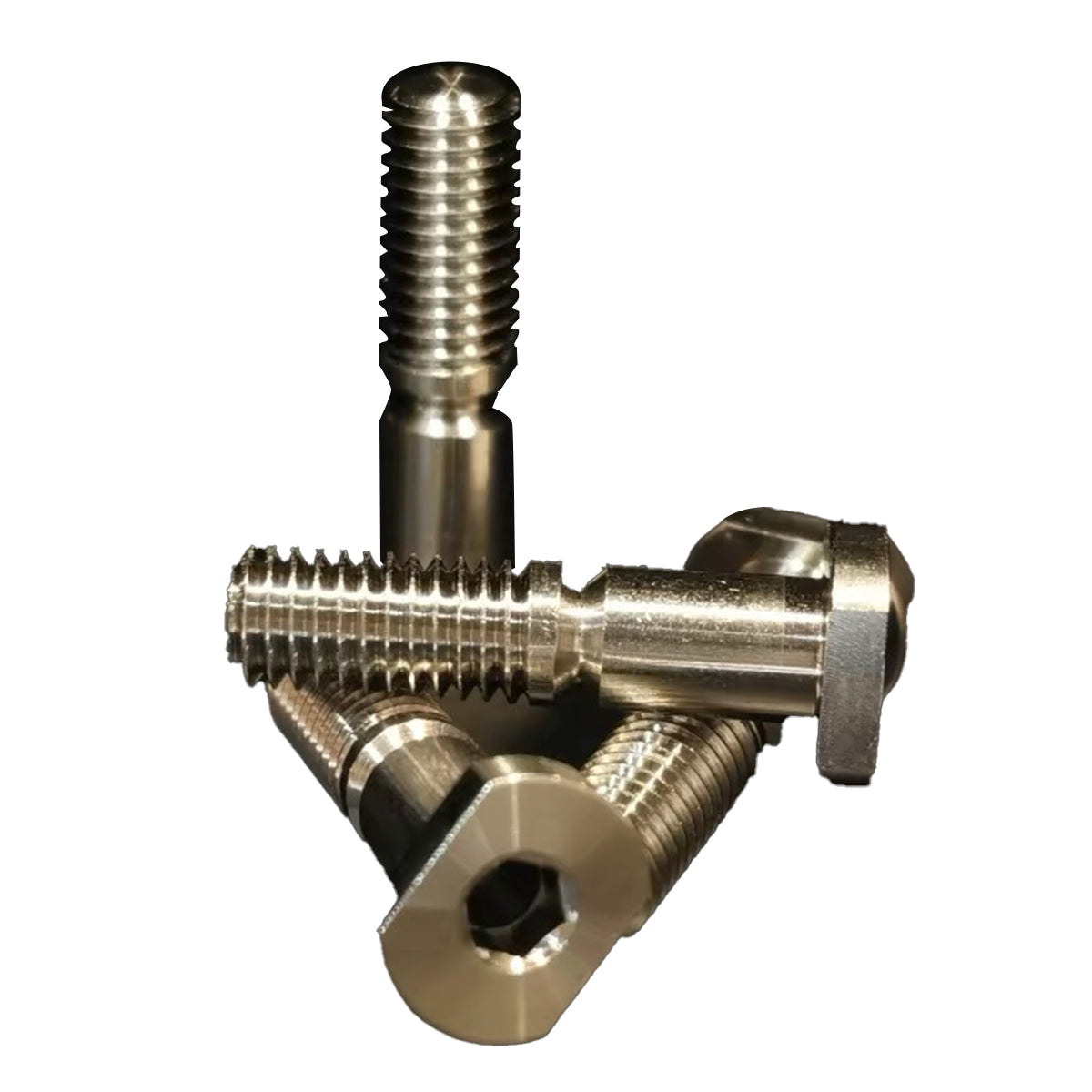

BOCI Original Fiber Anti-Collision Set for BOCI BLT421 Laser Cutting Head

✅ Comprehensive 3D collision protection
✅ Calibration-free, quick reset
✅ Native system-integrated protection
✅ Industrial-grade durable construction
✅ Precise factory-matched components
✅ Reduced maintenance costs

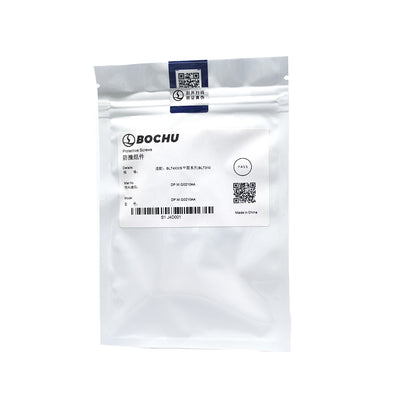

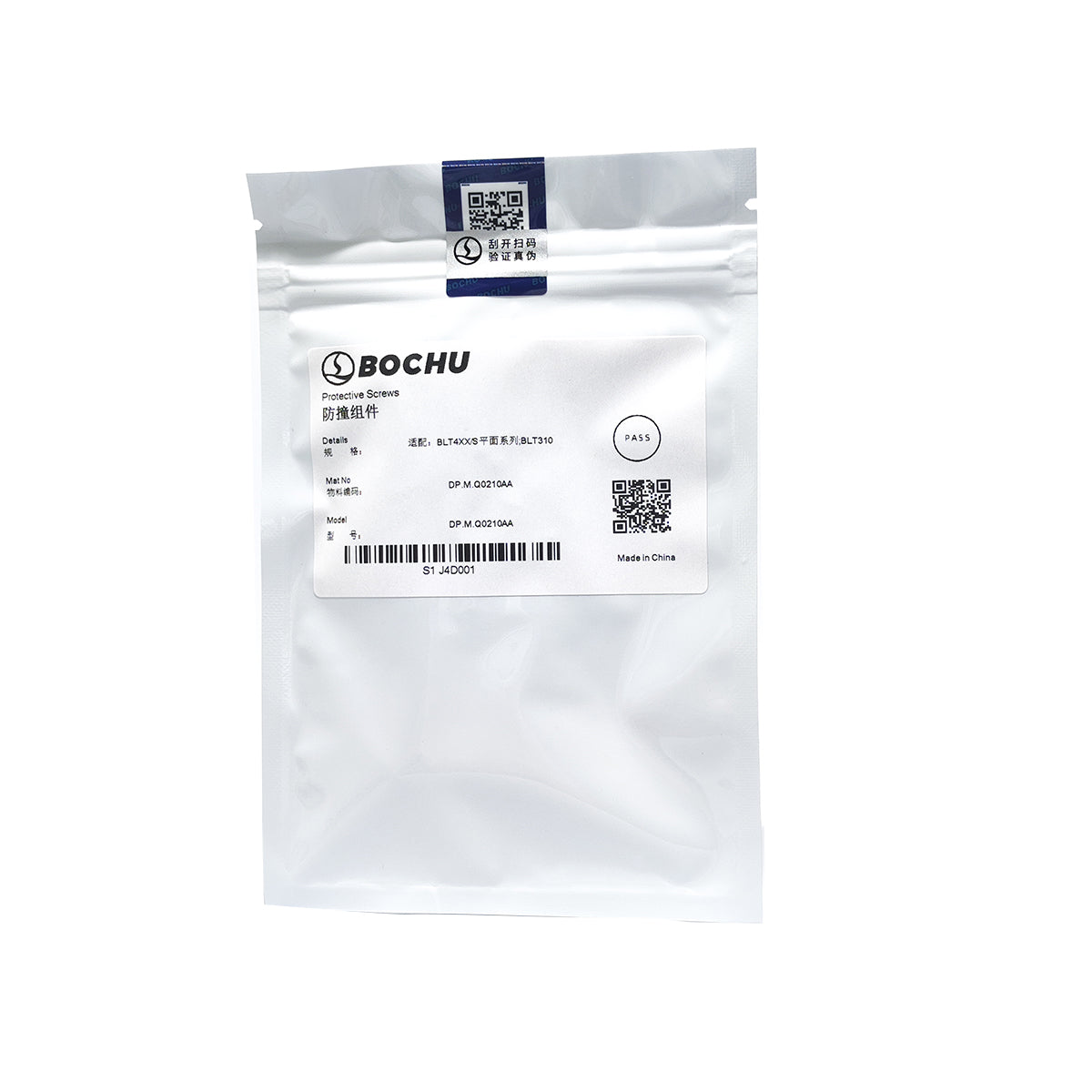

Model: DP.M.Q0210AA

Integrated spring + precision contact-sensing anti-collision mechanism
Three-axis cushioning protection: Z-axis (up/down) and X/Y-axis (lateral) all-around cushioning
Trigger threshold: Standard 10–25 N impact force, factory-calibrated
Reset method: Mechanical automatic rebound; no tools required for reset after minor impacts
Signal Output: 24V high/low-level alarm signal, directly connects to the BCL3766 terminal block input
Operating Temperature: -10°C to +70°C, suitable for high-temperature sheet metal cutting environments
Sealing Rating: IP54, protects internal contacts from dust and spatter erosion
Mounting Thread: Standard BLT4 universal bottom-end mating thread, allows for non-destructive replacement with original equipment

Compatible with BLT310/BLT421/BLT441/BLT461/BLT481/BLT442/BLT462/BLT482/BLT421S

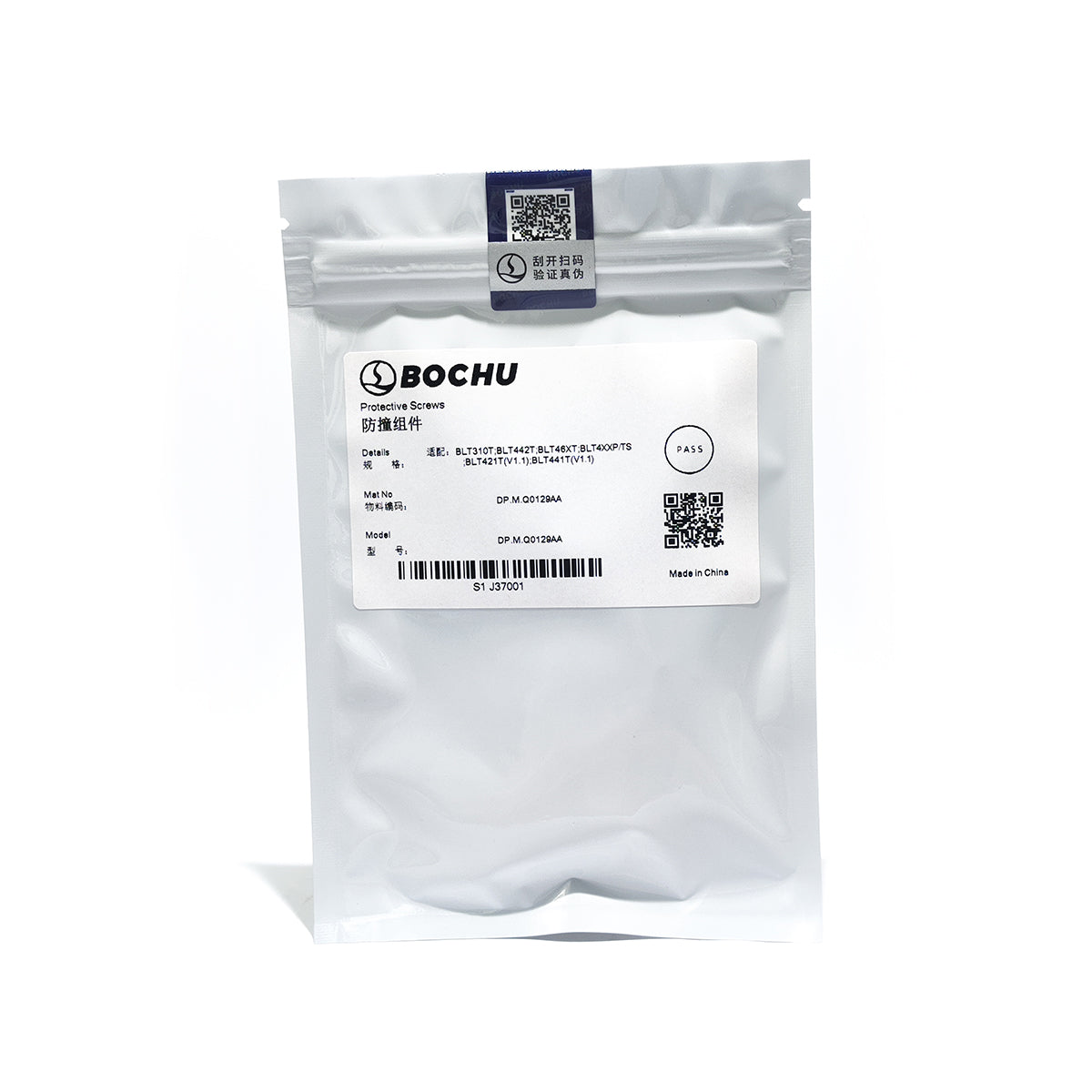

Model: DP.M.Q0129AA

Dual-stage spring cushioning structure provides dual protection: cushioning for light impacts and locking for heavy impacts
Adjustable actuation force: Finely adjustable within the 10–40 N range; freely switch between thin-sheet and thick-sheet operating conditions
High-sensitivity capacitive synchronous sensing with an impact response time of <5 ms—faster than the Q0129AA
Integrated water channel sealing groove, compatible with water-cooled lower-end TRA assemblies
Upgraded waterproof and debris-resistant contacts with IP55 protection, ensuring greater stability in thick-plate, high-temperature splash conditions
Mechanical repeatability accuracy of ±0.02 mm; no offset during rebound, ensuring no impact on punching or small-diameter machining
Signals: Dual independent alarm contacts—one for system emergency stop and one for fault indicator output

Compatible with BLT421T/BLT441T/BLT310T/BLT461T/BLT421TS/BLT462P/BLT482P/BLT442P/BLT4102P/BLT442T/BLT462P
