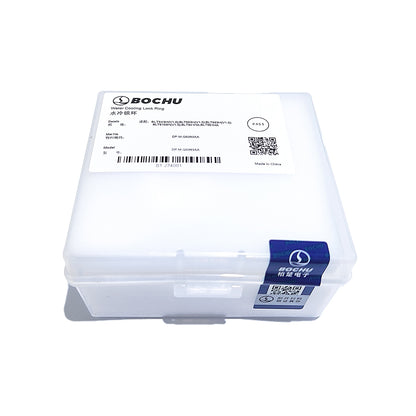

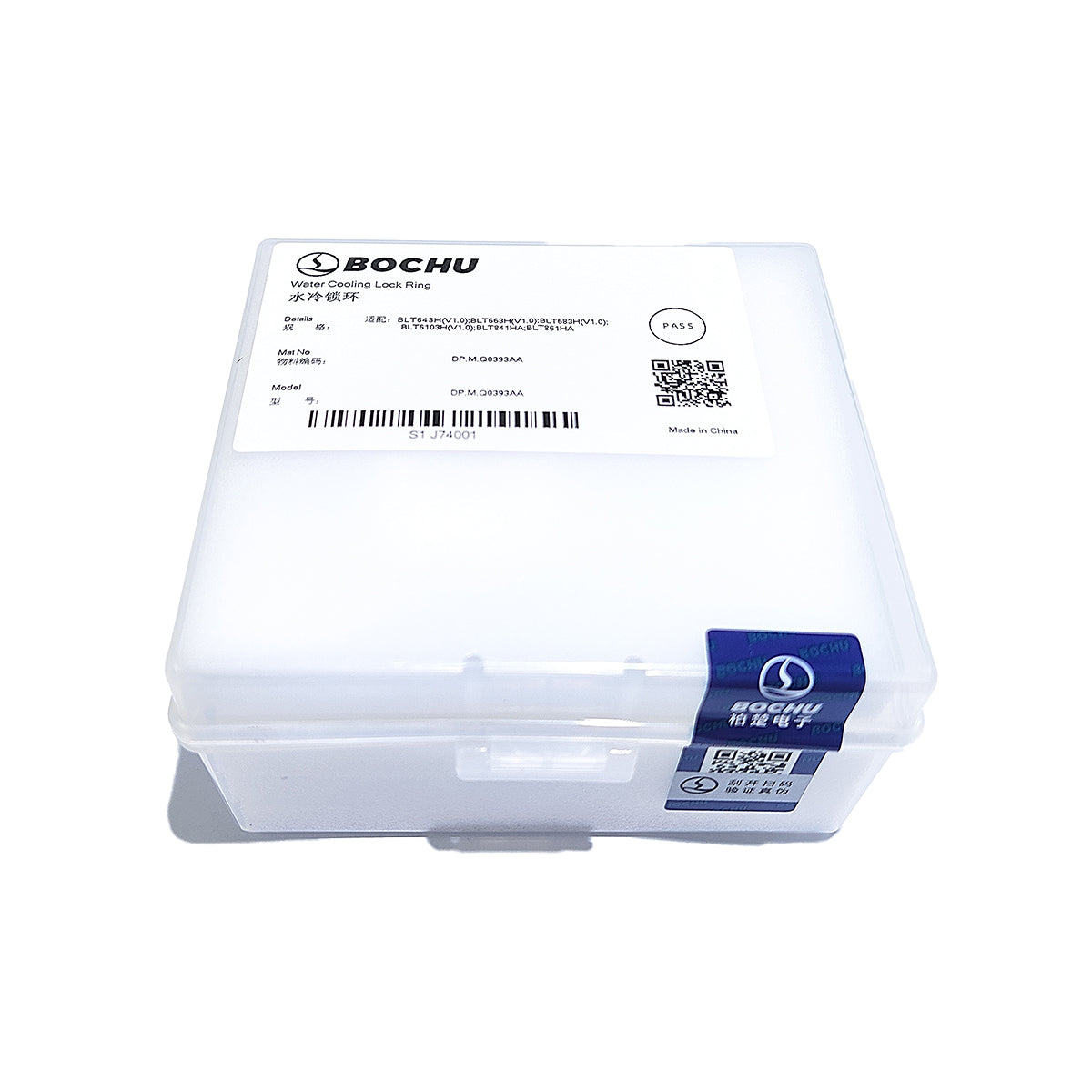

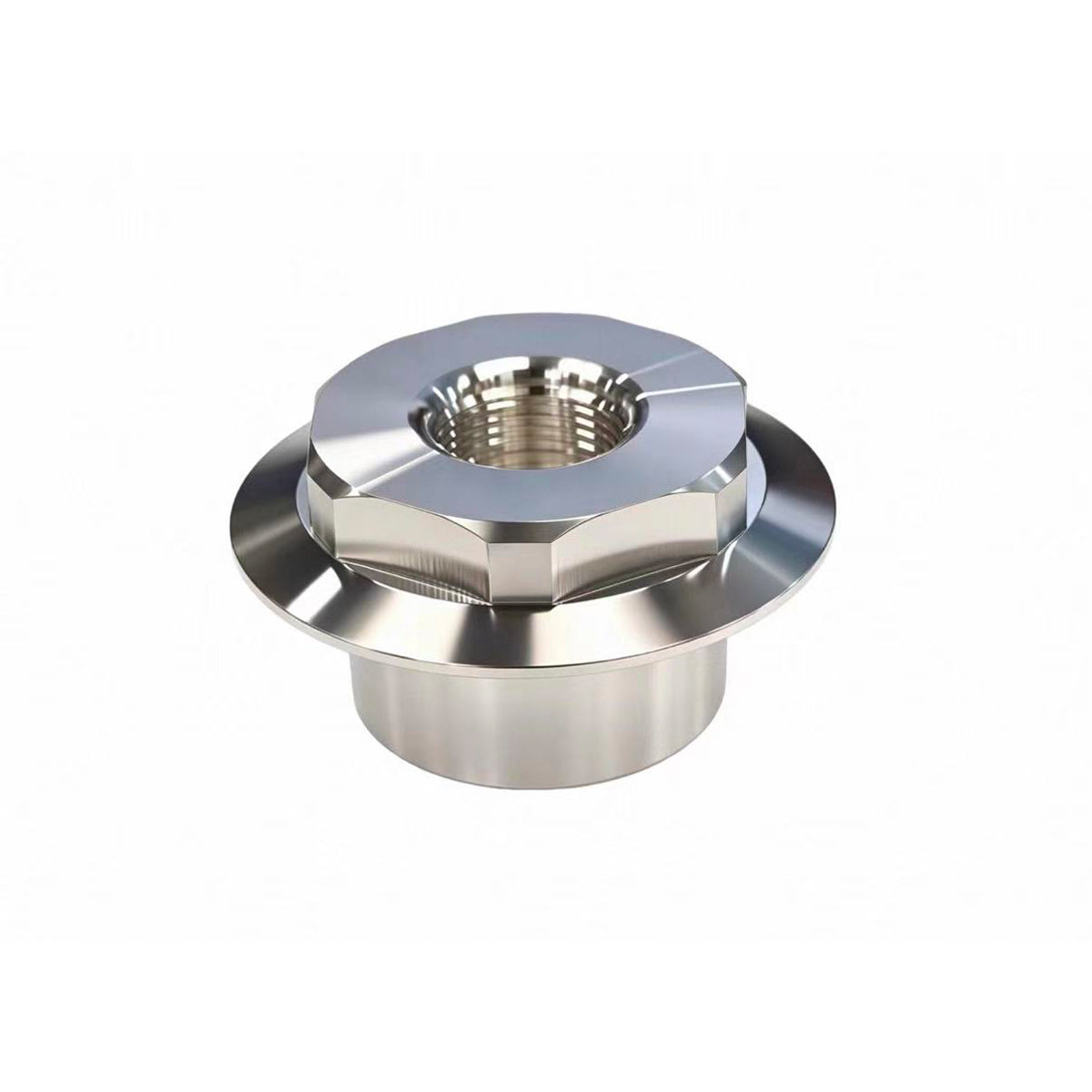

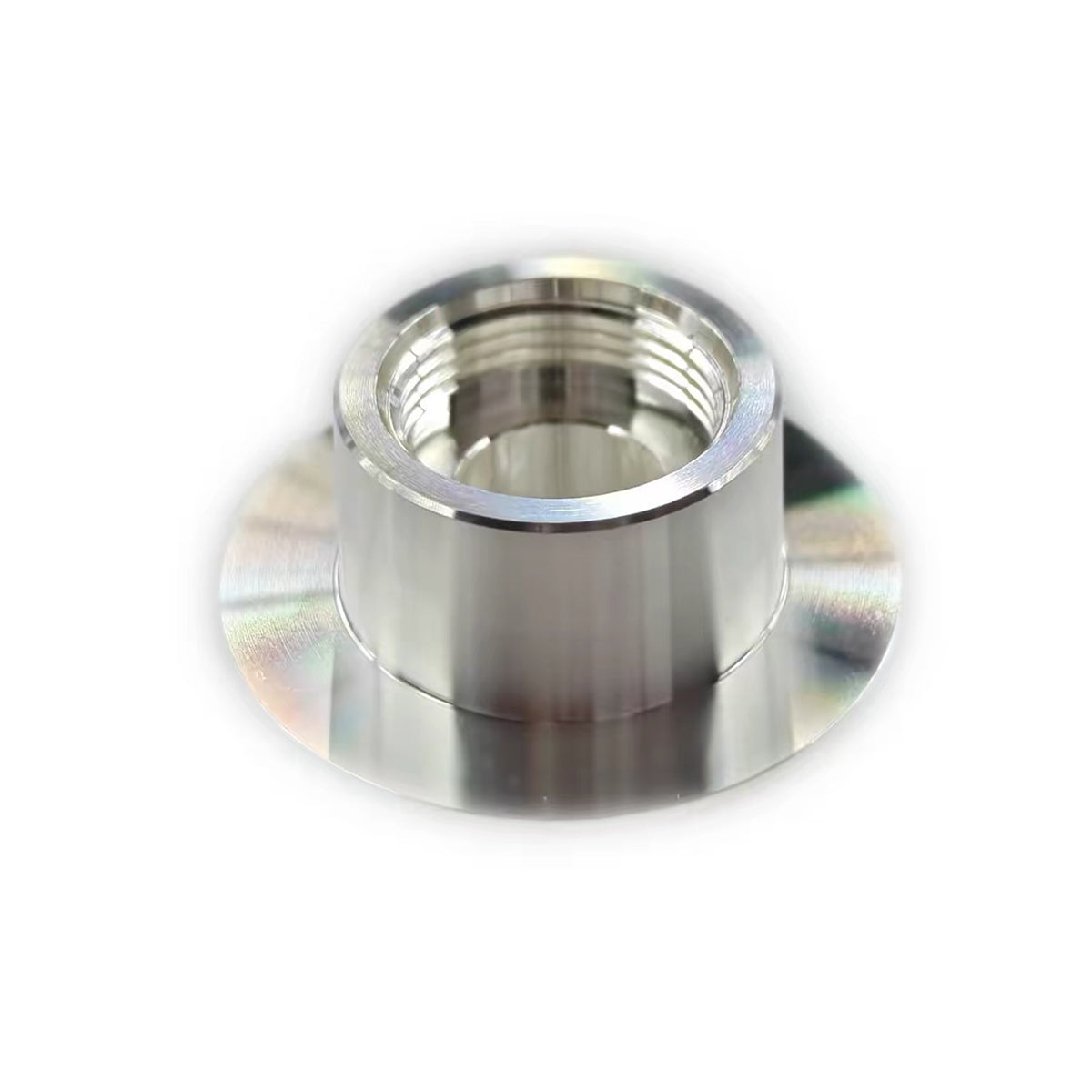

Original BOCI Water-cooled Locking Ring BLT643 DP.M.Q0393AA

✅ Precision locking seal prevents water leakage and lens burnout
M16×1 high-precision fine-pitch thread ensures even force distribution to prevent chipping of the ceramic; the end face presses against the seal ring to provide a zero-leakage high-pressure water cooling system, preventing coolant from corroding the optical lenses and reducing lens wear.
✅ 304 quenched and tempered stainless steel, heat-resistant and distortion-free
Withstands prolonged machining of high-power, thick plates; resists arc and slag corrosion; threads are resistant to stripping and seizing, offering a longer service life than standard carbon steel locking rings.
✅ Non-slip knurled outer ring for quick, tool-free installation and removal
Can be installed or removed by hand; replacing water-cooled ceramic components takes just 5 minutes, reducing production line downtime.
✅ Original 1:1 replacement, ensuring coaxial stability and fewer alerts
Compatible with the original DY.C.A0009AA water-cooled ceramic, with zero dimensional deviation; the ceramic remains level, ensuring reliable contact at the capacitive contacts, reducing nozzle height error alerts, and making it suitable for unmanned automated production lines.
✅ Balanced stress distribution protects the ceramic and extends service life
Pressure is evenly distributed, preventing single-point compression cracks; maintains a constant water-cooling temperature, reducing thermal shock to the ceramic, and decreasing ceramic replacement frequency by 2–3 times

Specifications:

Internal Thread Specifications:    M16×1 Standard Fine-Pitch Thread
Body Material:    High-Strength 304 Stainless Steel, Quenched and Tempered
Surface Finish:    Precision Turning + Matte, Non-Slip Knurled Outer Ring
Matching Seal:    Original Fluorocarbon O-ring compatible with ceramic body
Dimensions:    Outer diameter 62 mm, thickness 12.5 mm, inner bore diameter 42 mm
Temperature Resistance:    Continuous water cooling up to 80°C, short-term temperature resistance up to 300°C
Machining Tolerances:    Thread precision 6H, end face flatness ≤0.02 mm, concentricity ≤0.03 mm

Compatible Ceramic Body: DY.C.A0009AA (M16×1 Water-Cooled Ceramic)
Compatible Cutting Head:  Bochi BOCI BLT643H High-Power Water-Cooled Cutting Head
