✅ High-resolution 23-bit optical encoder provides precise position feedback, ensuring repeatable positioning accuracy
✅ Medium-inertia rotor design delivers balanced start-stop response, making it suitable for high-frequency reciprocating motion in small- and medium-sized slides
✅ Stable short-term overload performance, capable of withstanding shock loads caused by frequent equipment start-stops
✅ Integrated aviation-standard connector ensures secure wiring and facilitates on-site installation, removal, and maintenance
✅ Reliable, fully sealed protection effectively resists corrosion from industrial environments such as workshop dust and water mist
Model: BEH18MF0733CF5C
Rated power: 750 W; compatible with single-phase 220 V AC power systems
Equipped with a 23-bit optical multi-turn absolute encoder
Rated speed: 3,000 rpm; supports up to 350% short-term peak overload
Protection rating: IP65; integrated sealed structure for the housing and shaft extension
Built-in electromagnetic holding brake; locks the output shaft when stopped to prevent the load from slipping
Model: BEH18MR4413CA6D
Rated power: 4.4 kW; compatible with a three-phase AC 380 V power supply system
Equipped with a 23-bit optical multi-turn absolute encoder
Rated speed: 1,500 rpm; supports a maximum short-term peak overload output of 350%
Overall IP65 protection rating; the shaft extension features an integrated sealing design
Large-sized rotor design, with a continuous rated output torque exceeding that of 130 flange-mounted low-to-medium-power models

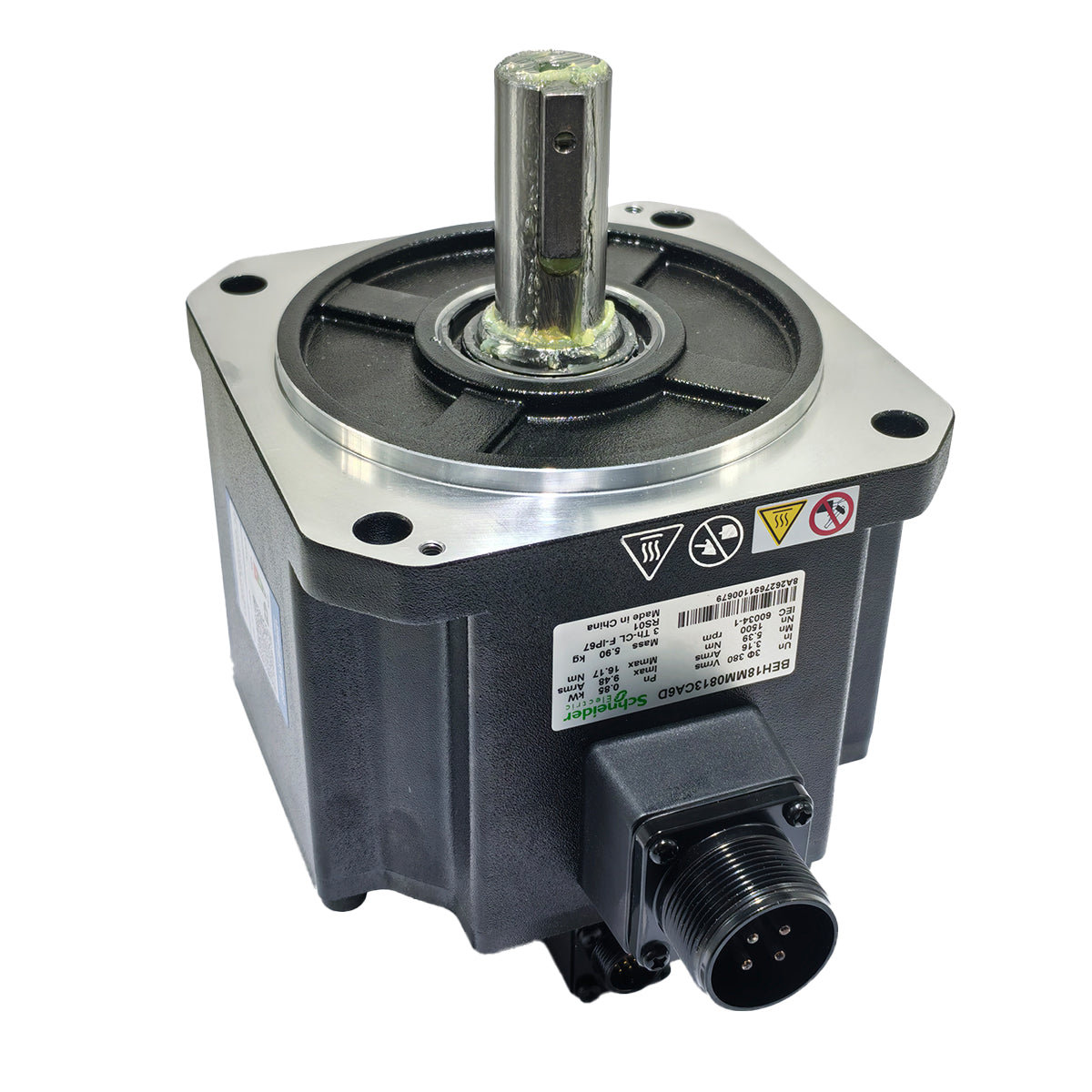

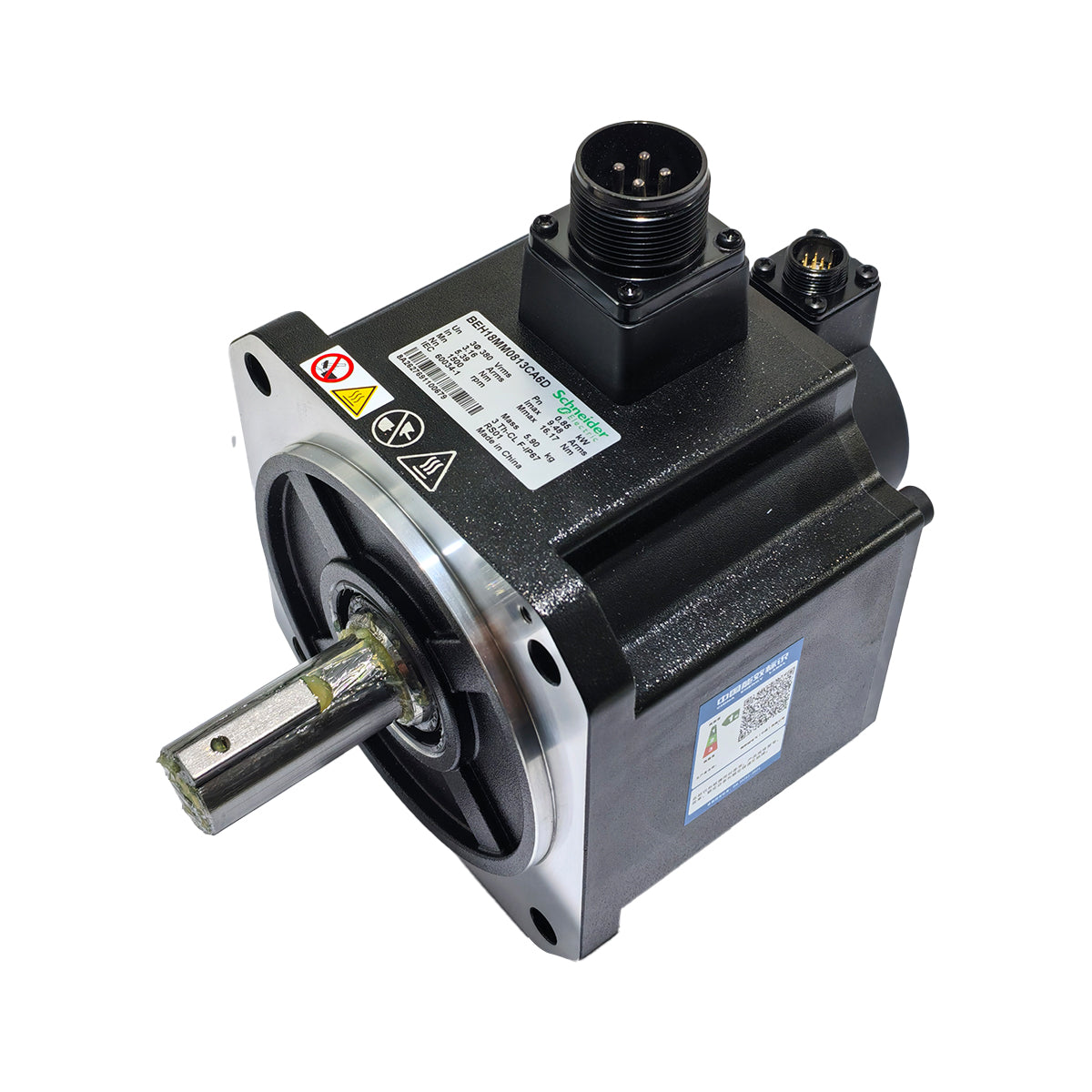

Model: BEH18MM0813CA6D
Rated power: 850 W; compatible with three-phase 380 V AC power systems
Equipped with a 17-bit multi-turn magnetic absolute encoder
Rated speed: 1,500 rpm; supports short-term peak overloads of up to 350%
Protection rating: IP65; integrated shaft-end sealing design
Medium-inertia rotor configuration; continuous output torque outperforms low-power 80-flange models

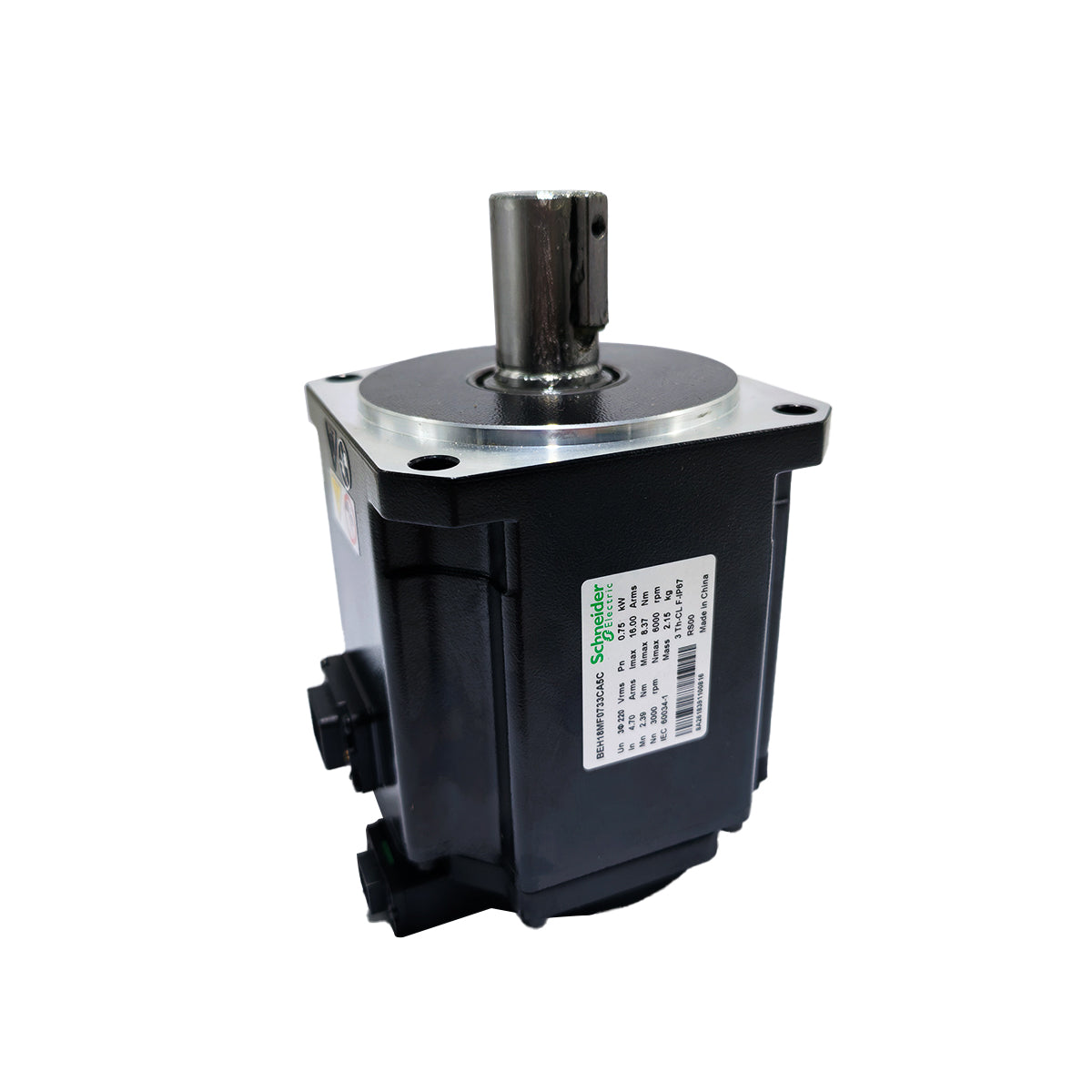

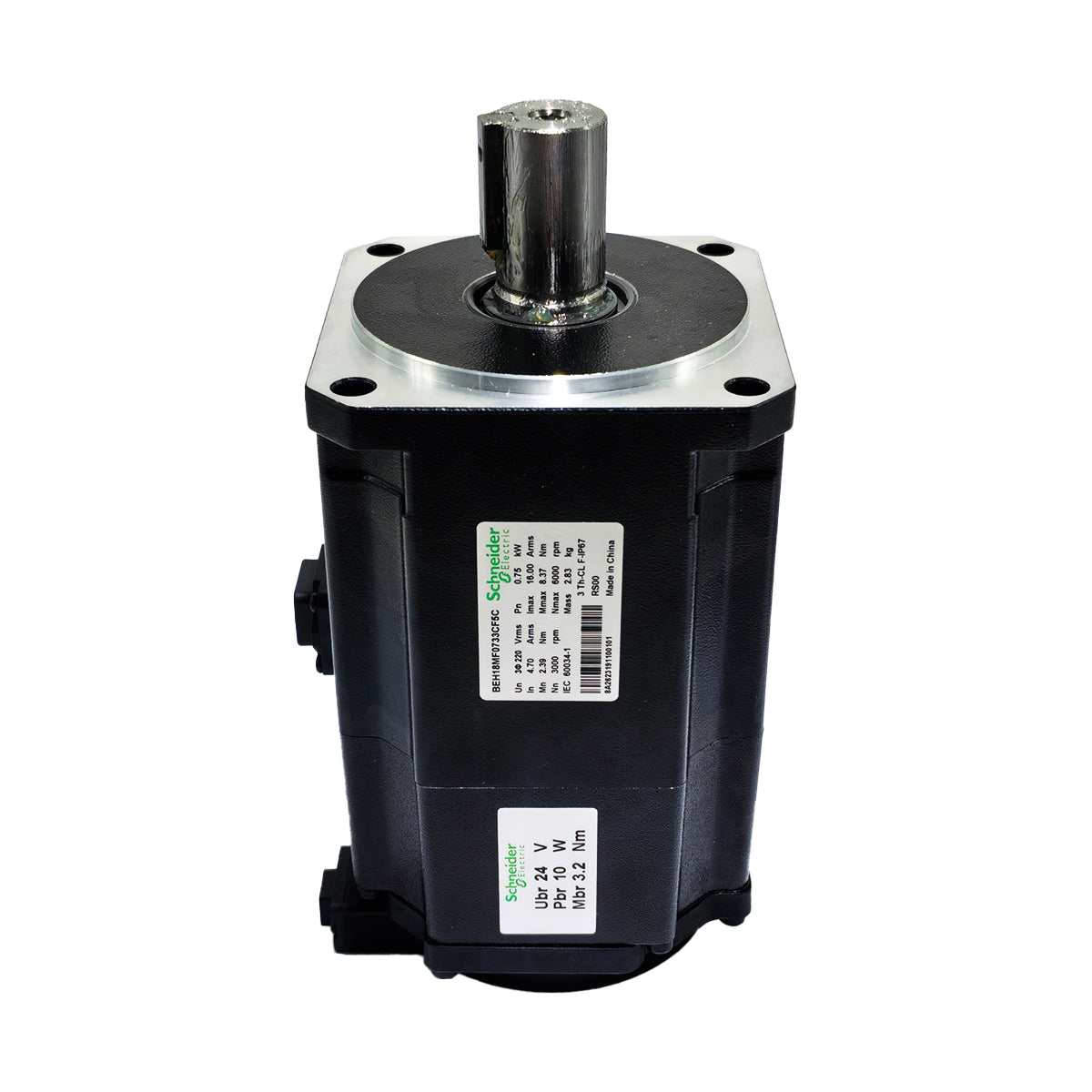

Model: BEH18MF0733CA5C
Rated power: 750 W; compatible with single-phase 220 V AC power systems
Equipped with a 23-bit optical multi-turn absolute encoder
Rated speed: 3,000 rpm; maximum short-term speed: 6,000 rpm
IP65 protection rating, with an integrated, sealed housing design
Rated continuous output torque: 2.39 N·m; supports 350% short-term peak overloa

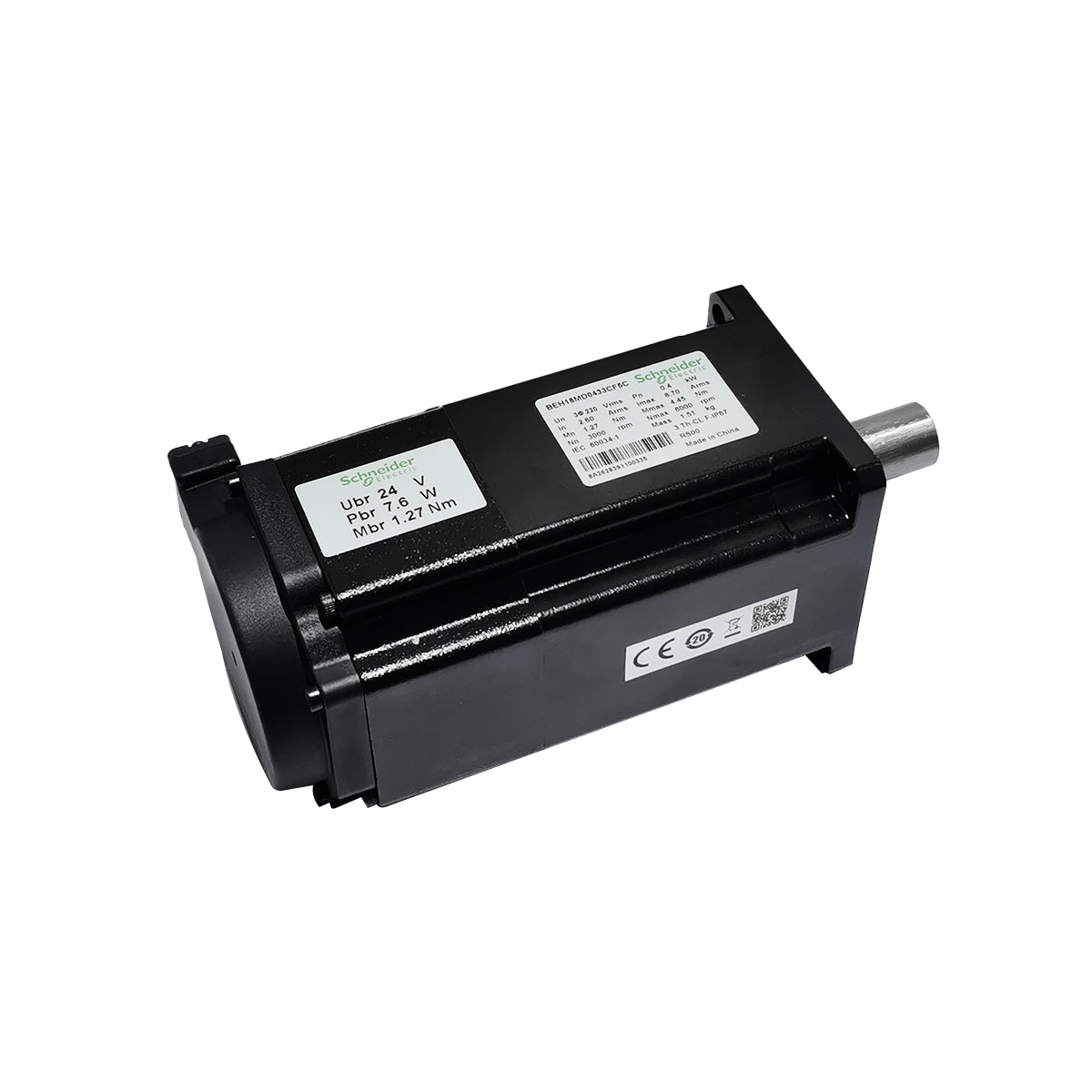

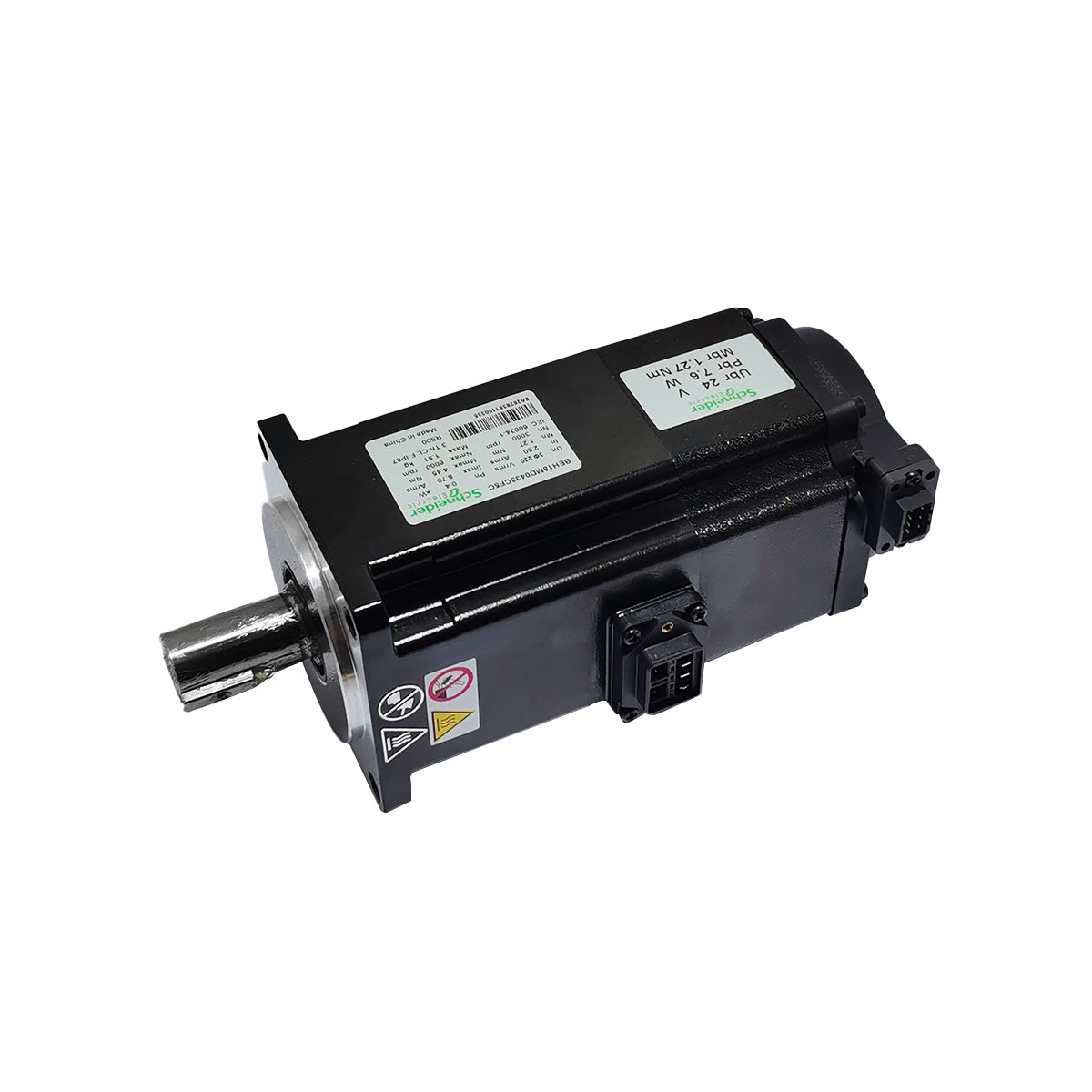

Model: BEH18MD0433CF5C
Rated power: 400 W; compatible with single-phase 220 V AC power systems
Equipped with a 23-bit multi-turn optical absolute encoder
Rated speed: 3,000 rpm; supports up to 350% short-term peak overload
Protection rating: IP65; the housing and shaft extension feature an integrated sealing design
Built-in electromagnetic holding brake locks the output shaft to prevent slippage when the motor is stopped

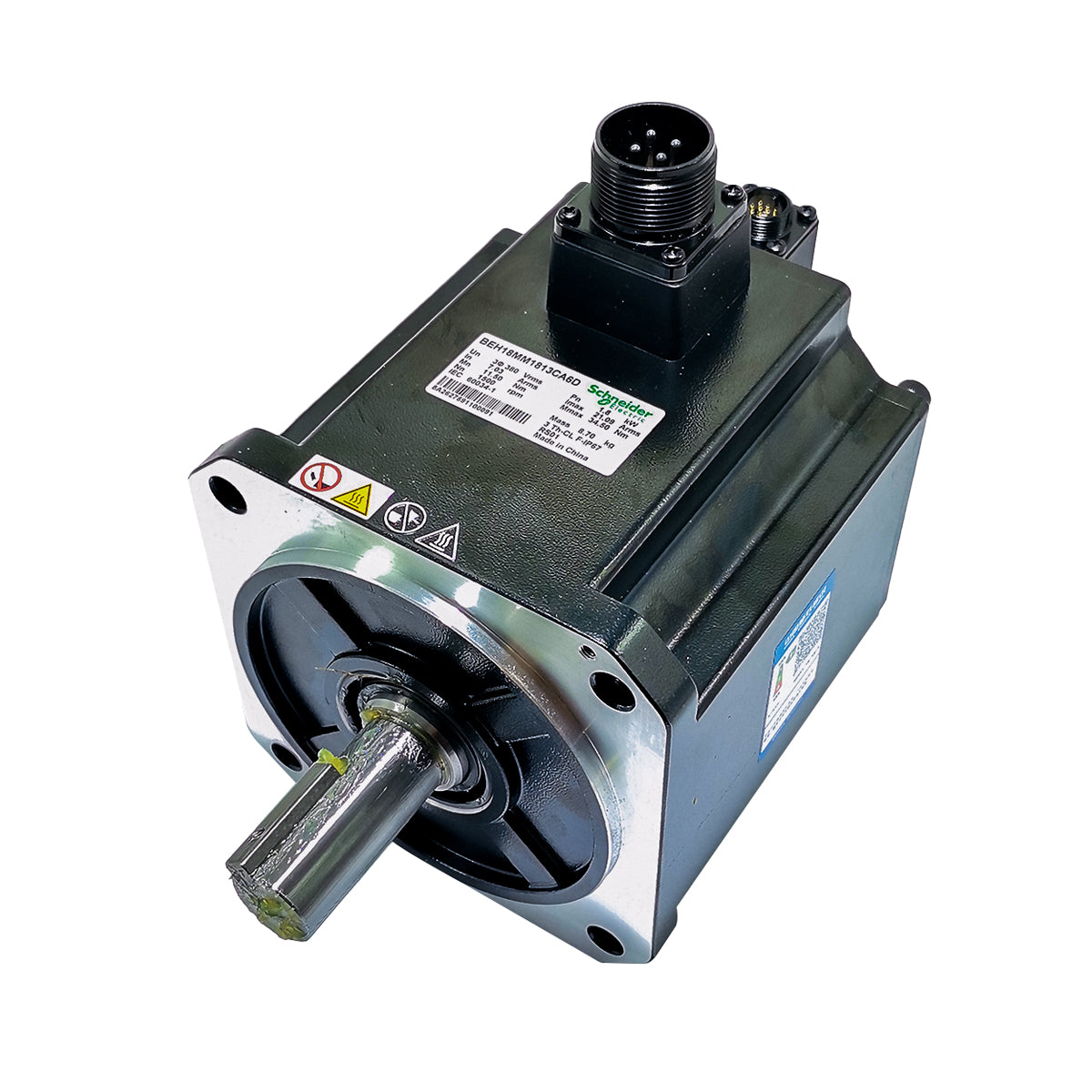

Model: BEH18MM1813CA6D
Rated power: 1.8 kW; compatible with three-phase 380 V power supply
Equipped with a 23-bit multi-turn optical absolute encoder
Rated speed: 1,500 rpm; supports short-term peak overloads of up to 350%
Protection rating: IP65; integrated sealed structure between the spindle and the machine body
Medium-inertia rotor design; continuous torque output exceeds that of 1.3 kW models

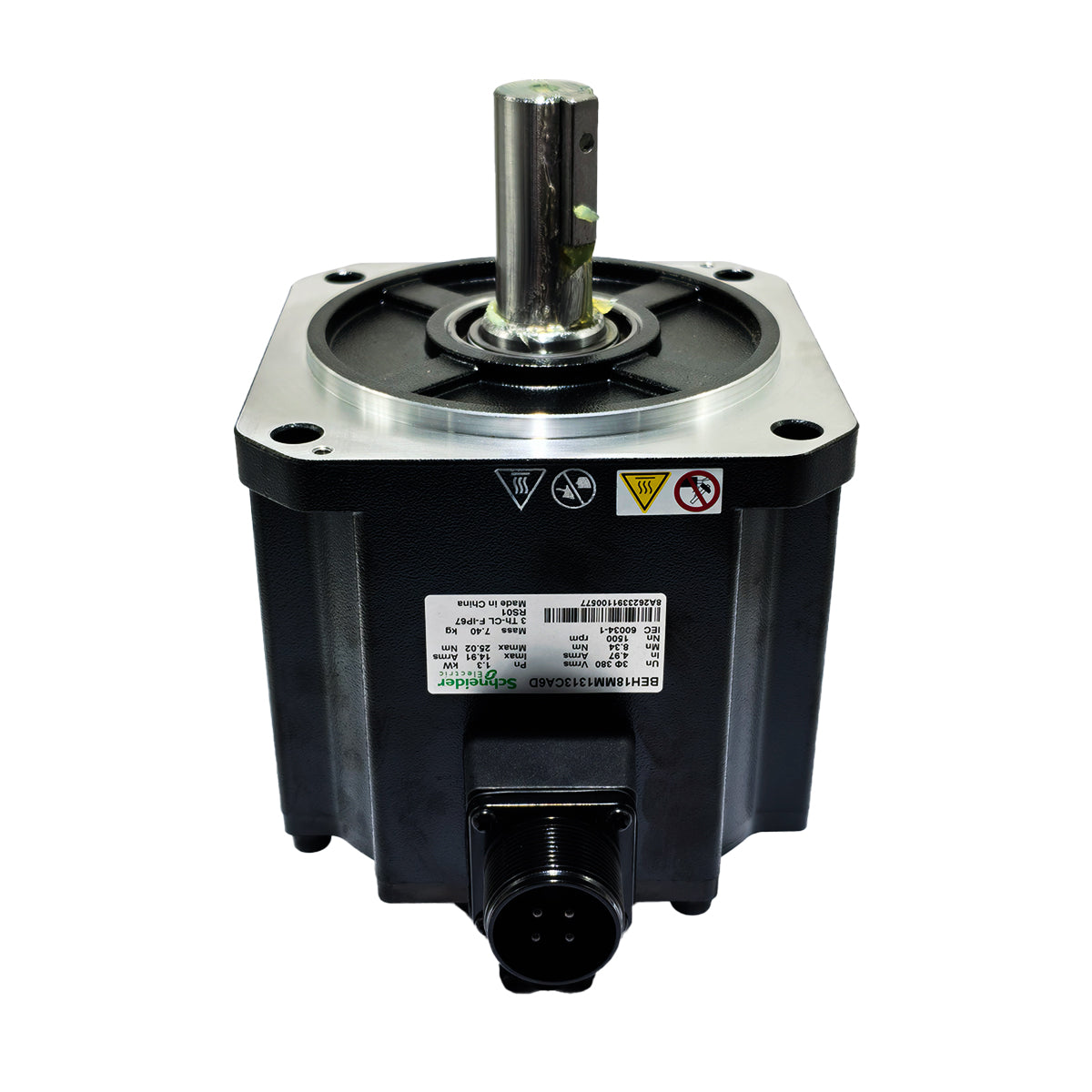

Model: BEH18MM1313CA6D
Rated power: 1.3 kW; compatible with 1.5 kW power ratings within the same platform
Power supply specifications: Three-phase 380 V AC
Built-in 23-bit multi-turn optical absolute encoder
Rated speed: 1,500 rpm; supports short-term peak overload output
Protection rating: IP65; suitable for dusty industrial workshop environments
