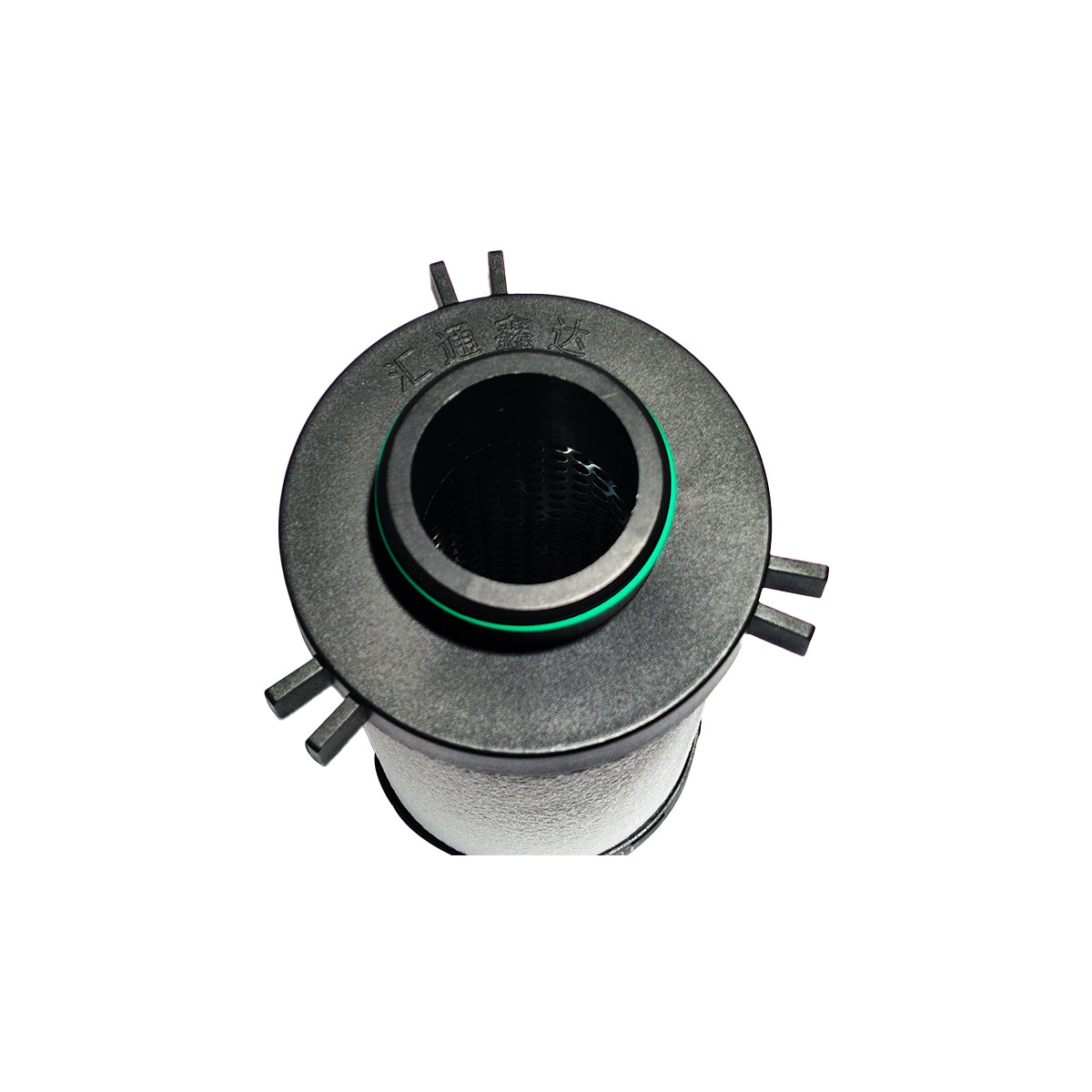

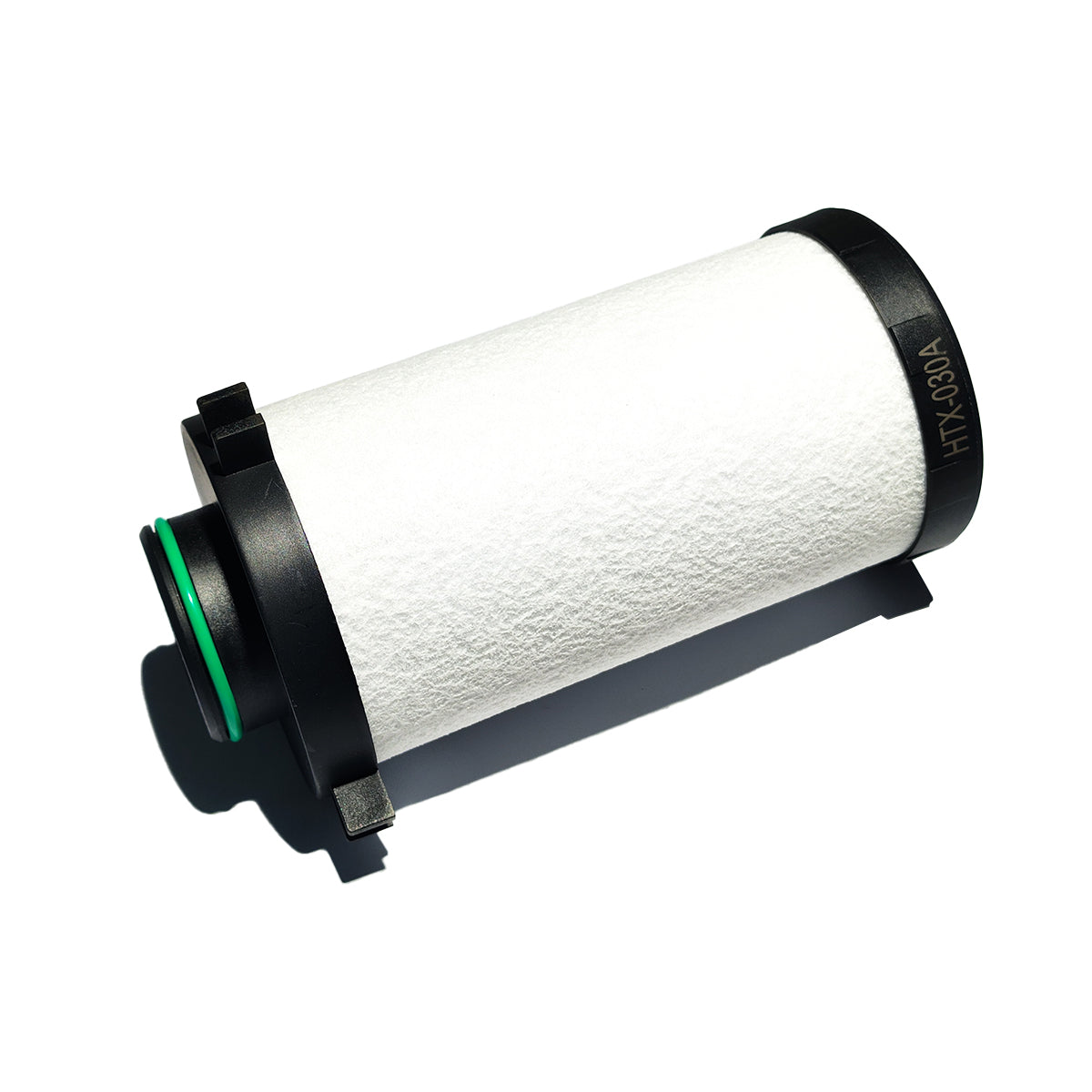

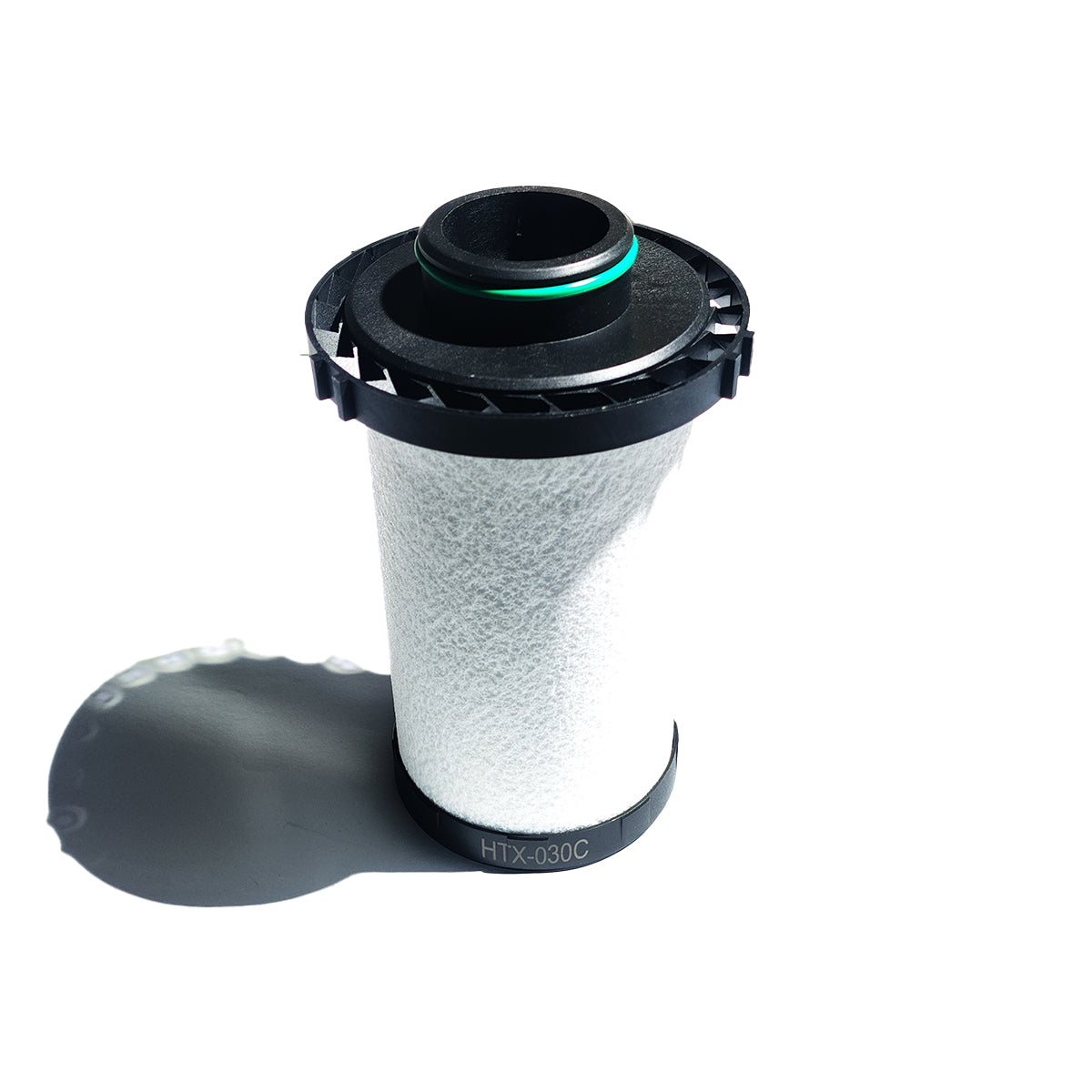

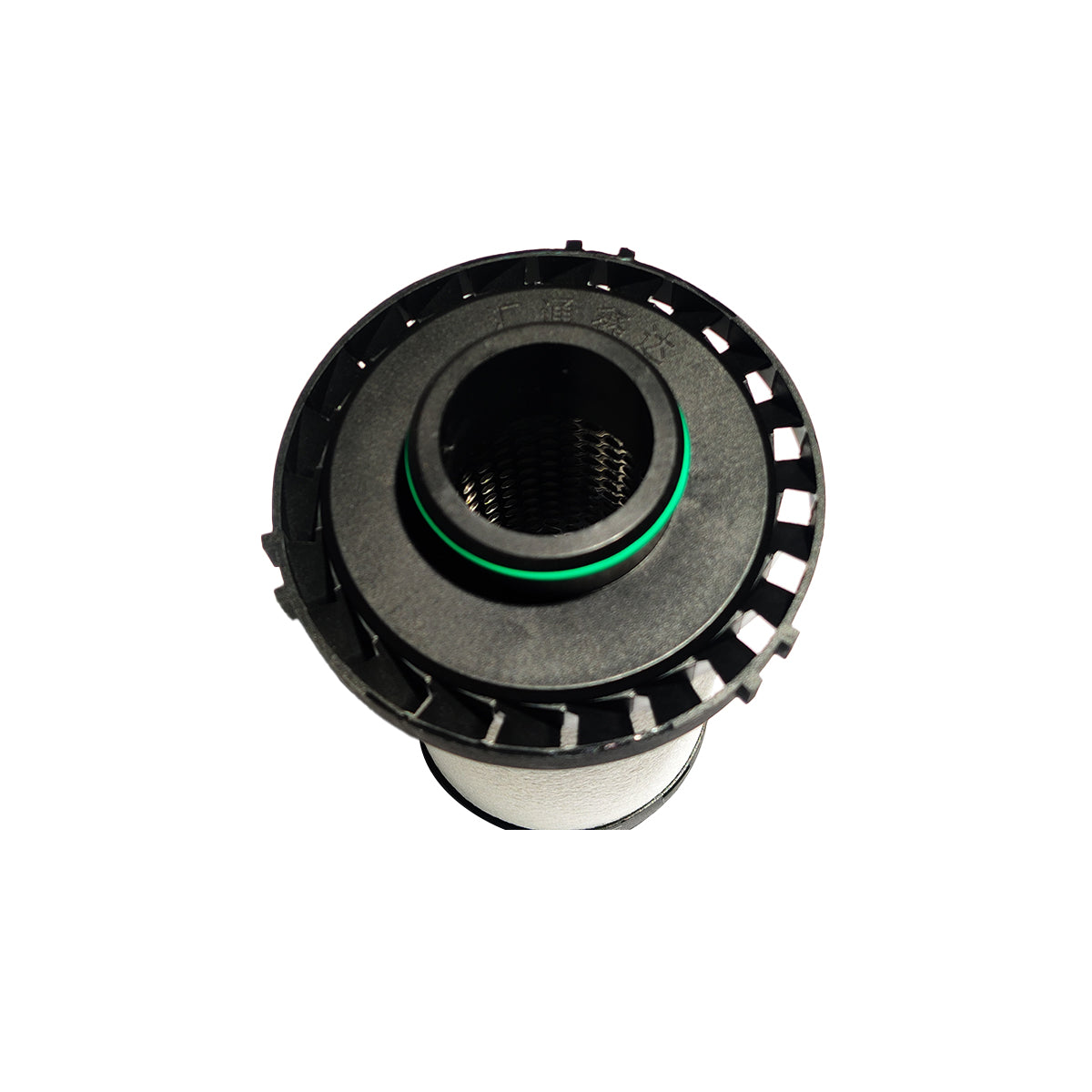

HUITONG XINDA Precision Filter Cartridges for Screw-Type Air Compressor 030C/T/A/X/F/FF

✅ The complete set of 030 Series precision filter elements is perfectly compatible with the Huitong Xinda XV22/16Q (22 kW–16 bar) high-pressure screw air compressor, specifically designed for purifying air used in laser cutting
✅ Six-stage gradient filtration (C/T/A/X/F/FF), ranging from coarse filtration to deep oil removal using activated carbon, meets the requirements of various cleanliness levels
✅Supports 16 bar high-pressure operating conditions; composite fiberglass filter media ensures the filter layer resists bulging and is resistant to powdering and flaking, preventing secondary contamination
✅Low pressure drop with minimal airflow loss; multiple seals prevent gas bypass leakage
✅Effectively removes water, dust, oil mist, and oil vapor to protect laser cutting heads, lenses, and electrical proportional valves, reducing equipment failures and downtime
✅ Standard 030 housing—a universal replacement part—allows for easy installation and removal, facilitating on-site maintenance and replacement

Specifications:

Rated Flow Rate: 3.0 m³/min
Maximum Operating Pressure: 16 bar (compatible with XV22‑16Q high-pressure models)
Operating temperature: 1.5–65°C
Connection specifications: 030 standard filter housing
Design life: 2,000–4,000 h (depending on operating conditions)
Filter media: Gradient glass fiber filter layer, rubber sealing gasket; FF with activated carbon adsorption layer

Compatible with XV22/16Q, XV22/16Y, Screw Air Compressor, 22 kW, 16 bar pressure rating
