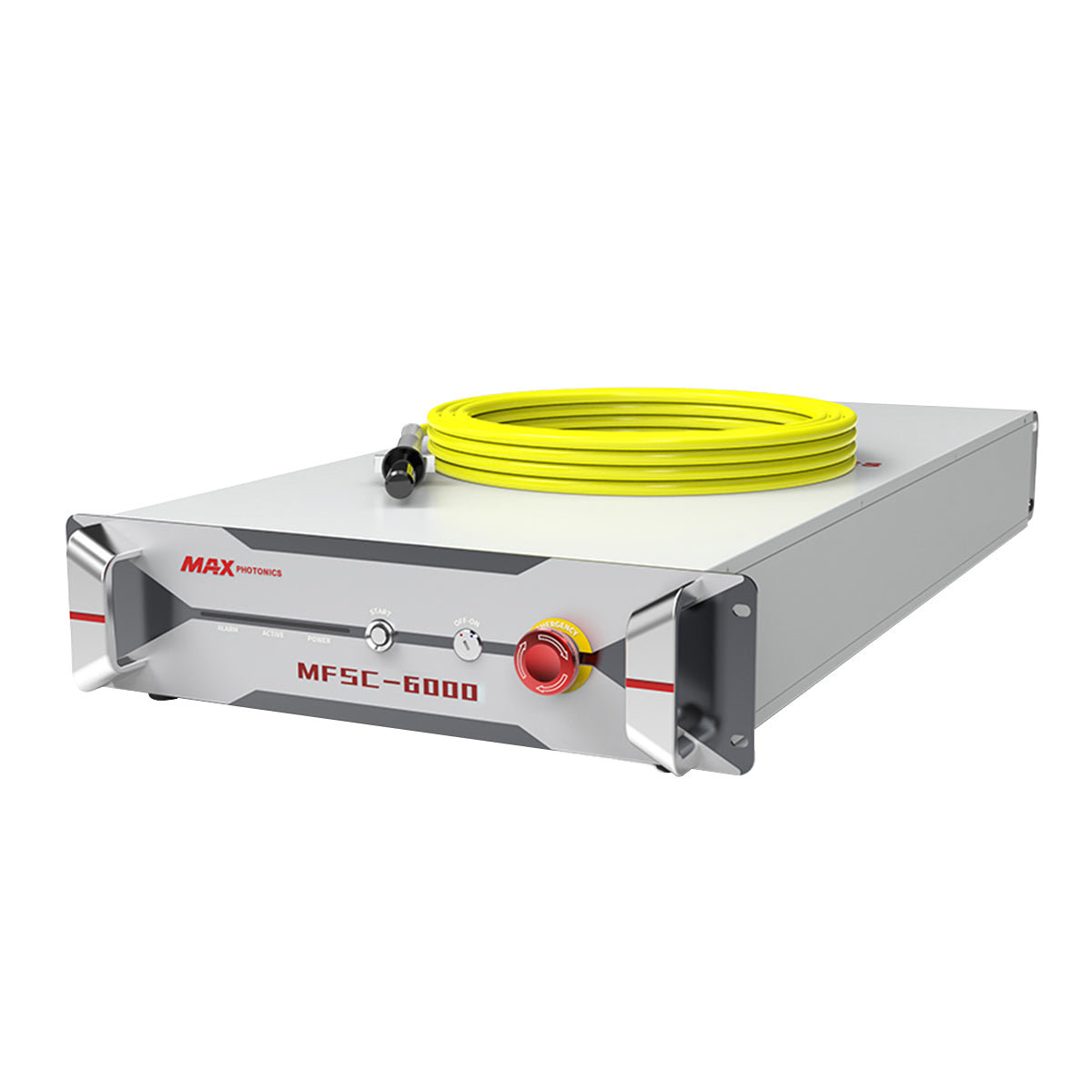

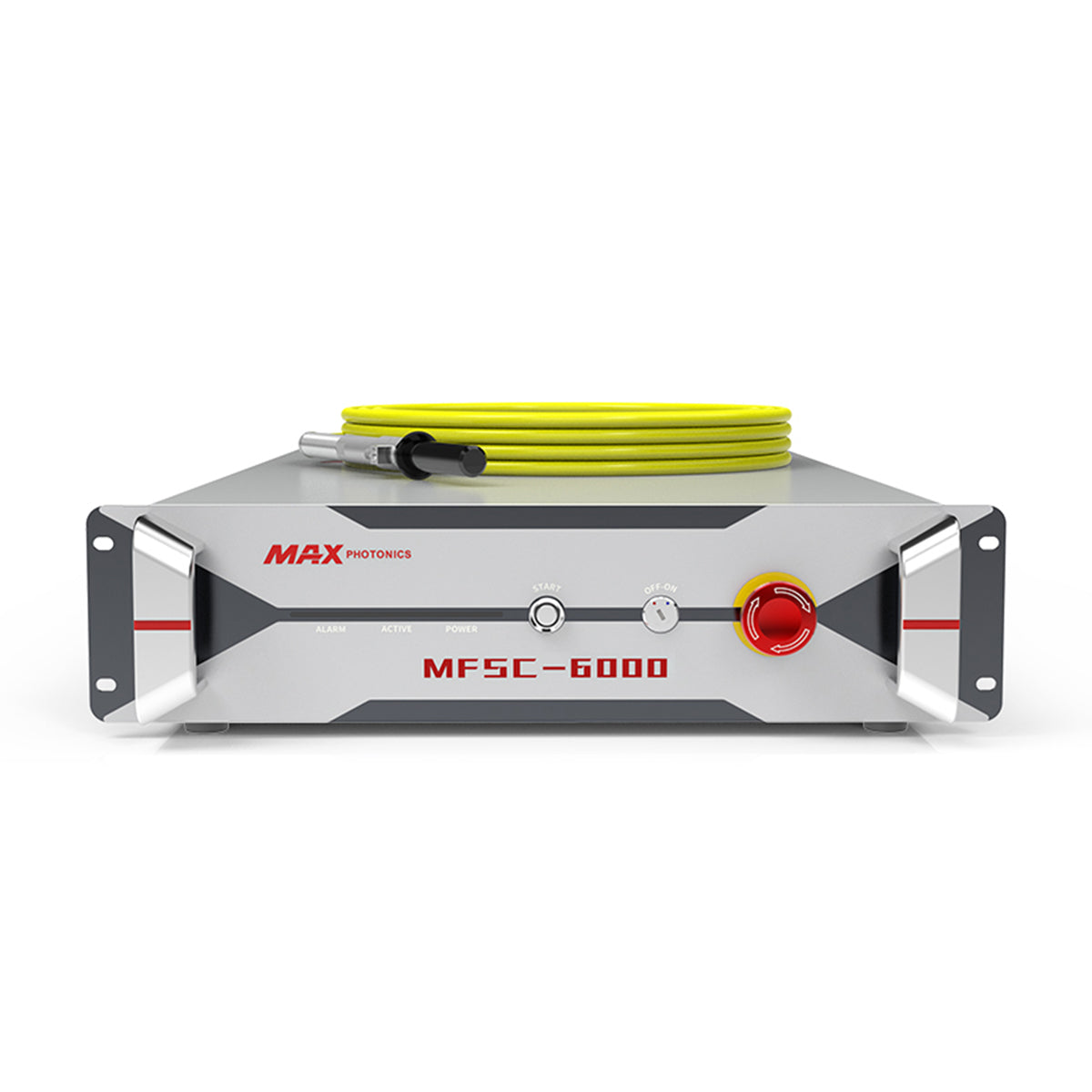

6000W-MAX Photonics High Power MFSC-6000C Fiber Laser Source

✅ Genuine MAX  6000W single‑module, CE certified for medium‑thick plate production.
✅ ±1% short‑term power stability, reliable performance for long‑time thick‑plate cutting.
✅ Optimized beam quality, powerful thick‑plate piercing & clean cutting surface.
✅ ≥40% electro‑optical efficiency, lower power consumption under heavy‑duty workload.
✅ 5kHz modulation function, compatible for cutting, welding and cladding multi‑process.
✅ Strong anti‑reflection protection, maintenance‑free for 24‑hour mass‑production.

Model: MFSC-6000W QBH

Rated Output Power: 6000 W
Center Wavelength: 1080 ± 10 nm
Power Stability: Short-term ±1%, Long-term ±2%
Maximum Modulation Frequency: 5 kHz
Beam Quality (BPP): 2.2–2.8 mm·mrad (50 μm, QBH)
Output Fiber Core Diameter: 50 μm
Red Light Indicator: 200 μW
Output Connector: Standard QBH
Fiber Cable Length: 20 m
Electrical Controls
Power Supply: 380–400 V ±10%, three-phase, 50/60 Hz
Power Adjustment: 10–100%, continuously adjustable
Control Interfaces: RS232, AD (analog), Ethernet
Electro-Optical Conversion Efficiency: ≥40%

Model: MFSC-6000W G5

Rated Output Power: 6000 W
Center Wavelength: 1080 ± 10 nm
Power Stability: ±1% (short-term), ±2% (long-term)
Maximum Modulation Frequency: 5 kHz
Output Fiber Core Diameter: 50 μm
Red Indicator: 200 μW
Output Connector: G5
Fiber Cable Length: 20 m
Electrical Controls
Power Supply: 380–400 V ±10%, three-phase 50/60 Hz
Power Adjustment: 10–100%, continuously adjustable
Control Interfaces: RS232, AD (analog), Ethernet
Electro-optical Conversion Efficiency: ≥40%

Compatible with Medium- to High-Power Flat-Bed Cutting Machines, Integrated Sheet-and-Tube Laser Cutting Machines, Robotic Cutting Workstations
